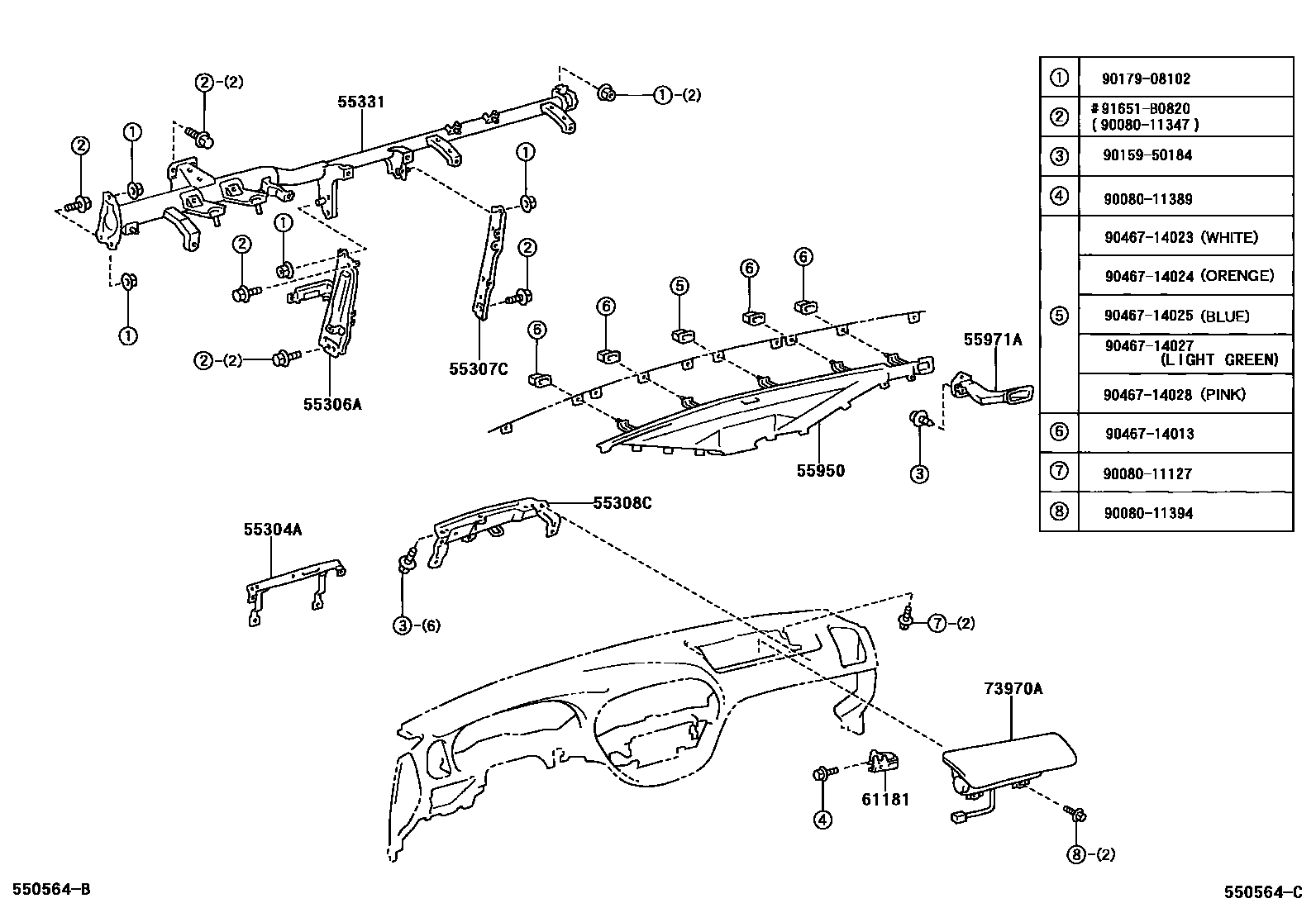

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1

55304ASTAY SUB-ASSY, INSTRUMENT PANEL, CENTER

main55304-0C010iUCK30,40,VCK30,40199902-200208

main55304-0C020iGSK30,UCK3#,4#200208-200408

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0C010iUCK30,40,VCK30,40199902-200008

sub55306-0C011

main55306-0C011iUCK30,40,VCK30,40200008-200408

main55306-0C021iUCK31,41200310-200408

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0C010iUCK30,40,VCK30,40199902-200408

main55307-0C020iUCK31,41200310-200408

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-0C010iUCK30,40,VCK30,40199902-200208

main55308-0C011iUCK3#,4#,VCK30,40200208-200408

main55308-0C012iGSK30,UCK3#,4#200408

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0C010iUCK30,40,VCK30,40199902-200008

sub55330-0C020

main55330-0C020iUCK30,40,VCK30,40200008-200208

main55330-0C021iUCK3#,4#,VCK30,40200208-200408

55950NOZZLE ASSY, DEFROSTER

main55950-0C010iUCK30,40,VCK30,40199902-200408

55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-0C010iUCK30,40,VCK30,40199902-200408

61181BRACKET, INSTRUMENT PANEL SIDE

main61187-0C010iUCK30,40,VCK30,40199902-200408

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-0C010-B0iUCK30,40,VCK30,40..LIMD,SR5199902-200208

DK.CHARCOAL,TRIM11

main73970-0C010-B1iUCK30,40,VCK30,40..LIMD,SR5199902-200208

MD.MOON MIST,TRIM10

main73970-0C010-E0iUCK30,40,VCK30,40199902-200208

OAK,TRIM4#

main73970-0C020-B0iUCK40,VCK30..DLX200208-200310

DK.CHARCOAL,TRIM1#

sub73970-0C050

main73970-0C020-B0iUCK3#,4#,VCK30,40..LIMD,SR5200208-200408

DK.CHARCOAL,TRIM11

sub73970-0C050

main73970-0C020-B1iUCK3#,4#,VCK30,40..LIMD,SR5200208-200408

DK.GRAY,TRIM12

sub73970-0C050

main73970-0C020-E0iUCK3#,4#,VCK30,40200208-200408

OAK,TRIM4#

sub73970-0C050

main73970-0C021-B0iGSK30,UCK3#,4#..LIMD,SR5200408

DK.CHARCOAL,TRIM11

sub73970-0C022

main73970-0C021-B1iGSK30,UCK3#,4#..LIMD,SR5200408

DK.GRAY,TRIM12

sub73970-0C022

main73970-0C021-E1iGSK30,UCK3#,4#200408

SANDAL WOOD,TRIM42,43

sub73970-0C022

9008011127

main90080-11127

9008011347

main90080-11347

9008011389

main90080-11389

9008011394

main90080-11394

9015950184

main90159-50184

9017908102

main90179-08102

9046714013

main90467-14013

9046714023

main90467-14023

9046714024

main90467-14024

9046714025

main90467-14025

9046714027

main90467-14027

9046714028

main90467-14028

91651B0820

main91651-B0820

22 parts on this diagram · 3 diagrams in section
