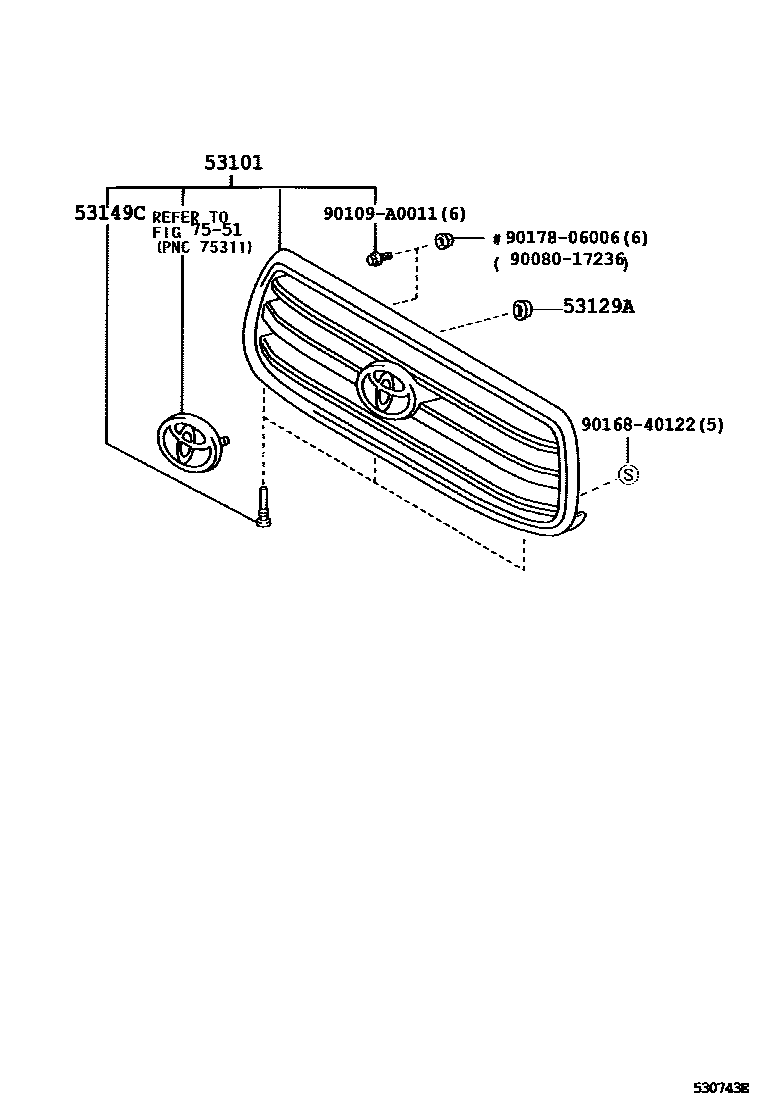

RADIATOR GRILLE

0001 1 0002 1

53101GRILLE SUB-ASSY, RADIATOR

main53100-0C010iUCK30,40,VCK30,40..DLX,SR5199902-200208

PAINTED

main53100-0C020iUCK30,40,VCK30,40..LIMD,SR5199902-200208

CHROME PLATED

main53100-0C050-C0iUCK30,40,VCK30,40..LIMD200008-200208

BLACK,202

main53100-0C050-D0iUCK30,40,VCK30,40..LIMD200008-200208

RED MM,3K4

main53100-0C050-G0iUCK30,40,VCK30,40..LIMD200008-200208

DK.GREEN MC.,6Q7

main53100-0C090iGSK30..DLX;UCK40..DLX..CND200408-200608

main53100-0C090iUCK40,VCK30..DLX200208-200408

PAINTED

main53100-0C100-A0iGSK30,UCK30,40..SR5200408

WHITE,056

sub53100-0C902

sub75311-0C020

main53100-0C100-A0iUCK30,40,VCK30,40..SR5200208-200408

CHROME PLATED,WHITE,056

sub53100-0C902

sub75311-0C020

main53100-0C100-B0iUCK30,40,VCK30,40..SR5200208-200408

SILVER ME.,1D6

sub53100-0C902

sub75311-0C020

main53100-0C100-B1iGSK30,UCK30,40..SR5200408

GRAY M.M.,1E3

sub53100-0C902

sub75311-0C020

main53100-0C100-B1iUCK30,40,VCK30,40..SR5200208-200408

CHROME PLATED,GRAY M.M.,1E3

sub53100-0C902

sub75311-0C020

main53100-0C100-C0iUCK30,40,VCK30,40..SR5200208-200408

CHROME PLATED,BLACK,202

sub53100-0C902

sub75311-0C020

main53100-0C100-C0iGSK30,UCK30,40..SR5200408

BLACK,202

sub53100-0C902

sub75311-0C020

main53100-0C100-D0iUCK30,40,VCK30,40..SR5200208-200408

CHROME PLATED,DK. RED M.M.,3Q3

sub53100-0C902

sub75311-0C020

main53100-0C100-D0iGSK30,UCK30,40..SR5200408

DK. RED M.M.,3Q3

sub53100-0C902

sub75311-0C020

main53100-0C100-E0iUCK30,40,VCK30,40..SR5200208-200408

BEIGE M. M.,4Q2

sub53100-0C902

sub75311-0C020

main53100-0C100-E1iUCK30,40,VCK30,40..SR5200208-200310

OLIVE BROWN M.M.,4R6

sub53100-0C902

sub75311-0C020

main53100-0C100-G0iUCK30,40,VCK30,40..SR5200208-200408

CHROME PLATED,DK.GREEN MC.,6Q7

sub53100-0C902

sub75311-0C020

main53100-0C100-G1iGSK30,UCK30,40..SR5200408

DK.GREEN M.M.,6T8

sub53100-0C902

sub75311-0C020

main53100-0C100-J0iUCK30,40,VCK30,40..SR5200208-200408

DK.BLUE MC.,8Q0

sub53100-0C902

sub75311-0C020

main53100-0C100-J1iGSK30,UCK30,40..SR5200408

BLUE MC.,8M6

sub53100-0C902

sub75311-0C020

main53100-0C100-J2iUCK30,40,VCK30,40..SR5200310-200408

CHROME PLATED,BULE M.M.,8P9

sub53100-0C902

sub75311-0C020

main53100-0C100-J3iGSK30,UCK30,40..SR5200408

DK.BLUE MM,8J7

sub53100-0C902

sub75311-0C020

main53100-0C110-A0iUCK40..LIMD..CND;UCK30,40..(DLX,LIMD)..USA200208-200408

WHITE,056

main53100-0C110-B0iUCK40..LIMD..CND;UCK30,40..(DLX,LIMD)..USA200208-200408

GRAY M.M.,1E3

main53100-0C110-C0iUCK30,40..LIMD200208-200408

BLACK,202

main53100-0C110-D0iUCK40..SR5..CND200208-200408

DK. RED M.M.,3Q3

main53100-0C110-E0iUCK30,40..DLX..USA200408-200609

BEIGE M. M.,4Q2

main53100-0C110-G0iUCK40..SR5..CND200208-200408

DK.GREEN MC.,6Q7

main53100-0C110-G1iUCK30,40..DLX..USA200408-200609

DK.GREEN M.M.,6T8

main53100-0C110-J0iUCK40..LIMD..CND;UCK30,40..(DLX,LIMD)..USA200408

BLUE MC.,8M6

main53100-0C110-J1iUCK30,40..DLX..USA200408-200609

DK.BLUE MM,8J7

main53100-0C120-A0iUCK31,41..SR5200310-200408

WHITE,056

sub53100-0C904

sub75301-0C010

sub75311-0C020

main53100-0C120-B0iUCK31,41..SR5200310-200408

SILVER ME.,1D6

sub53100-0C904

sub75301-0C010

sub75311-0C020

main53100-0C120-B1iUCK31,41..SR5200310-200408

GRAY M.M.,1E3

sub53100-0C904

sub75301-0C010

sub75311-0C020

main53100-0C120-C0iUCK31,41..SR5200310-200408

BLACK,202

sub53100-0C904

sub75301-0C010

sub75311-0C020

main53100-0C120-D0iUCK31,41..SR5200310-200408

DK. RED M.M.,3Q3

sub53100-0C904

sub75301-0C010

sub75311-0C020

main53100-0C120-E0iUCK31,41..SR5200310-200408

BEIGE M. M.,4Q2

sub53100-0C904

sub75301-0C010

sub75311-0C020

main53100-0C120-G0iUCK31,41..SR5200310-200408

DK.GREEN MC.,6Q7

sub53100-0C904

sub75301-0C010

sub75311-0C020

main53100-0C120-G1iUCK31,41..SR5200408

DK.GREEN M.M.,6T8

sub53100-0C904

sub75301-0C010

sub75311-0C020

main53100-0C120-J0iUCK31,41..SR5200310-200408

DK.BLUE MC.,8Q0

sub53100-0C904

sub75301-0C010

sub75311-0C020

main53100-0C120-J1iUCK31,41..SR5200408

BLUE MC.,8M6

sub53100-0C904

sub75301-0C010

sub75311-0C020

main53100-0C120-J2iUCK31,41..SR5200310-200408

BULUE M.M.,8P9

sub53100-0C904

sub75301-0C010

sub75311-0C020

main53100-0C120-J3iUCK31,41..SR5200408

DK.BLUE MM,8J7

sub53100-0C904

sub75301-0C010

sub75311-0C020

main53100-0C130-A0iUCK31,41..LIMD200310-200408

WHITE,056

sub53100-0C905

sub75301-0C010

sub75311-0C020

main53100-0C130-B0iUCK31,41..LIMD200310-200408

GRAY M.M.,1E3

sub53100-0C905

sub75301-0C010

sub75311-0C020

main53100-0C130-C0iUCK31,41..LIMD200310-200408

BLACK,202

sub53100-0C905

sub75301-0C010

sub75311-0C020

main53100-0C130-D0iUCK31,41..LIMD200310-200408

DK. RED M.M.,3Q3

sub53100-0C905

sub75301-0C010

sub75311-0C020

main53100-0C130-G0iUCK31,41..LIMD200310-200408

DK.GREEN MC.,6Q7

sub53100-0C905

sub75301-0C010

sub75311-0C020

main53100-0C130-J0iUCK31,41..LIMD200408

BLUE MC.,8M6

sub53100-0C905

sub75301-0C010

sub75311-0C020

53129APIPE, RADIATOR GRILLE

main53129-50010iUCK30,40,VCK30,40199902-200408

53149CPROTECTOR, RADIATOR GRILLE, NO.2

main53149-0C010iUCK30,40,VCK30,40199902-200408

7551

9008017236

main90080-17236

90109A0011

main90109-A0011

9016840122

main90168-40122

9017806006

main90178-06006

8 parts on this diagram · 2 diagrams in section
