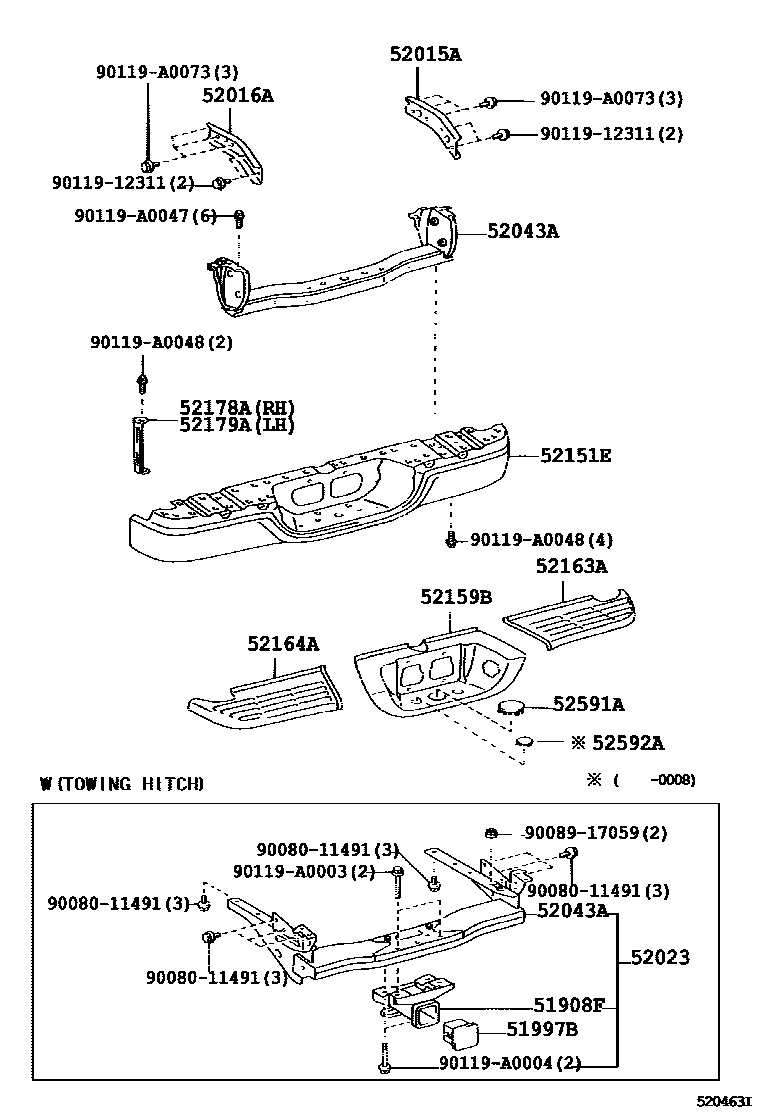

REAR BUMPER & BUMPER STAY

0001 1 0002 1

51908FBRACKET SUB-ASSY, RECEIVER HITCH

main51908-0C020iUCK3#,4#200208-200408

51997BCAP, RECEIVER HITCH

main51997-0C010iUCK3#,4#200208-200408

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-0C010iUCK30,40,VCK30,40199902-200408

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-0C010iUCK30,40,VCK30,40199902-200408

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-0C040iUCK30,40200208-200310

sub52023-0C041

main52023-0C041iUCK3#,4#200310-200408

52043AREINFORCEMENT SUB-ASSY, REAR BUMPER BAR NO.2

main52043-0C010iUCK30,40,VCK30,40199902-200208

main52043-0C020iUCK30,40200208-200310

W(TOWING HITCH)

sub52043-0C021

main52043-0C021iUCK3#,4#200310-200408

W(TOWING HITCH)

main52043-0C030iUCK3#,4#,VCK30,40200208-200408

52151EBAR, REAR BUMPER

main52151-0C010iUCK30,40,VCK30,40..DLX,SR5199902-200208

sub52151-0C011

main52151-0C011iGSK30..DLX;UCK40..DLX..CND200208-200608

main52151-0C020iUCK30,40,VCK30,40..LIMD,SR5199902-200208

CHROME PLATED

sub52151-0C021

main52151-0C021iUCK40..SR5..CND;GSK30,UCK31,41..SR5;UCK30..SD..(DLX,SR5);UCK40..SD..(DLX,SR5)..USA200208-200408

CHROME PLATED

main52151-0C040iUCK30,40..SSD..SR5200208-200408

CHROME PLATED

main52151-0C900iUCK30,40,VCK30,40200008-200111

PAINTED

sub52151-0C901

main52151-0C901iUCK3#,4#..SD..LIMD200111-200408

PAINTED

main52151-0C901iUCK4#..SR5..CND200510

main52151-0C902iUCK30,40..SSD..LIMD200208-200408

PAINTED

52159BPLATE, REAR BUMPER

main52159-0C010iUCK30,40,VCK30,40199902-200408

52163APLATE, REAR BUMPER, RH

main52163-0C010iUCK30,40,VCK30,40199902-200408

main52163-0C030iUCK30,40..SSD200208-200408

52164APLATE, REAR BUMPER, LH

main52164-0C010iUCK3#,4#,VCK30,40..SD199902-200408

main52164-0C030iUCK30,40..SSD200208-200408

52178AREINFORCEMENT, REAR BUMPER BAR CORNER, RH

main52178-0C010iUCK3#,4#,VCK30,40..SD199902-200408

main52178-0C020iUCK30,40..SSD200208-200408

52179AREINFORCEMENT, REAR BUMPER BAR CORNER, LH

main52178-0C010iUCK3#,4#,VCK30,40..SD199902-200408

main52178-0C020iUCK30,40..SSD200208-200408

52591ASEAL, REAR BUMPER

main52591-0C010iUCK30,40,VCK30,40199902-200408

52592ASEAL, REAR BUMPER

main52592-0C010iUCK30,40,VCK30,40199902-200008

9008011491

main90080-11491

9008917059

main90089-17059

9011912311

main90119-12311

90119A0003

main90119-A0003

90119A0004

main90119-A0004

90119A0047

main90119-A0047

90119A0048

main90119-A0048

90119A0073

main90119-A0073

22 parts on this diagram · 2 diagrams in section
