FRAME

0001 1 0002 1 0003 1

1702

4804

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-0C010iUCK30,40,VCK30,40200010-200208

sub51021-0C020

main51021-0C020iUCK3#,4#,VCK30,40200208-200408

main51021-34020iUCK30,40,VCK30,40199902-200010

sub51021-0C010

51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH

main51025-0C010iUCK30,40,VCK30,40199902-200408

main51025-0C020iUCK3#,4#200408

51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH

main51025-0C010iGSK30199902-200408

main51025-0C020iUCK3#,4#200408

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-0C010iUCK30,40,VCK30,40200010-200408

main51035-34010iUCK30,40,VCK30,40199902-200010

sub51035-0C010

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-0C010iUCK30,40,VCK30,40200010-200408

main51036-34010iUCK30,40,VCK30,40199902-200010

sub51036-0C010

51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH

main51071-34010iUCK40,VCK30..RCB199902-200608

51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH

main51071-34010iUCK40,VCK30,40..RCB199902-200608

51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH

main51073-34010iUCK30,40,VCK30,40199902-200408

51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH

main51074-34010iUCK30,40,VCK30,40199902-200408

51100FFRAME SUB-ASSY

main51001-0C010iVCK30..ACB..4HC199902-200008

main51001-0C011iVCK30..ACB..4HC200008-200208

main51001-0C016iVCK30..4HC..SR5200208-200309

main51001-0C018iVCK30..4HC..SR5200309-200408

main51001-0C020iVCK30..5F..SR5199902-200008

main51001-0C021iVCK30..5F..SR5200008-200208

main51001-0C026iVCK30..5F..SR5200208-200309

main51001-0C028iVCK30..5F..SR5200309-200408

main51001-0C030iVCK30..4HC..DLX199902-200008

main51001-0C031iVCK30..4HC..DLX200008-200208

main51001-0C036iVCK30..4HC..DLX200208-200309

main51001-0C038iVCK30..4HC..DLX200309-200408

main51001-0C040iVCK30..5F..DLX199902-200008

main51001-0C041iVCK30..5F..DLX200008-200208

main51001-0C046iVCK30..5F..DLX200208-200309

main51001-0C048iVCK30..5F..DLX200309-200408

main51001-0C050iUCK30199902-200008

main51001-0C051iUCK30200008-200208

main51001-0C056iUCK30200208-200309

main51001-0C058iUCK30200309-200408

main51001-0C060iVCK40..ACB..4HC199902-200008

main51001-0C061iVCK40..ACB..4HC200008-200208

main51001-0C066iVCK40..4HC200208-200309

main51001-0C068iVCK40..4HC200309-200408

main51001-0C070iVCK40..ACB..5F199902-200008

main51001-0C071iVCK40..ACB..5F200008-200208

main51001-0C076iVCK40..5F200208-200309

main51001-0C078iVCK40..5F200309-200408

main51001-0C080iVCK40..RCB..4HC199902-200008

main51001-0C081iVCK40..RCB..4HC200008-200208

main51001-0C090iVCK40..RCB..5F199902-200008

main51001-0C091iVCK40..RCB..5F200008-200208

main51001-0C100iUCK40..ACB199902-200008

main51001-0C101iUCK40..ACB200008-200208

main51001-0C106iUCK40..ACB200208-200309

main51001-0C108iUCK40..ACB200309-200408

main51001-0C110iUCK40..RCB199902-200008

main51001-0C111iUCK40..RCB200008-200208

main51001-0C116iUCK40..RCB200208-200309

main51001-0C118iUCK40..RCB200309-200408

main51001-0C140iUCK30..USA200008-200208

OFF ROAD PACKAGE

main51001-0C151iUCK30..USA200208-200309

OFF ROAD PACKAGE

main51001-0C153iUCK30..USA200309-200408

OFF ROAD PACKAGE

main51001-0C160iUCK31200310-200408

main51001-0C170iUCK41200310-200408

main51001-0C180iUCK31..USA200310-200408

OFF ROAD PACKAGE

main51001-0C210iGSK30..5HC..DLX200408-200608

main51001-0C220iGSK30..6F..DLX200408-200608

main51001-0C230iGSK30..5HC..SR5200408

main51001-0C240iGSK30..6F..SR5200408

main51001-0C250iUCK30..DLX200408-200608

main51001-0C260iUCK30..ACB200408

main51001-0C270iUCK30..ACB..USA200408

OFF ROAD PACKAGE

main51001-0C280iUCK40..DLX200408-200608

main51001-0C290iUCK40..ACB200408

main51001-0C300iUCK31200408

main51001-0C310iUCK31..USA200408

OFF ROAD PACKAGE

main51001-0C320iUCK41200408

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-0C010iUCK30,40,VCK30,40199902-200208

sub51201-0C011

main51201-0C011iUCK3#,4#,VCK30,40200308-200408

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-0C010iUCK30,40,VCK30,40199902-200208

sub51202-0C011

main51202-0C011iUCK3#,4#,VCK30,40200208-200408

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-0C010iUCK30,VCK30199902-200208

sub51203-0C011

main51203-0C011iUCK3#,VCK30200208-200408

main51203-0C020iUCK40,VCK40199902-200208

sub51203-0C021

main51203-0C021iUCK4#,VCK40200208-200408

main51203-0C030iUCK3#,4#200408

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-0C010iUCK30,VCK30..4HC199902-200208

sub51204-0C011

main51204-0C011iUCK30,VCK30..4HC200309-200408

main51204-0C012iGSK30,UCK30..5HC200408

main51204-0C020iVCK30..5F199902-200208

sub51204-0C021

main51204-0C021iVCK30..5F200309-200408

main51204-0C022iGSK30..6F200408

main51204-0C030iUCK40,VCK40..4HC199902-200208

sub51204-0C031

main51204-0C031iUCK40..ACB200309-200608

main51204-0C032iUCK40..ACB200605

main51204-0C040iVCK40..5F199902-200208

sub51204-0C041

main51204-0C041iVCK40..5F200309-200408

main51204-0C060iUCK31200310-200605

main51204-0C061iUCK31200605

main51204-0C080iUCK41200310-200605

main51204-0C081iUCK41200605

51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-0C010iUCK30,40,VCK30,40199902-200309

main51205-0C030iUCK3#,4#,VCK30,40200309-200408

main51205-0C050iGSK30,UCK3#,4#200408

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-0C010iUCK30,40,VCK30,40199902-200208

sub51206-0C012

main51206-0C012iUCK30,40,VCK30,40200208-200310

main51206-0C030iUCK3#,4#,VCK30,40200310-200408

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-0C010iUCK30,40,VCK30,40199902-200208

sub51209-0C013

main51209-0C012iUCK3#,4#,VCK30,40200208-200408

sub51209-0C013

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-0C010iUCK3#,4#199902-200408

main51401-0C020iVCK30,40199902-200408

main51401-0C030iGSK30200408

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-0C010iUCK3#,4#199902-200408

main51402-0C020iVCK30,40199902-200408

main51402-0C030iGSK30200408

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-34020iUCK30,40,VCK30,40199902-200408

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-34020iUCK30,40,VCK30,40199902-200408

51508DSUPPORT SUB-ASSY, STABILIZER, RH

main51508-0C020iUCK31,41200310-200408

51509SUPPORT SUB-ASSY, STABILIZER

main51509-0C020iUCK31,41200310-200408

51591ASUPPORT, STABILIZER, RH

main51591-0C010iUCK30,40,VCK30,40199902-200008

main51591-0C020iUCK30,40,VCK30,40200008-200408

51592ASUPPORT, STABILIZER, LH

main51592-0C010iUCK30,40,VCK30,40199902-200008

main51592-0C020iUCK30,40,VCK30,40200008-200408

51621BRACKET, REAR BOUND STOPPER, RH

main51621-0C010iUCK30,VCK30200010-200208

main51621-0C020iVCK40;UCK30,40..USA;UCK40..SR5..CND200010-200408

OFF ROAD PACKAGE

main51621-0C020iUCK40..DLX200408-200608

main51621-0C030iUCK31200406-200408

main51621-34020iUCK30,VCK30199902-200010

sub51621-0C010

main51621-34030iVCK40;UCK30,40..USA;UCK40..SR5..CND200008-200010

OFF ROAD PACKAGE

sub51621-0C020

main51621-34030iUCK40,VCK40199902-200008

sub51621-0C020

51622BRACKET, REAR BOUND STOPPER, LH

main51622-0C010iUCK30,VCK30200010-200208

main51622-0C020iUCK40..(DLX,LIMD)..CND200010-200408

OFF ROAD PACKAGE

main51622-0C020iUCK40..DLX200408-200608

main51622-0C030iGSK30,UCK3#,41200406-200408

main51622-34020iUCK30,VCK30199902-200010

sub51622-0C010

main51622-34030iUCK40..(DLX,LIMD)..CND200008-200010

OFF ROAD PACKAGE

sub51622-0C020

main51622-34030iUCK40,VCK40199902-200008

sub51622-0C020

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-34030iUCK3#,4#,VCK30,40199902-200408

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-34030iUCK3#,4#,VCK30,40199902-200408

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-34050iUCK30,40,VCK30,40199902-199912

sub51703-34051

main51703-34051iUCK30,40,VCK30,40199912-200408

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-34050iUCK30,40,VCK30,40199902-199912

sub51704-34051

main51704-34051iUCK30,40,VCK30,40199912-200408

51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH

main51705-34050iUCK30,40,VCK30,40..ACB199902-200408

main51705-34060iUCK40,VCK30..RCB199902-200608

51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH

main51705-34060iGSK30,UCK30,40..DLX199902-200608

main51706-34050iUCK30,40,VCK30,40..ACB199902-200408

53723DREINFORCEMENT, FRONT SPRING SUPPORT

main53723-0C010iGSK30,UCK3#,4#200208-200408

9008011222

main90080-11222

90105A0009

main90105-A0009

90119A0019

main90119-A0019

91619B1225

main91619-B1225

9415011001

main94150-11001

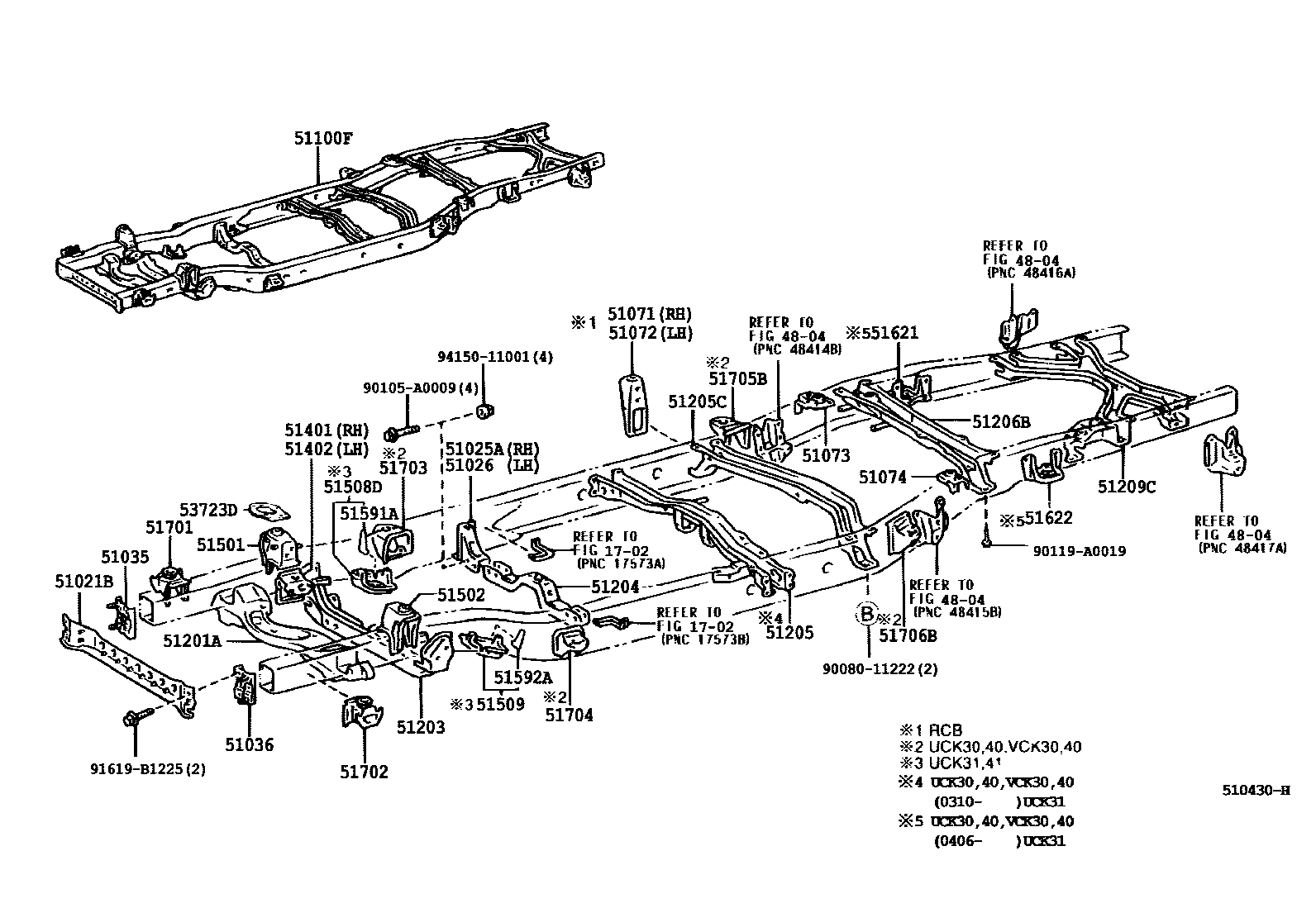

41 parts on this diagram · 3 diagrams in section
