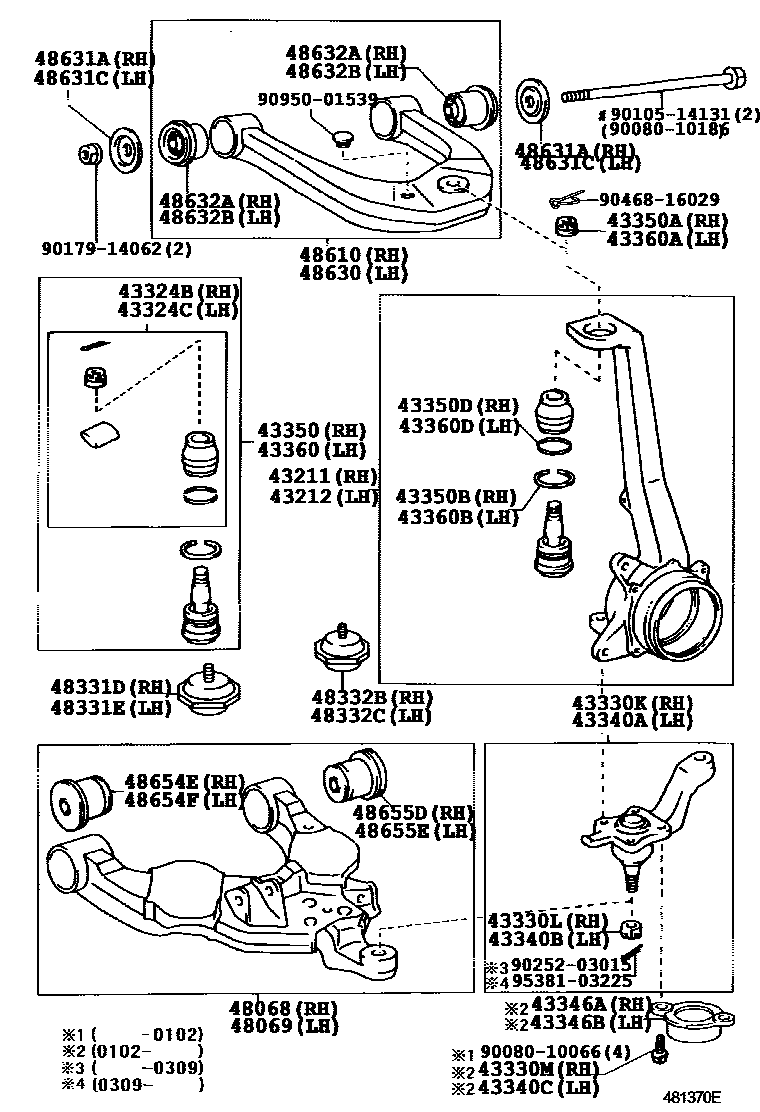

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43201-34030iUCK3#,4#,VCK30,40200309-200510

main43201-35070iUCK30,40,VCK30,40199902-200105

sub43201-35071

main43201-35071iUCK30,40,VCK30,40200105-200208

main43201-35080iUCK30,40,VCK30,40199902-200105

W(ABS)

sub43201-35081

main43201-35081iUCK30,40,VCK30,40200208-200309

main43201-35081iUCK30,40,VCK30,40200105-200208

W(ABS)

43212KNUCKLE, STEERING, LH

main43202-34030iGSK30,UCK3#,4#200309-200510

main43202-35060iUCK30,40,VCK30,40199902-200105

sub43202-35061

main43202-35061iUCK30,40,VCK30,40200105-200208

main43202-35070iUCK30,40,VCK30,40199902-200105

W(ABS)

sub43202-35071

main43202-35071iUCK30,40,VCK30,40200208-200309

main43202-35071iUCK30,40,VCK30,40200105-200208

W(ABS)

43324BCOVER, FRONT UPPER BALL JOINT DUST, RH

main43324-39015iUCK30,40,VCK30,40199902-200501

main43324-39045iGSK30,UCK3#,4#200501

43324CCOVER, FRONT UPPER BALL JOINT DUST, LH

main43324-39015iGSK30,UCK3#,4#199902-200501

main43324-39045iGSK30,UCK3#,4#200501

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39465iUCK30,40,VCK30,40199902-200102

sub43330-39466

main43330-39466iUCK30,40,VCK30,40200102-200208

main43330-39605iUCK30,40,VCK30,40200208-200309

main43330-39655iUCK3#,4#,VCK30,40200309-200512

sub43330-39805

main43330-39805iGSK30,UCK3#,4#200512-200611

sub43330-39825

main43330-39825iGSK30,UCK3#,4#200611

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-16050iUCK30,40,VCK30,40199902-200309

main90171-18003iUCK3#,4#,VCK30,40200309-200408

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-10505iUCK30,40,VCK30,40200102-200105

GOLD

main90105-12284iGSK30,UCK3#,4#200310-200412

main90105-12316iUCK30,40,VCK30,40200309-200310

main90119-10933iUCK30,40,VCK30,40200102-200208

GREEN

main90119-10933iUCK30,40,VCK30,40200208-200309

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-39355iUCK30,40,VCK30,40199902-200102

sub43340-39356

main43340-39356iUCK30,40,VCK30,40200102-200208

main43340-39485iUCK30,40,VCK30,40200208-200309

main43340-39515iUCK3#,4#,VCK30,40200309-200512

sub43340-39575

main43340-39575iGSK30,UCK3#,4#200512-200611

sub43340-39595

main43340-39595iGSK30,UCK3#,4#200611

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-16050iUCK30,40,VCK30,40199902-200309

main90171-18003iGSK30,UCK3#,4#200309-200408

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-10505iUCK30,40,VCK30,40200102-200105

GOLD

main90105-12284iUCK3#,4#,VCK30,40200310-200412

main90105-12316iGSK30,UCK3#,4#200309-200310

main90119-10933iUCK30,40,VCK30,40200208-200309

main90119-10933iUCK30,40,VCK30,40200102-200208

GREEN

43346APROTECTOR, FRONT LOWER BALL JOINT DUST COVER, RH

main43346-34010iGSK30,UCK3#,4#200309-200610

main43346-60011iUCK30,40,VCK30,40200102-200309

43346BPROTECTOR, FRONT LOWER BALL JOINT DUST COVER, LH

main43346-34010iGSK30,UCK3#,4#200309-200610

main43346-60011iUCK30,40,VCK30,40200102-200309

43350JOINT ASSY, FRONT UPPER BALL, RH

main43310-39016iGSK30,UCK3#,4#199902-200501

main43310-39085iGSK30,UCK3#,4#200501

sub43310-39016

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-14010iUCK30,40,VCK30,40199902-200412

main90171-14011iGSK30,UCK3#,4#200501

43350BRING, SNAP (FOR FRONT UPPER BALL JOINT RH)

main90520-39180iUCK30,40,VCK30,40199902-200408

43350DWIRE (FOR FRONT UPPER BALL JOINT RH)

main90580-10001iUCK3#,4#,VCK30,40199902-200408

43360JOINT ASSY, FRONT UPPER BALL, LH

main43310-39016iUCK30,40,VCK30,40199902-200501

main43310-39085iGSK30,UCK3#,4#200501

sub43310-39016

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-14010iUCK30,40,VCK30,40199902-200412

main90171-14011iGSK30,UCK3#,4#200501

43360BRING, SNAP (FOR FRONT UPPER BALL JOINT LH)

main90520-39180iGSK30,UCK3#,4#199902-200408

43360DWIRE (FOR FRONT UPPER BALL JOINT LH)

main90580-10001iUCK3#,4#,VCK30,40199902-200408

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-34020iUCK30,40,VCK30,40199902-200309

main48068-34030iUCK30,40,VCK30,40200204-200208

sub48068-34020

main48068-34040iUCK3#,4#,VCK30,40200309-200408

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-34020iUCK30,40,VCK30,40199902-200309

main48069-34030iUCK30,40,VCK30,40200204-200208

sub48069-34020

main48069-34040iUCK3#,4#,VCK30,40200309-200408

48331DBUMPER, FRONT SPRING, NO.1 RH

main48304-0C010iGSK30,UCK3#,41200208-200408

main48304-0C020iUCK40200208-200408

main48304-34010iUCK30,VCK30199902-200208

main48304-34020iUCK30..USA200008-200208

OFF ROAD PACKAGE

main48304-34020iUCK40,VCK40199902-200208

48331EBUMPER, FRONT SPRING, NO.1 LH

main48304-0C010iUCK3#,41,VCK30200208-200408

main48304-0C020iUCK40,VCK40200208-200408

main48304-34010iUCK30,VCK30199902-200208

main48304-34020iUCK30..USA200008-200208

OFF ROAD PACKAGE

main48304-34020iUCK40,VCK40199902-200208

48332BBUMPER, FRONT SPRING, NO.2 RH

main48305-0C010iGSK30,UCK3#,41200208-200408

main48305-0C020iUCK40,VCK40200208-200408

main48305-34010iUCK30,VCK30199902-200208

main48305-34020iUCK40,VCK40199902-200208

main48305-34020iUCK30..USA200008-200208

OFF ROAD PACKAGE

48332CBUMPER, FRONT SPRING, NO.2 LH

main48305-0C010iGSK30,UCK3#,41200208-200408

main48305-0C020iUCK40200208-200408

main48305-34010iUCK30,VCK30199902-200208

main48305-34020iUCK30..USA200008-200208

OFF ROAD PACKAGE

main48305-34020iUCK40,VCK40199902-200208

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-34010iUCK30,40,VCK30,40199902-200408

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-34010iUCK30,40,VCK30,40199902-200408

48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)

main90948-02177iUCK30,40,VCK30,40199902-200408

48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)

main90948-02177iGSK30,UCK3#,4#199902-200408

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-34010iUCK30,40,VCK30,40199902-200408

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-34010iGSK30,UCK3#,4#199902-200408

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48654-34010iUCK30,40,VCK30,40199902-200408

main48654-34020iUCK30,40,VCK30,40200204-200208

sub48654-34010

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48654-34010iUCK3#,4#,VCK30,40199902-200408

main48654-34020iUCK30,40,VCK30,40200204-200208

sub48654-34010

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-34010iUCK30,40,VCK30,40199902-200408

main48655-34020iUCK30,40,VCK30,40200204-200208

sub48655-34010

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-34010iGSK30,UCK3#,4#199902-200408

main48655-34020iUCK30,40,VCK30,40200204-200208

sub48655-34010

9008010066

main90080-10066

9008010186

main90080-10186

9010514131

main90105-14131

9017914062

main90179-14062

9025203015

main90252-03015

9046816029

main90468-16029

9095001539

main90950-01539

9538103225

main95381-03225

44 parts on this diagram · 1 diagram in section
