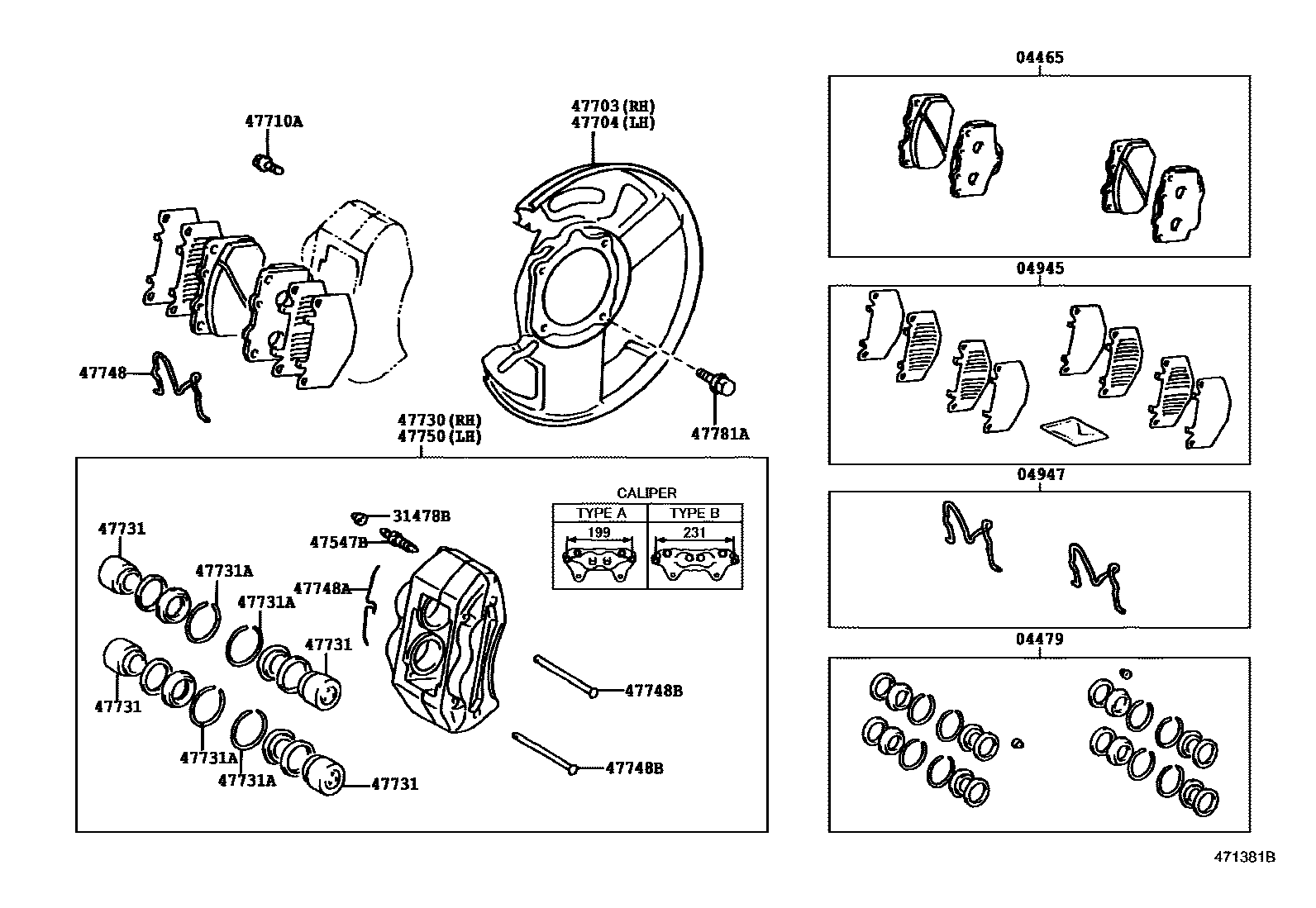

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-0C011iUCK30,40,VCK30,40199902-200002

CALIPER=TYPE A:REFER TO ILLUSTRATION

sub04465-0C012

main04465-0C012iUCK30,40,VCK30,40200002-200208

SUMITOMO PS534,CALIPER=TYPE A:REFER TO ILLUSTRATION

main04465-35290iGSK30,UCK3#,4#199902-200612

MARK SUMITOMO PS558H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-0C010iUCK30,40,VCK30,40199902-200111

CALIPER=TYPE A:REFER TO ILLUSTRATION

sub04479-0C020

main04479-0C020iUCK30,40,VCK30,40199902-200208

CALIPER=TYPE B:REFER TO ILLUSTRATION

main04479-0C020iUCK30,40,VCK30,40200112-200208

CALIPER=TYPE A:REFER TO ILLUSTRATION

main04479-60080iGSK30,UCK3#,4#200208-200408

sub04479-60081

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-04010iUCK30,40,VCK30,40199902-200208

CALIPER=TYPE A:REFER TO ILLUSTRATION

main04945-0C030iGSK30,UCK3#,4#200410

main04945-35080iUCK3#,4#,VCK30,40200208-200410

sub04945-35120

main04945-35080iUCK30,40,VCK30,40199902-200208

CALIPER=TYPE B:REFER TO ILLUSTRATION

sub04945-35120

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0C010iUCK30,40,VCK30,40199902-200208

CALIPER=TYPE B:REFER TO ILLUSTRATION

main04947-0C010iGSK30,UCK3#,4#200208-200408

main04947-35050iUCK30,40,VCK30,40199902-200208

CALIPER=TYPE A:REFER TO ILLUSTRATION

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iUCK3#,4#,VCK30,40199902-200408

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-04010iUCK3#,4#,VCK30,40200208-200408

main90080-93012iUCK30,40,VCK30,40199902-200208

sub47547-20030

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-0C010iUCK30,40,VCK30,40199902-200201

CALIPER=TYPE A:REFER TO ILLUSTRATION

sub47703-0C011

main47703-0C011iUCK30,40,VCK30,40200201-200208

CALIPER=TYPE A:REFER TO ILLUSTRATION

main47703-0C020iUCK3#,4#,VCK30,40200208-200311

(L)

main47703-0C021iUCK3#,4#,VCK30,40200311-200408

(L)

sub47703-34031

main47703-34030iUCK3#,4#,VCK30,40200208-200311

(J)

main47703-34030iUCK30,40,VCK30,40199902-200208

CALIPER=TYPE B:REFER TO ILLUSTRATION

main47703-34031iUCK3#,4#,VCK30,40200311-200408

(J)

main47703-34031iGSK30,UCK3#,4#200408-200409

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-0C010iUCK30,40,VCK30,40199902-200201

CALIPER=TYPE A:REFER TO ILLUSTRATION

sub47704-0C011

main47704-0C011iUCK30,40,VCK30,40200201-200208

CALIPER=TYPE A:REFER TO ILLUSTRATION

main47704-0C020iUCK3#,4#,VCK30,40200208-200311

(L)

main47704-0C021iUCK3#,4#,VCK30,40200311-200408

(L)

sub47704-34031

main47704-34030iUCK30,40,VCK30,40199902-200208

CALIPER=TYPE B:REFER TO ILLUSTRATION

main47704-34030iUCK3#,4#,VCK30,40200208-200311

(J)

main47704-34031iGSK30,UCK3#,4#200408-200409

main47704-34031iUCK3#,4#,VCK30,40200311-200408

(J)

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90080-10129iUCK30,40,VCK30,40199902-200208

*12-1.25PX35-27,CALIPER=TYPE A:REFER TO ILLUSTRATION

sub90080-10213

main90080-10298iUCK3#,4#,VCK30,40200208-200408

*12-1.25PX32-24

main90105-12228iUCK30,40,VCK30,40199902-200208

*12-1.25PX32-24,CALIPER=TYPE B:REFER TO ILLUSTRATION

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0C010iUCK30,40,VCK30,40199902-200112

CALIPER=TYPE A:REFER TO ILLUSTRATION

main47730-0C011iUCK30,40,VCK30,40200112-200208

CALIPER=TYPE A:REFER TO ILLUSTRATION

main47730-0C020iGSK30,UCK3#,4#200208-200410

sub47730-0C021

main47730-0C021iGSK30,UCK3#,4#200410-200602

sub47730-0C022

main47730-0C022iGSK30,UCK3#,4#200603

main47730-34040iUCK30,40,VCK30,40199902-200208

CALIPER=TYPE B:REFER TO ILLUSTRATION

47731PISTON, FRONT DISC BRAKE

main47731-0C010iUCK30,40,VCK30,40199902-200112

sub47731-35040

main47731-0C020iGSK30,UCK3#,4#200206-200408

main47731-35040iUCK30,40,VCK30,40200112-200206

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90080-52102iUCK30,40,VCK30,40199902-200208

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-0C010iUCK3#,4#,VCK30,40200208-200602

main47748-0C010iUCK30,40,VCK30,40199902-200208

CALIPER=TYPE A:REFER TO ILLUSTRATION

main47748-35010iUCK30,40,VCK30,40199902-200208

CALIPER=TYPE B:REFER TO ILLUSTRATION

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90080-46209iUCK30,40,VCK30,40199902-200208

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90080-24077iUCK30,40,VCK30,40199902-200208

main90240-06158iUCK3#,4#,VCK30,40200208-200408

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0C010iUCK30,40,VCK30,40199902-200112

CALIPER=TYPE A:REFER TO ILLUSTRATION

main47750-0C011iUCK30,40,VCK30,40200112-200208

CALIPER=TYPE A:REFER TO ILLUSTRATION

main47750-0C020iUCK3#,4#,VCK30,40200208-200410

sub47750-0C021

main47750-0C021iGSK30,UCK3#,4#200410-200602

sub47750-0C022

main47750-0C022iGSK30,UCK3#,4#200603

main47750-34040iUCK30,40,VCK30,40199902-200208

CALIPER=TYPE B:REFER TO ILLUSTRATION

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90080-11370iUCK3#,4#,VCK30,40199902-200408
