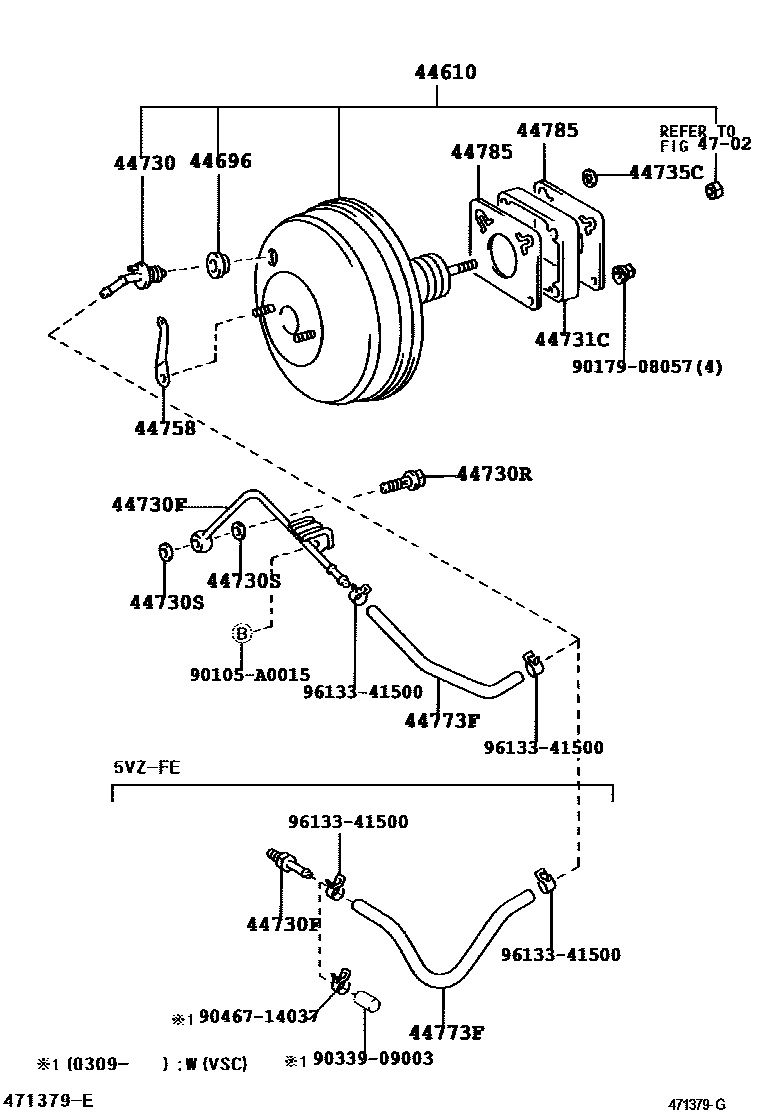

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-0C010iUCK30,40,VCK30,40199902-200208

sub44610-0C011

main44610-0C011iUCK30,40,VCK30,40200208-200507

sub44610-0C012

main44610-0C012iGSK30,UCK30,40200508

44696GROMMET, CHECK VALVE

main90480-24015iUCK30,40,VCK30,40199902-200507

main90480-24439iUCK31,41200310-200507

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iUCK31,41200310-200507

main44730-30050iUCK30,40,VCK30,40199902-200507

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51237iVCK30,40199902-200408

main90904-05006iUCK30,40199902-200408

44730RBOLT, UNION(FOR VACUUM HOSE UNION)

main90401-12012iUCK30,40199902-200408

44730SGASKET(FOR VACUUM HOSE UNION)

main90430-12005iUCK3#,4#199902-200408

44731CBRACKET, BRAKE BOOSTER

main44731-35110iUCK30,40,VCK30,40199902-200507

44735CRING, BOOSTER BRACKET STOPPER

main44735-30010iUCK30,40,VCK30,40199902-200507

44758BRACKET, VACUUM CHECK VALVE

main44758-35120iUCK30,40,VCK30,40199902-200507

44773FHOSE, UNION TO CHECK VALVE

main44773-0C010iVCK30,40199902-200408

main44773-0C020iUCK30,40199902-200310

main44773-0C040iUCK3#,4#200310-200408

main44773-0C050iGSK30200408

main44773-0C060iUCK3#,4#200408

44785GASKET, BRAKE BOOSTER

main44785-34010iUCK30,40,VCK30,40199902-200507

4702

90105A0015

main90105-A0015

9017908057

main90179-08057

9033909003

main90339-09003

9046714037

main90467-14037

9613341500

main96133-41500

17 parts on this diagram · 3 diagrams in section
