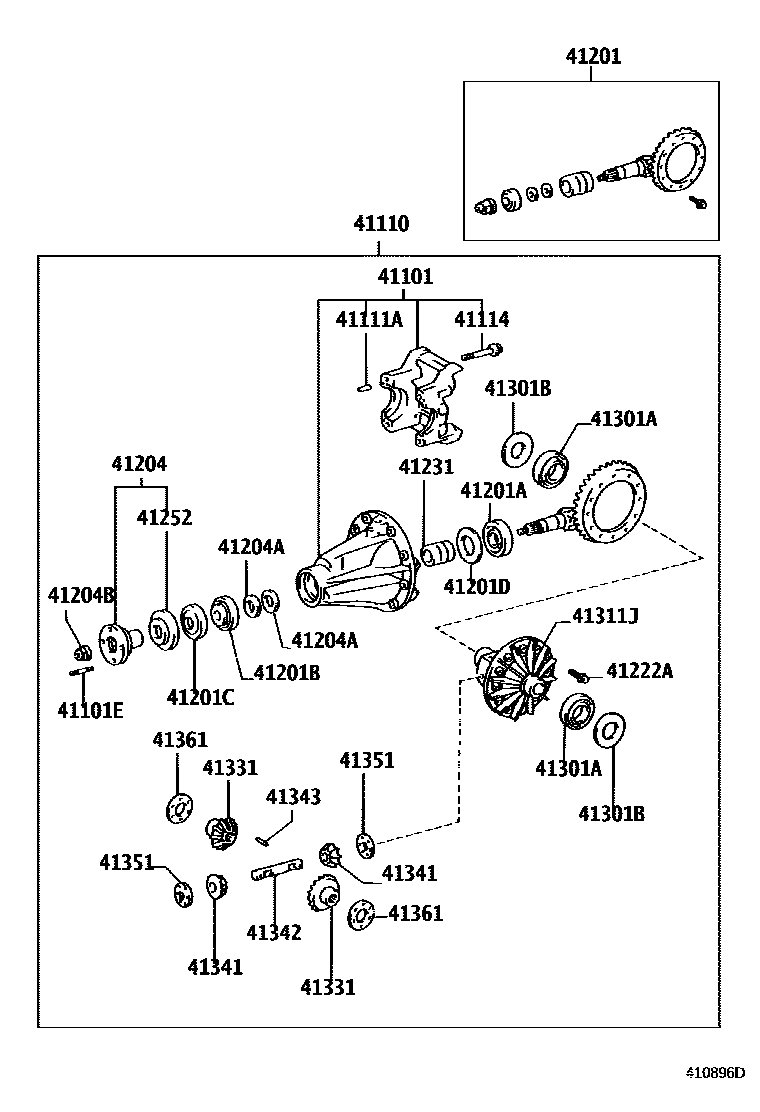

REAR AXLE HOUSING & DIFFERENTIAL
41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=49:12=4.083
*FGR=47:12=3.916
*FGR=43:10=4.300
*FGR=47:12=3.916,W(LSD)
*FGR=43:11=3.909,W(LSD)
*FGR=41:10=4.100,W(LSD)
*FGR=49:13=3.769
*FGR=47:12=3.916,TOWING PACKAGE
*FGR=43:11=3.909
*FGR=47:12=3.916,TOWING PACKAGE;W(LSD)
*FGR=43:11=3.909,W(LSD)
*FGR=49:12=4.083
*FGR=49:12=4.083,W(LSD)
*FGR=47:12=3.916
*FGR=47:12=3.916,W(LSD)
*FGR=43:11=3.909
*FGR=41:10=4.100
41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=43:10=4.300
*FGR=47:12=3.916
*FGR=49:12=4.083
*FGR=43:11=3.909
*FGR=49:13=3.769
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.88,MARK 88
T=1.90,MARK 90
T=1.92,MARK 92
T=1.94,MARK 94
T=1.96,MARK 96
T=1.98,MARK 98
T=2.00,MARK 00
T=2.02,MARK 02
T=2.04,MARK 04
T=2.06,MARK 06
T=2.08,MARK 08
T=2.10,MARK 10
T=2.12,MARK 12
T=2.14,MARK 14
T=2.16,MARK 16
T=2.18,MARK 18
T=2.20,MARK 20
T=2.22,MARK 22
T=2.24,MARK 24
T=2.26,MARK 26
T=2.28,MARK 28
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
TOWING PACKAGE
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
OD=34.6
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41301BWASHER(FOR REAR DIFFERENTIAL TAPERED ROLLER BEARING)
T=2.58
T=2.60
T=2.62
T=2.64
T=2.66
T=2.68
T=2.70
T=2.72
T=2.74
T=2.76
T=2.78
T=2.80
T=2.82
T=2.84
T=2.86
T=2.88
T=2.90
T=2.92
T=2.94
T=2.96
T=2.98
T=3.00
T=3.02
T=3.04
T=3.06
T=3.08
T=3.10
T=3.12
T=3.14
T=3.16
T=3.18
T=3.20
T=3.22
T=3.24
T=3.26
T=3.28
T=3.30
T=3.32
T=3.34
T=3.36
T=3.38
T=3.40
T=3.42
T=3.44
T=3.46
T=3.48
41311JCASE, REAR DIFFERENTIAL
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
W(LSD)
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.80,W(LSD)
T=1.70,MARK N
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
25 parts on this diagram · 3 diagrams in section
