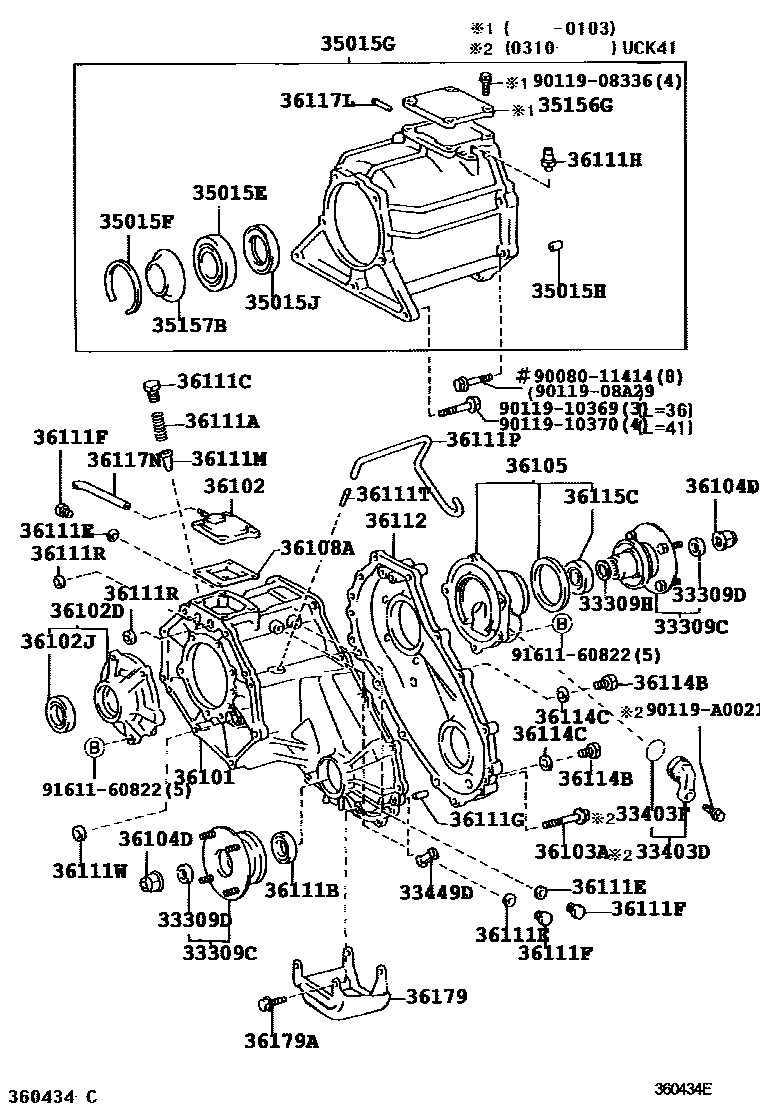

TRANSFER CASE & EXTENSION HOUSING
33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
REAR
FRONT
REAR
33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33309HWASHER, TRANSFER OUTPUT SHAFT
N=30,OD=38
33403DCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403FRING,O (FOR SPEEDOMETER DRIVEN HOLE COVER)
33449DMAGNET (FOR TRANSFER CASE)
35015EBEARING, RADIAL BALL(FOR TRANSFER CASE ADAPTER)
35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)
35015GADAPTER, TRANSFER, REAR
35015HPIN, RING(FOR TRANSFER CASE)
35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)
35156GCOVER, TRANSMISSION CASE REAR ADAPTER
35157BRECEIVER, TRANSFER CASE REAR ADAPTER OIL
36101CASE SUB-ASSY, TRANSFER
36102COVER SUB-ASSY, TRANSFER CASE
36102DRETAINER SUB-ASSY, TRANSFER RH BEARING
36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)
36103ABOLT (FOR TRANSFER CASE)
*8-1.25PX55-30
36104DNUT (FOR TRANSFER OUTPUT SHAFT)
36105HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT
36108ADEFLECTOR SUB-ASSY, BREATHER OIL
36111ASPRING, COMPRESSION (FOR TRANSFER CASE)
36111BSEAL, OIL (FOR TRANSFER CASE)
FORK SHAFT SIDE
36111CPLUG (FOR TRANSFER CASE)
36111EGASKET (FOR TRANSFER CASE)
W(DIFFERENTIAL LOCK)
W/O(DIFFERENTIAL LOCK)
36111FPLUG (FOR TRANSFER CASE)
W/O(DIFFERENTIAL LOCK)
W(DIFFERENTIAL LOCK)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=14,OD=10
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36111MPIN, SLOTTED SPRING (FOR TRANSFER CASE)
36111PHOSE, BREATHER (FOR TRANSFER CASE)
L=460
L=460
36111RPLUG, TIGHT (FOR TRANSFER CASE)
36111TTUBE (FOR TRANSFER CASE)
sub90406-T0007
36111WPLUG, TIGHT NO.2(FOR TRANSFER CASE)
36112CASE, TRANSFER, REAR
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36117ADAPTER, TRANSFER
36117LTUBE(FOR TRANSFER ADAPTER)
sub90406-T0007
36117NHOSE(FOR TRANSFER ADAPTER)
36179PROTECTOR, TRANSFER CASE LOWER
36179ABOLT (FOR TRANSFER CASE LOWER PROTECTOR)
(L)
(J)
9008011414
9011908336
9011908A29
9011910369
9011910370
90119A0021
main90119-A0021
9161160822
