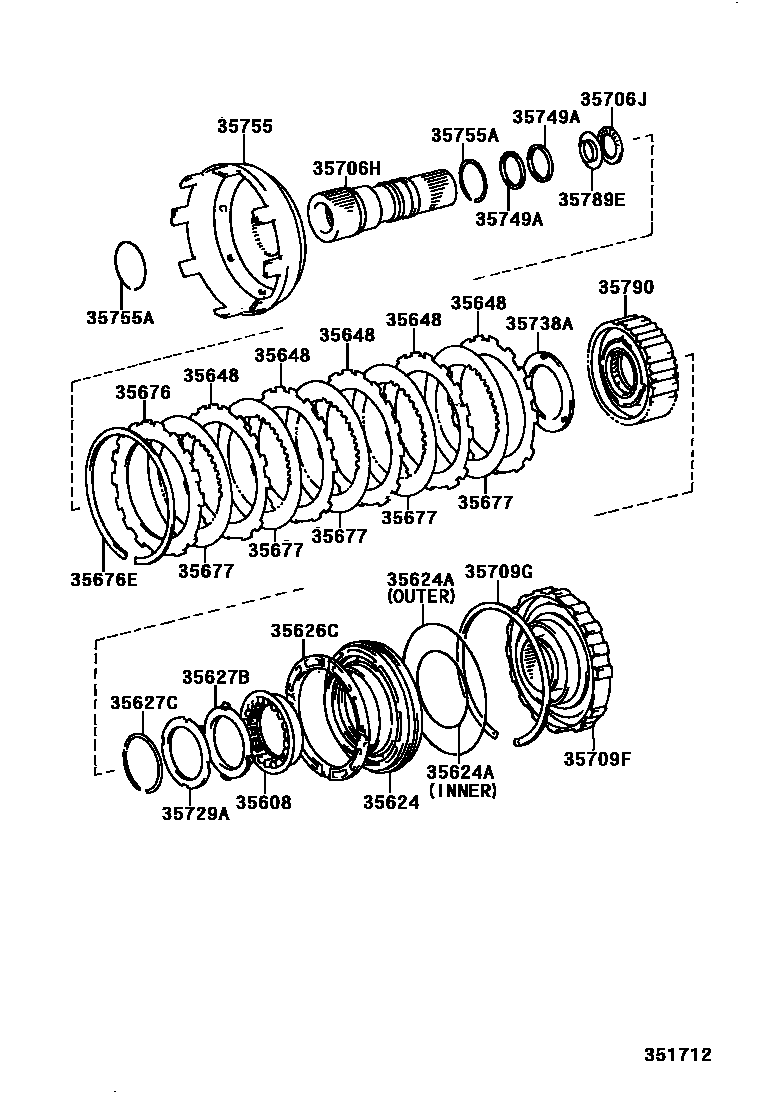

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1A340E,A340F 0002 1A750E,A750F

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-30010iUCK30,40,VCK30,40..4HC199902-200208

35624PISTON, 2ND BRAKE

main35624-30010iUCK30..SR5;UCK40..USA;VCK30,40..4HC;UCK40..SR5..CND;UCK30..LIMD..USA199902-200208

main35624-60010iGSK30,UCK3#,4#..5HC200408

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-85001iUCK30..SR5;UCK40..USA;VCK30,40..4HC;UCK40..SR5..CND;UCK30..LIMD..USA199902-200208

INNER

main90301-99038iUCK30..SR5;UCK40..USA;VCK30,40..4HC;UCK40..SR5..CND;UCK30..LIMD..USA199902-200208

OUTER

main90301-99095iGSK30,UCK3#,4#..5HC200408

INNER

main90301-99115iGSK30,UCK3#,4#..5HC200408

OUTER

35626CSLEEVE, 2ND BRAKE PISTON

main35626-30030iUCK30..SR5;UCK40..USA;VCK30,40..4HC;UCK40..SR5..CND;UCK30..LIMD..USA199902-200208

35627BSEAT, 2ND BRAKE PISTON RETURN SPRING

main35627-30010iUCK3#,4#,VCK30,40..4HC200208-200408

35627CRING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEAT)

main90520-54001iUCK30,40,VCK30,40..4HC199902-200208

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35647-30020×4iUCK30..SR5;UCK40..USA;VCK30,40..4HC;UCK40..SR5..CND;UCK30..LIMD..USA199902-200208

T=2.5

main35647-30030iUCK3#,4#,VCK30,40..4HC200208-200408

T=1.8

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-30020iUCK3#,4#,VCK30,40..4HC200208-200408

T=3.0

35676ERING, HOLE SNAP (FOR 2ND BRAKE)

main90521-99032iUCK3#,4#,VCK30,40..4HC200208-200408

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35667-30080×5iUCK30..SR5;UCK40..USA;UCK40..SR5..CND;UCK30..LIMD..USA199902-200208

main35667-60010×5iVCK30,40..4HC199902-200208

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-30061iVCK30,40..4HC200208-200408

main35706-60040iUCK3#,4#200208-200408

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-27009iUCK30,40199902-200108

main90374-30006iVCK30,40..4HC199902-200108

35709FDRUM SUB-ASSY, 2ND BRAKE

main35709-30061iUCK30,40,VCK30,40..4HC199902-200208

35709GRING, HOLE SNAP (FOR 2ND BRAKE DRUM)

main90521-99044iUCK3#,4#,VCK30,40..4HC200208-200408

35729AWASHER, PLANETARY CARRIER THRUST, NO.4

main35729-30010iUCK30,40,VCK30,40..4HC199902-200208

35738AWASHER, 1 WAY CLUTCH THRUST, NO.1

main35738-30040iUCK30..SR5;UCK40..USA;VCK30,40..4HC;UCK40..SR5..CND;UCK30..LIMD..USA199902-200208

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-30010×2iUCK30,40,VCK30,40..4HC199902-200208

35755DRUM, SUN GEAR INPUT

main35755-50010iUCK30,40,VCK30,40..4HC199902-200208

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-28009iUCK3#200306-200408

T=1.50,OD=33.8

main90520-32002iUCK3#200306-200408

T=1.50,OD=37.7

main90520-46002iUCK30,40,VCK30,40..4HC200208-200306

ID=46.0,T=1.2

main90520-49001iUCK30,40,VCK30,40..4HC200208-200306

ID=49.0,WD=2.3

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-30150iVCK30,40..4HC199902-200108

main35789-30240iUCK30,40199902-200108

35790CLUTCH ASSY, 1 WAY

main35790-0C010iGSK30,UCK3#,4#..5HC200408

main35790-30060iUCK30..SR5;UCK40..USA;VCK30,40..4HC;UCK40..SR5..CND;UCK30..LIMD..USA199902-200208

21 parts on this diagram · 2 diagrams in section
