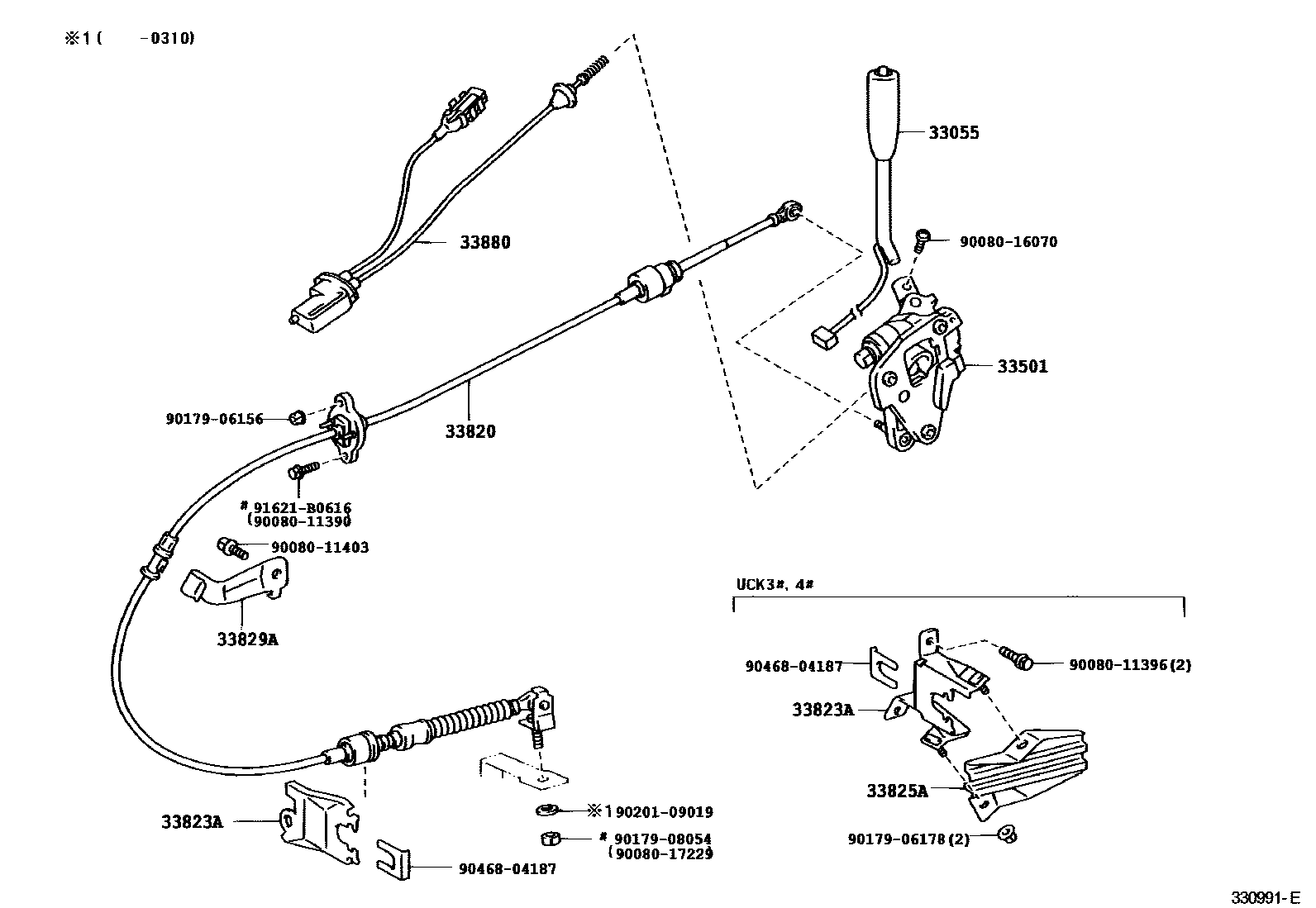

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1

33055LEVER SUB-ASSY, COLUMN SHIFT

main33055-0C010iUCK30,40,VCK30,40..4HC199902-200008

sub33055-0C030

main33055-0C020iUCK30,40,VCK30,40..4HC200008-200408

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-0C010iUCK30,40,VCK30,40..4HC199902-200008

sub33501-0C011

main33501-0C011iUCK30,40,VCK30,40..4HC200008-200408

sub33501-0C012

main33501-0C020iUCK31,41200310-200408

sub33501-0C021

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33820-0C010iVCK30,40..4HC199902-200408

main33820-0C020iUCK30,40199902-200408

main33820-0C030iUCK31,41200310-200408

main33820-0C040iUCK3#,4#200408

main33820-0C060iGSK30..5HC200408

33823ABRACKET, TRANSMISSION CONTROL CABLE

main33823-0C030iUCK3#,4#200408

main33823-0C040iGSK30..5HC200408

main33823-34010iVCK30,40..4HC199902-200408

main33823-34020iUCK3#,4#199902-200408

33825AINSULATOR, TRANSMISSION CONTROL CABLE

main33825-34010iUCK30,40199902-200408

33829ASUPPORT, TRANSMISSION CONTROL CABLE

main33829-0C020iUCK3#,4#,VCK30,40..4HC200310-200408

main33829-34010iUCK30,40,VCK30,40..4HC199902-200006

sub33829-34020

main33829-34020iUCK30,40,VCK30,40..4HC200006-200310

33880CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)

main33880-0C010iUCK30,40,VCK30,40..4HC199902-200408

main33880-0C020iUCK31,41200310-200408

9008011390

main90080-11390

9008011396

main90080-11396

9008011403

main90080-11403

9008016070

main90080-16070

9008017229

main90080-17229

9017906156

main90179-06156

9017906178

main90179-06178

9017908054

main90179-08054

9020109019

main90201-09019

9046804187

main90468-04187

91621B0616

main91621-B0616

18 parts on this diagram · 2 diagrams in section
