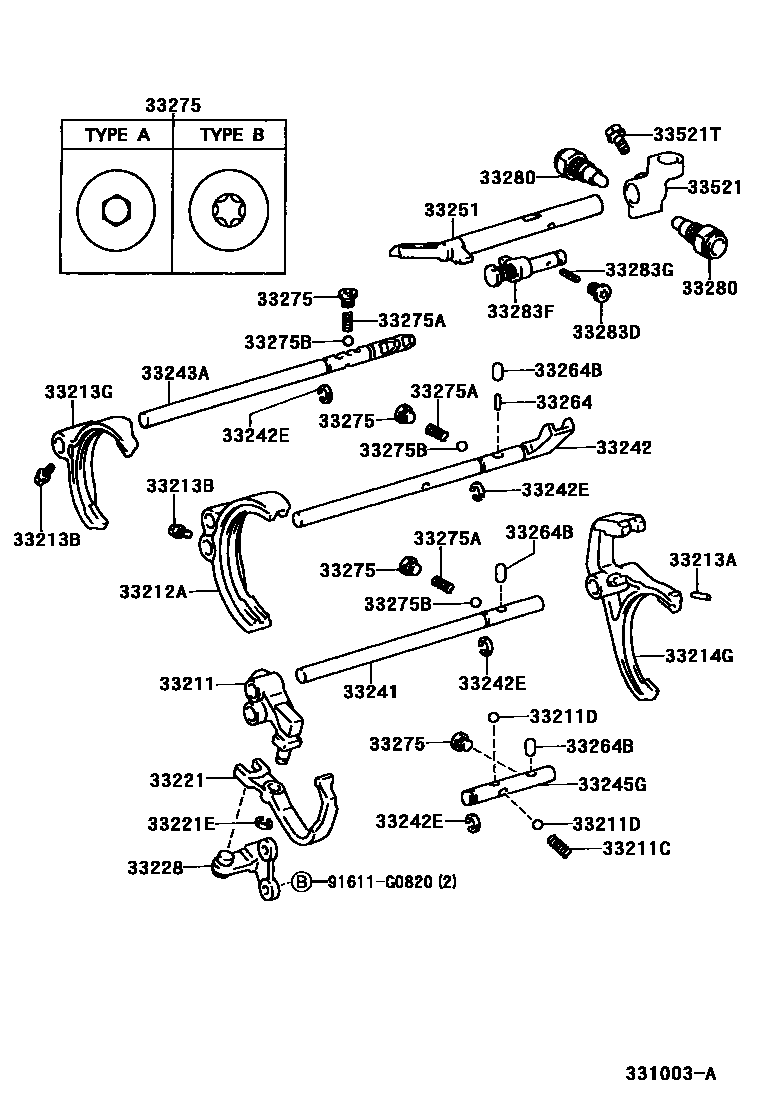

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33211FORK, REVERSE SHIFT
33211CSPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN)
33211DBALL(FOR REVERSE SHIFT FORK)
OD=9.52,STEEL
33212AFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33221ARM, REVERSE SHIFT
33221ERING(FOR REVERSE SHIFT ARM END SHAFT)
33228BRACKET, REVERSE SHIFT ARM
33241SHAFT, REVERSE SHIFT FORK
33242SHAFT, GEAR SHIFT FORK, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=11.5,OD=4.8
L=24.6,OD=6
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
L=13.6,OD=9.5
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=18,TYPE B:REFER TO ILLUSTRATION
OD=17,TYPE A:REFER TO ILLUSTRATION
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=33.8
33275BBALL, SHAFT DETENT
33280PIN ASSY, REVERSE RESTRICT
LH
LH
RH
RH
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283FPIN, REVERSE RESTRICT
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33521HOUSING, SHIFT LEVER
33521TBOLT (FOR SHIFT LEVER HOUSING)
91611G0820
main91611-G0820
29 parts on this diagram · 2 diagrams in section
