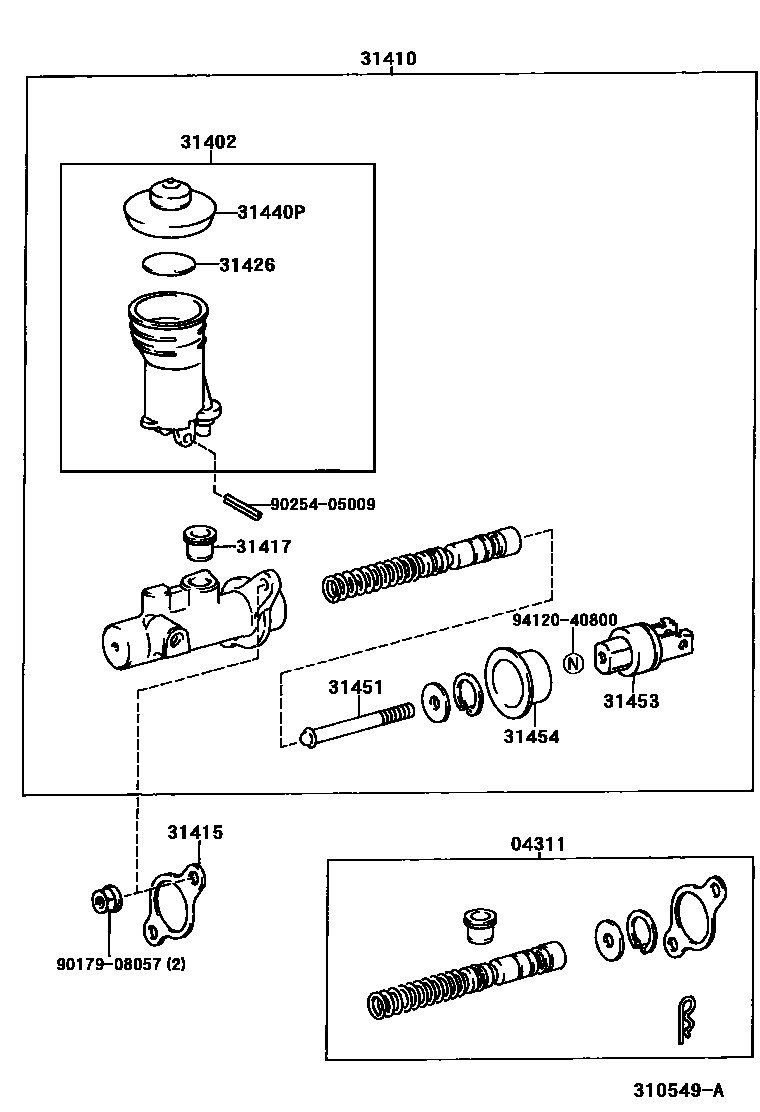

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-34020iVCK30,40..5F199902-200408

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-35120iVCK30,40..5F199902-200408

31410CYLINDER ASSY, CLUTCH MASTER

main31410-34020iVCK30,40..5F199902-200408

main31410-34030iGSK30..6F200408

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iVCK30,40..5F199902-200408

main31415-60020iGSK30..6F200408

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iVCK30,40..5F199902-200408

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iVCK30,40..5F199902-200408

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-35020iVCK30,40..5F199902-200408

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-35080iVCK30,40..5F199902-200408

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-17010iVCK30,40..5F199902-200408

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iVCK30,40..5F199902-200408

9017908057

main90179-08057

9025405009

main90254-05009

9412040800

main94120-40800

13 parts on this diagram · 2 diagrams in section
