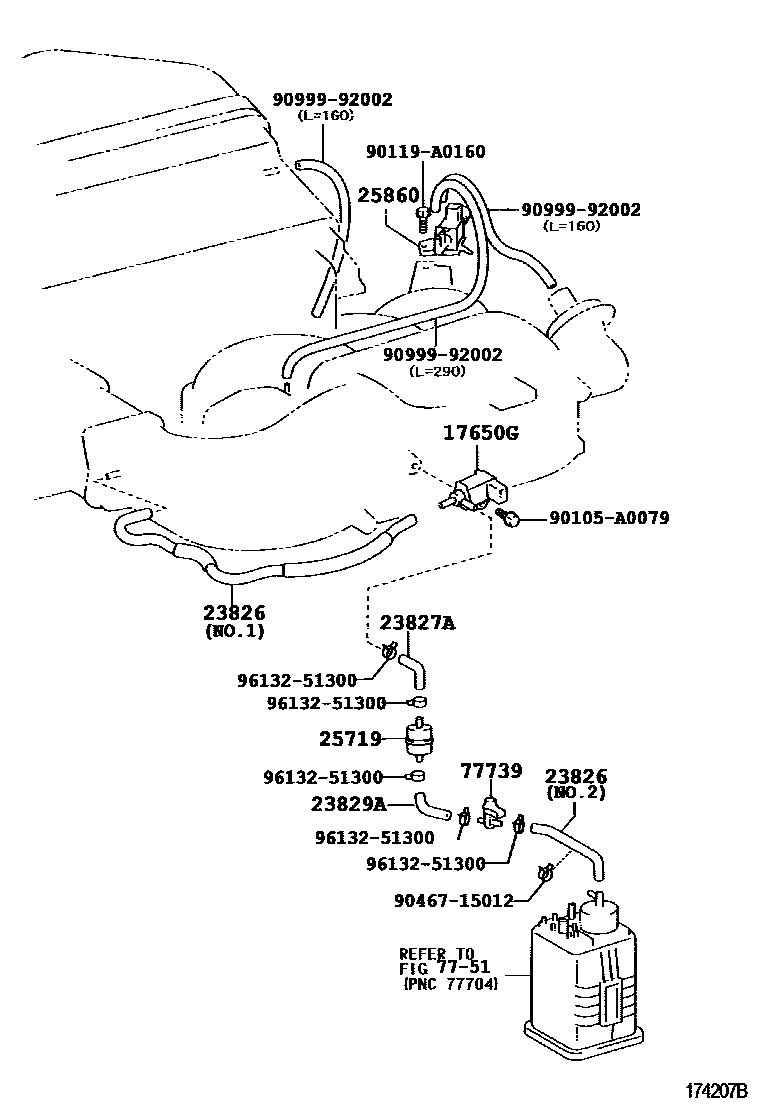

VACUUM PIPING
17650VALVE ASSY, VACUUM SWITCHING
17650GVALVE, DUTY VACUUM SWITCHING
23826HOSE, FUEL VAPOR FEED, NO.1
NO.2
NO.1
NO.2
NO.2
NO.1
NO.2
NO.1
23827AHOSE, FUEL VAPOR FEED, NO.2
NO.2
NO.1
NO.2
NO.1
25719TANK, VACUUM SURGE
25860VALVE ASSY, VACUUM SWITCHING, NO.1
NO.2
NO.1
7751
77739VALVE, EVAP SERVICE PORT
sub77739-33010
90105A0079
main90105-A0079
90119A0160
main90119-A0160
9046715012
main90467-15012
9099992002
main90999-92002
9613251300
main96132-51300
14 parts on this diagram · 8 diagrams in section
