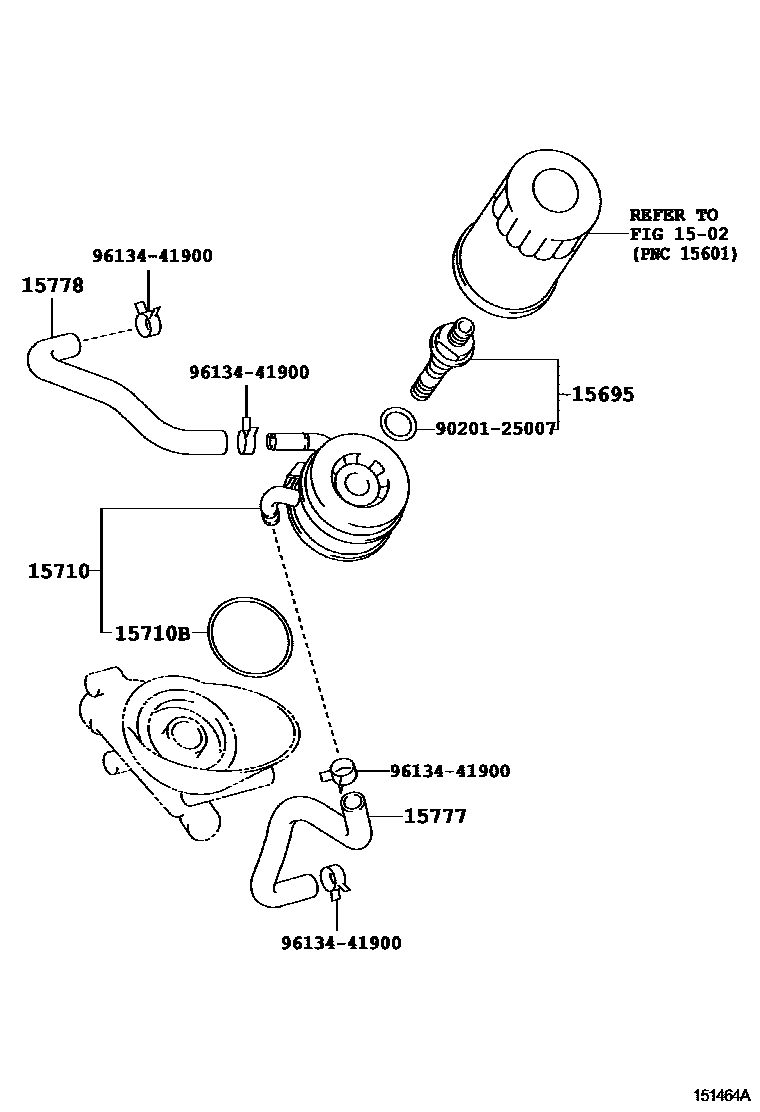

ENGINE OIL COOLER

0001 1 0002 1 0003 1

1502

15695BOLT, OIL COOLER UNION

main15695-22010i1GRFE..GSK30¥1,120200408

15710COOLER ASSY, OIL

main15710-31010i1GRFE..GSK30¥33,800200408

main15710-50030i2UZFE..UCK30,40¥60,100199902-200408

15710BRING, O(FOR OIL COOLER)

main90301-67004i2UZFE..UCK30,40¥0199902-200612

15777HOSE, OIL COOLER

main15777-31010i1GRFE..GSK30¥1,290200408

main15777-50060i2UZFE..UCK3#,4#¥2,060199902-200408

main15777-62020i5VZFE..VCK40;5VZFE..VCK30..5F¥1,710199902-200408

15778HOSE, OIL COOLER, NO.2

main15778-31010i1GRFE..GSK30¥1,520200408

9020125007

main90201-25007¥100

9613441900

main96134-41900¥90

8 parts on this diagram · 3 diagrams in section
