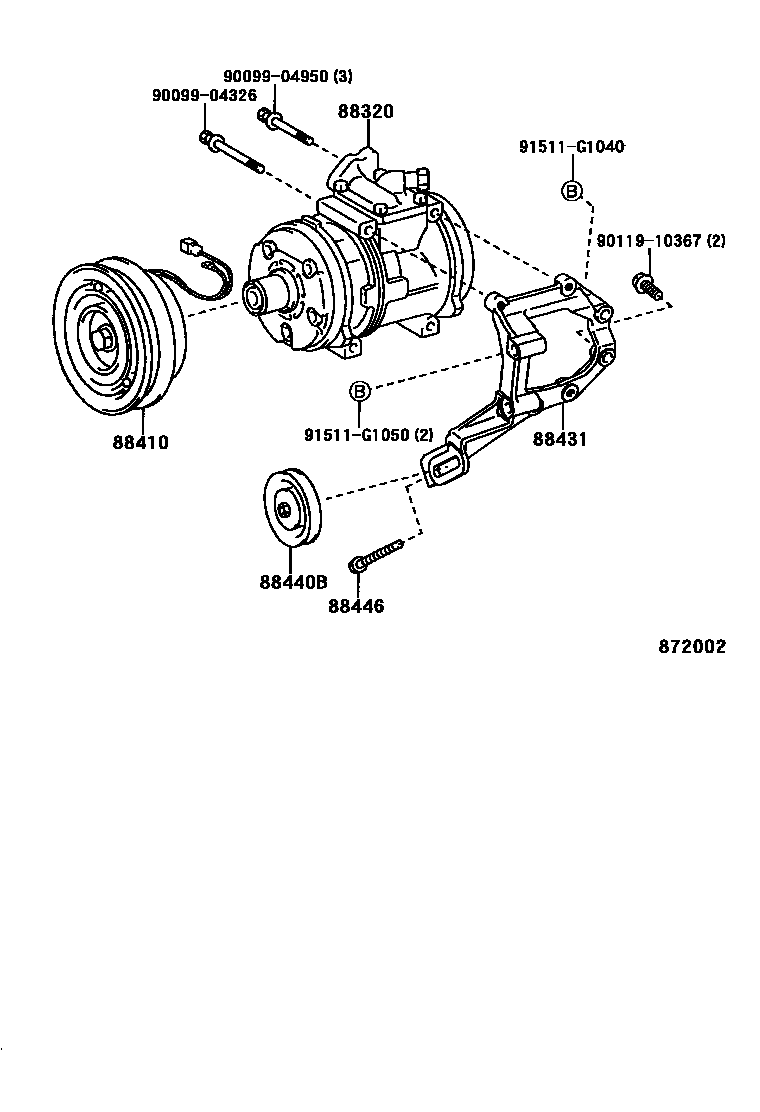

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

88320COMPRESSOR ASSY, COOLER

main88320-34010iRCK10,VCK10,20199208

sub88320-35H92

main88320-34030iVCK11,21199408

sub88320-60H91

88410CLUTCH ASSY, MAGNET

main88410-34010iVCK10,20199208-199408

main88410-34020iRCK10199310

main88410-34040iVCK11,21199408

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-34010iVCK10,20199208-199408

main88431-34020iRCK10199310

main88431-34030iVCK11,21199408

88440BPULLEY ASSY, IDLE

main88440-20160iRCK10199310

main88440-26100iVCK11,21199408

main88440-35040iVCK10,20199208-199408

sub88440-35020

88446BOLT, IDLE PULLEY

main88446-35030iVCK10,20199208-199408

9009904326

main90099-04326

9009904950

main90099-04950

9011910367

main90119-10367

91511G1040

main91511-G1040

91511G1050

main91511-G1050

10 parts on this diagram · 5 diagrams in section
