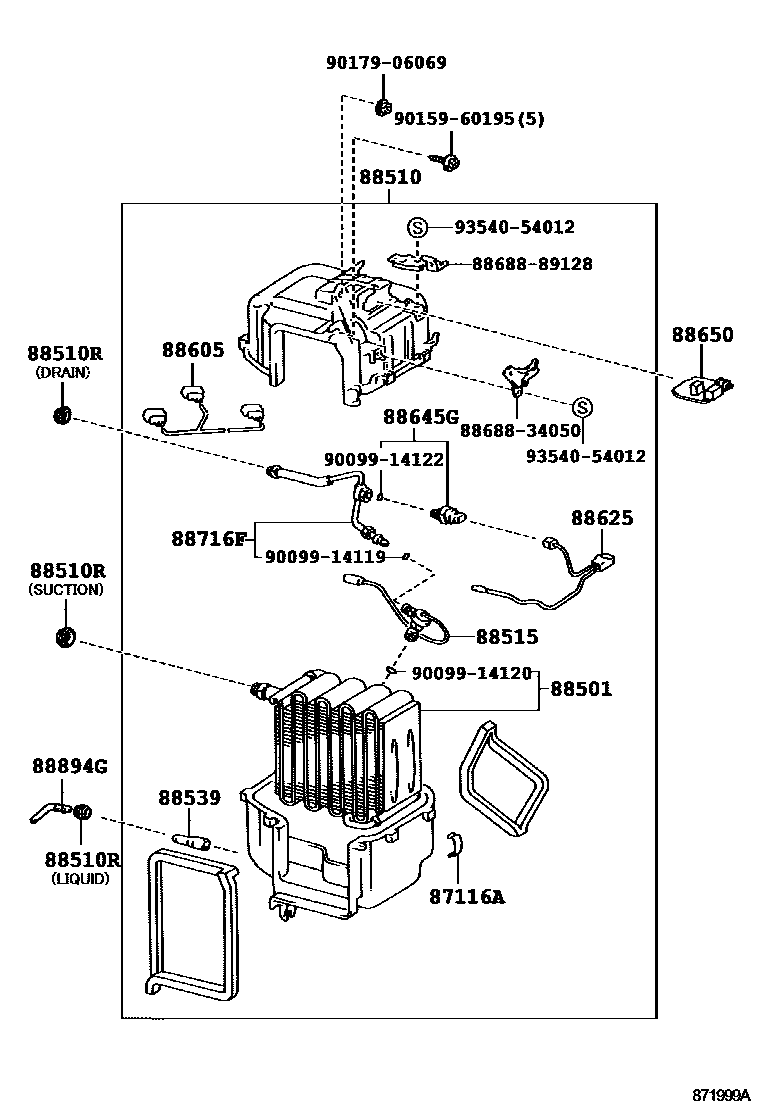

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iRCK10,VCK1#,2#199208

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-34010iRCK10,VCK1#,2#199208

88510UNIT ASSY, COOLER

main88510-34010iVCK10,20199208-199408

main88510-34030iRCK10,VCK11,21..USA199310

MAKER OPTION

main88510-34050iRCK10,VCK11,21..USA199310

DEALER OPTION

main88510-34050iVCK11,21..CND199408

88510RGROMMET (FOR COOLER UNIT)

main90480-26022iRCK10,VCK1#,2#199208

LIQUID

main90480-26027iRCK10,VCK1#,2#199208

DRAIN

main90480-36019iRCK10,VCK1#,2#199208

SUCTION

88515VALVE, COOLER EXPANSION

main88515-34010iRCK10,VCK1#,2#199208

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-89113iRCK10,VCK1#,2#199208

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-34010iVCK10,20..USA199208-199408

main88605-34020iRCK10,VCK11,21199310

88625THERMISTOR, COOLER, NO.1

main88625-34010iRCK10,VCK1#,2#199208

88645GSWITCH, PRESSURE

main88645-34010iRCK10,VCK1#,2#199208

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-34010iRCK10,VCK11,21199310

main88650-89113iVCK10,20199208-199408

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-34010iRCK10,VCK1#,2#199208

88894GCONNECTOR, DRAIN HOSE

main88894-34010iRCK10199310-199408

main88894-34010iVCK10,20..USA199208-199408

MAKER OPTION

main88894-89109iVCK10,20..USA199208-199408

DEALER OPTION

8868834050BRACKET, COOLER DIAPHRAGM

main88688-34050

8868889128BRACKET, COOLER DIAPHRAGM

main88688-89128

9009914119

main90099-14119

9009914120

main90099-14120

9009914122

main90099-14122

9015960195

main90159-60195

9017906069

main90179-06069

9354054012

main93540-54012

20 parts on this diagram · 2 diagrams in section
