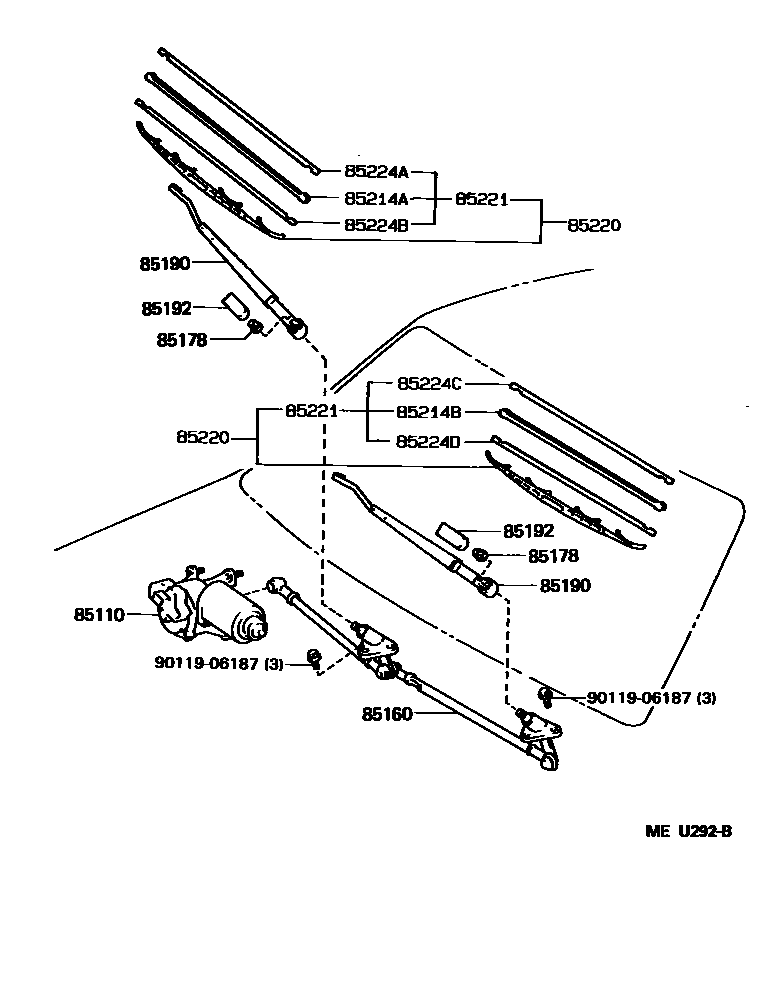

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0W010iVCK11,21..CND199408

COLD SPEC

main85110-34010iRCK10,VCK1#,2#..USA199208

sub85110-34020

main85110-34020iVCK10,20..CND199208-199408

COLD SPEC

85160LINK ASSY, WINDSHIELD WIPER

main85150-34010iRCK10,VCK1#,2#..USA199208

sub85150-34020

main85150-34020iVCK1#,2#..CND199208

COLD SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113iRCK10,VCK1#,2#199208

85190ARM ASSY, WINDSHIELD WIPER

main85211-34010iRCK10,VCK1#,2#199208

RH

main85221-34010iRCK10,VCK1#,2#199208

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iRCK10,VCK1#,2#199208

85214ARUBBER, WIPER, RH

main85214-34010iRCK10,VCK11,21199505

sub85214-60020

85214BRUBBER, WIPER, LH

main85214-34010iRCK10,VCK11,21199505

sub85214-60020

85220BLADE ASSY, WINDSHIELD WIPER

main85212-34010iVCK10,20199208-199212

RH

sub85212-34011

main85212-34011iRCK10,VCK1#,2#199212-199612

RH

sub85212-34012

main85212-34012iRCK10,VCK11,21199612

RH

main85222-34010iVCK10,20199208-199212

LH

sub85222-34011

main85222-34011iRCK10,VCK1#,2#199212-199612

LH

sub85222-34012

main85222-34012iRCK10,VCK11,21199612

LH

85221BLADE, WINDSHIELD WIPER

main85213-33041iRCK10,VCK1#,2#199212-199505

RH

sub85214-33020

main85223-34010iVCK10,20199208-199212

LH

sub85223-34011

main85223-34011iRCK10,VCK1#,2#199212-199505

LH

sub85214-33020

main85223-34011iRCK10,VCK11,21199505

sub85214-33020

main85223-3H011iVCK10,20199208-199212

RH

sub85213-33041

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-20300iRCK10,VCK11,21199505

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-20300iRCK10,VCK11,21199505

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-34010iRCK10,VCK11,21199505

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-34010iRCK10,VCK11,21199505

9011906187

main90119-06187

14 parts on this diagram · 1 diagram in section
