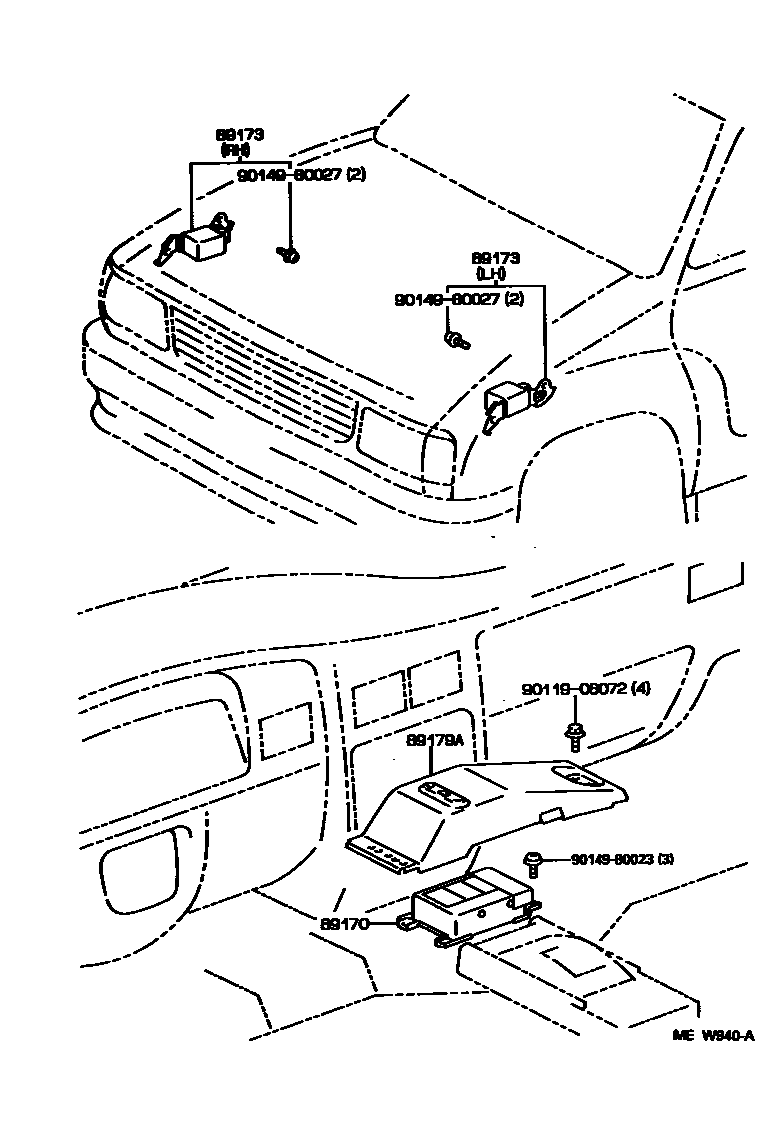

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-34010iRCK10,VCK10,20..USA199308-199408

main89170-34020iRCK10,VCK11,21199408-199608

sub89170-34021

main89170-34030iVCK11,21;RCK10..ATM199608

89173SENSOR, AIRBAG, FRONT

main89173-39055iVCK11,21;RCK10,VCK10,20..USA199308

RH

main89173-39065iVCK11,21;RCK10,VCK10,20..USA199308

LH

89179ACOVER, AIRBAG SENSOR

main89179-34010iRCK10,VCK10199308-199408

main89179-34020iVCK20..USA199308-199408

9011906072

main90119-06072

9014980023

main90149-80023

9014980027

main90149-80027

6 parts on this diagram · 1 diagram in section
