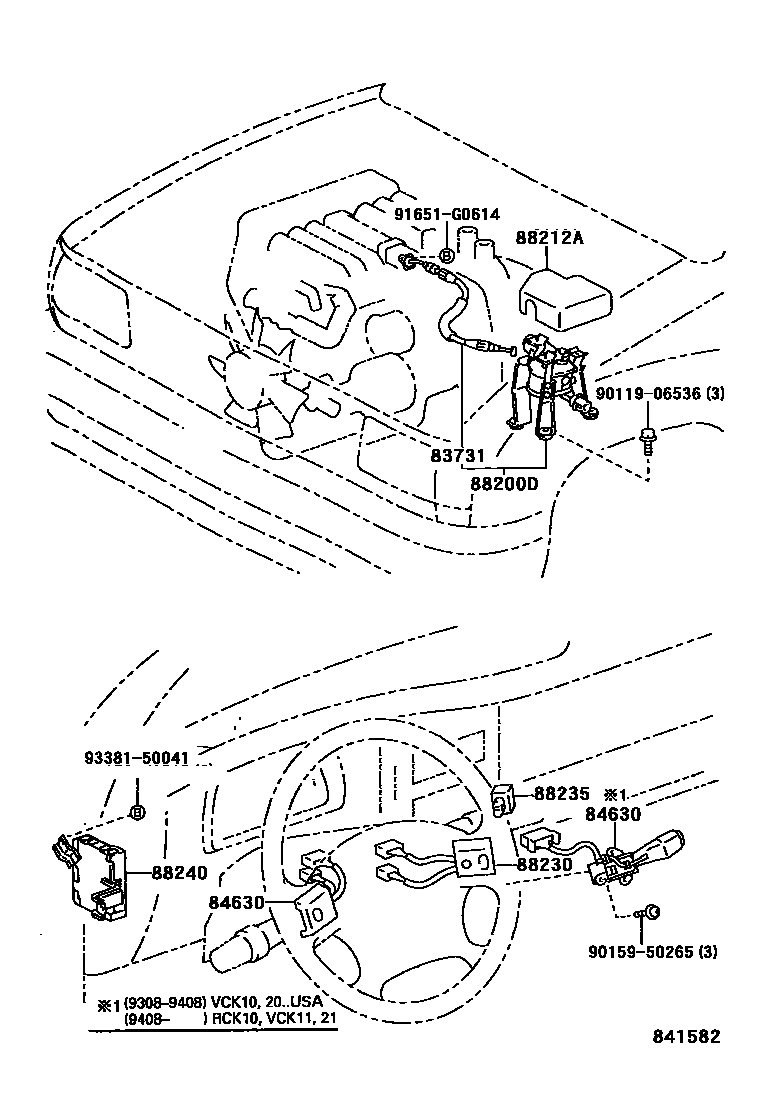

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

83731CABLE, CRUISE CONTROL

main83731-34010iVCK10,20..STD199208-199408

W(CRUISE CONTROL)

main83731-34020iVCK11,21..SR5199408-199608

W(CRUISE CONTROL)

main83731-34030iVCK11,21199608

W(CRUISE CONTROL)

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-30150iVCK11,21;RCK10,VCK10,20..USA199308-199508

main84630-35050-B0iVCK10,20..CND199208-199408

MEDIUM GRAY,TRIM1#

sub84630-35050

main84630-35050-E1iVCK10,20199208-199408

OAK,TRIM4#

sub84630-35050

main84630-35050-J0iVCK10,20199208-199408

MEDIUM BLUE,TRIM8#

sub84630-35050

88200DACTUATOR ASSY, CRUISE CONTROL

main88001-0W020iVCK11,21199608

W(CRUISE CONTROL)

main88002-34010iVCK10,20..STD199208-199408

W(CRUISE CONTROL)

main88002-34020iVCK11,21..DLX,STD199408-199608

W(CRUISE CONTROL)

main88200-34010iRCK10199310-199508

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-34010iVCK10,20..STD199208-199408

W(CRUISE CONTROL)

main88212-34030iVCK11,21..DLX,STD199408-199608

W(CRUISE CONTROL)

88230SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL

main88230-35030-B0iVCK10,20..CND199208-199408

MEDIUM GRAY,TRIM1#

sub88230-35030

main88230-35030-E1iVCK10,20199208-199408

OAK,TRIM4#

sub88230-35030

main88230-35030-J0iVCK10,20199208-199408

MIDIUM BLUE,TRIM8#

sub88230-35030

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-14030iVCK11,21..MTM199608

W(CRUISE CONTROL)

main88280-33010iVCK1#,2#..MTM..SR5199208-199608

W(CRUISE CONTROL)

main88280-33010iRCK10,VCK1#,2#..MTM..(DLX,STD)199208-199608

88240COMPUTER ASSY, CRUISE CONTROL

main88240-34010iVCK10,20..STD199208-199408

W(CRUISE CONTROL)

main88240-34020iVCK11,21..SR5199508-199608

POWER PACKAGE & W(CRUISE CONTROL)

main88240-34020iVCK11,21..DLX199408-199608

W(CRUISE CONTROL)

9011906536

main90119-06536

9015950265

main90159-50265

91651G0614

main91651-G0614

9338150041

main93381-50041

11 parts on this diagram · 2 diagrams in section
