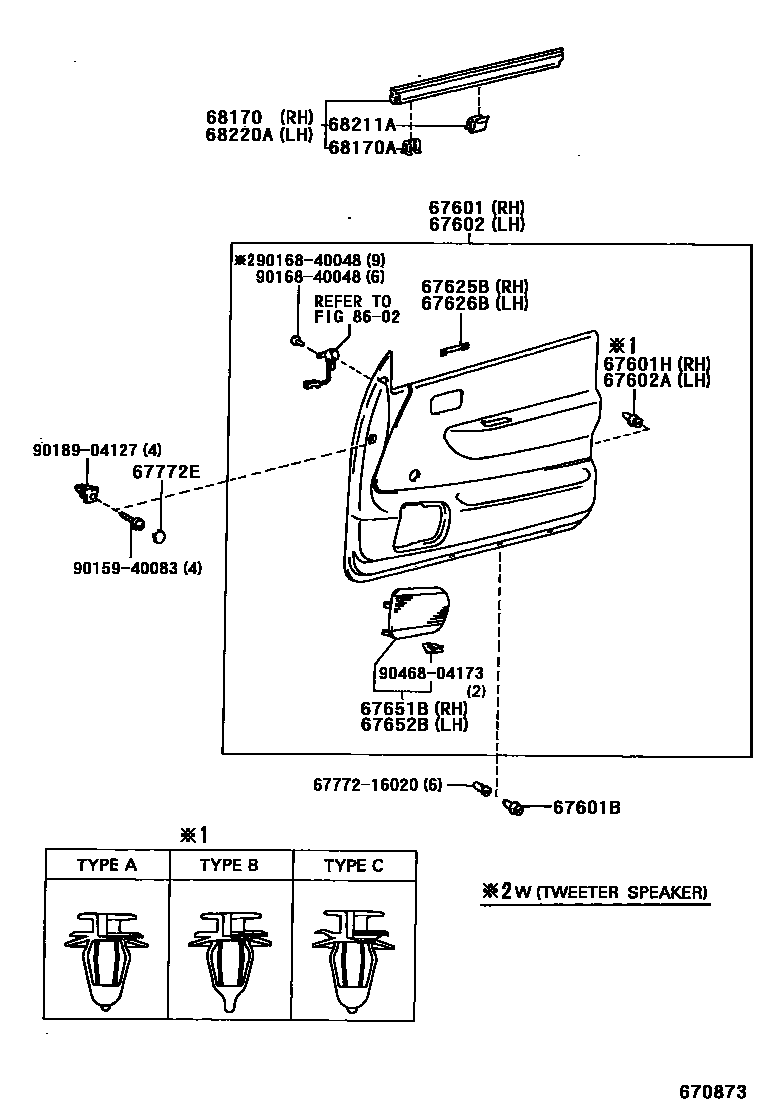

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-34010-B0iRCK10,VCK1#,2#..DLX,STD199208-199608

GRAY,TRIM1#

main67610-34010-B1iRCK10199608-199708

MD. MOON MIST,TRIM1#

main67610-34010-E0iRCK10,VCK1#,2#..DLX,STD199208-199608

OAK,TRIM4#

main67610-34010-J0iRCK10,VCK1#,2#..DLX,STD199208-199608

BLUE,TRIM8#

main67610-34020-B0iVCK1#,2#..SR5199208-199608

GRAY,TRIM1#

main67610-34020-E0iVCK1#,2#..SR5199208-199608

OAK,TRIM4#

main67610-34020-J0iVCK1#,2#..SR5199208-199608

BLUE,TRIM8#

main67610-34030-B0iVCK10,20..SR5199208-199302

W(*PW & *EL),GRAY,TRIM1#

main67610-34030-E0iVCK10,20..SR5199208-199302

W(*PW & *EL),OAK,TRIM4#

main67610-34030-J0iVCK10,20..SR5199208-199302

W(*PW & *EL),BLUE,TRIM8#

main67610-34040-B0iVCK10,20..SR5199208-199302

W(*PW & *EL & TWEETER SPEAKER),GRAY,TRIM1#

main67610-34040-E0iVCK10,20..SR5199208-199302

W(*PW & *EL & TWEETER SPEAKER),OAK,TRIM4#

main67610-34040-J0iVCK10,20..SR5199208-199302

W(*PW & *EL & TWEETER SPEAKER),BLUE,TRIM8#

main67610-34050-B0iVCK10,20..SR5199208-199408

W(TWEETER SPEAKER),GRAY,TRIM1#

main67610-34050-E0iVCK10,20..SR5199208-199408

W(TWEETER SPEAKER),OAK,TRIM4#

main67610-34050-J0iVCK10,20..SR5199208-199408

W(TWEETER SPEAKER),BLUE,TRIM8#

main67610-34070-B0iVCK11,21..RCB..SR5199408-199508

W(TWEETER SPEAKER),GRAY,TRIM1#

main67610-34070-E0iVCK11,21..RCB..SR5199408-199508

W(TWEETER SPEAKER),OAK,TRIM4#

main67610-34070-J0iVCK11,21..XTR..SR5199410-199608

W(SPEAKER),BLUE,TRIM8#

main67610-34080-B0iVCK11,21..SR5199408-199608

W(*PW & *EL & TWEETER SPEAKER),GRAY,TRIM1#

main67610-34080-E0iVCK11,21..SR5199408-199608

W(*PW & *EL & TWEETER SPEAKER),OAK,TRIM4#

main67610-34080-J0iVCK11,21..SR5199408-199608

W(*PW & *EL & TWEETER SPEAKER),BLUE,TRIM8#

main67610-34090-B0iVCK11,21199608-199708

MOON MIST,TRIM1#

main67610-34090-E0iVCK11,21199608-199708

OAK,TRIM4#

main67610-34100-B0iVCK11,21199608-199708

W(*PW & *EL),MOON MIST,TRIM1#

main67610-34100-E0iVCK11,21199608-199708

W(*PW & *EL),OAK,TRIM4#

main67610-34110-B0iVCK11,21..SR5199608-199708

W(SPEAKER),MOON MIST,TRIM1#

main67610-34110-E0iVCK11,21..SR5199608-199708

W(SPEAKER),OAK,TRIM4#

main67610-34120-B0iVCK11,21..SR5199608-199708

W(*PW & *EL & TWEETER SPEAKER),MOON MIST,TRIM1#

main67610-34120-E0iVCK11,21..SR5199608-199708

W(*PW & *EL & TWEETER SPEAKER),OAK,TRIM4#

main67610-34130-B0iRCK10199708

MD.MOON MIST,TRIM1#

main67610-34130-E0iRCK10199708

OAK,TRIM4#

main67610-34140-B0iVCK11,21199708

MD.MOON MIST,TRIM1#

main67610-34140-E0iVCK11,21199708

OAK,TRIM4#

main67610-34150-B0iVCK11,21199708

W(*PW & *EL),MD.MOON MIST,TRIM1#

main67610-34150-E0iVCK11,21199708

W(*PW & *EL),OAK,TRIM4#

main67610-34160-B0iVCK11,21..SR5199708

W(SPEAKER),MD.MOON MIST,TRIM1#

main67610-34160-E0iVCK11,21..SR5199708

W(SPEAKER),OAK,TRIM4#

main67610-34170-B0iVCK11,21..XTR199708

W(*PW & *EL & TWEETER SPEAKER),MD.MOON MIST,TRIM1#

main67610-34170-E0iVCK11,21..XTR199708

W(*PW & *EL & TWEETER SPEAKER),OAK,TRIM4#

main67611-34010-B0iVCK1#,2#..SR5199302-199608

W(*PW & *EL),GRAY,TRIM1#

main67611-34010-E0iVCK1#,2#..SR5199302-199608

W(*PW & *EL),OAK,TRIM4#

main67611-34010-J0iVCK1#,2#..SR5199302-199608

W(*PW & *EL),BLUE,TRIM8#

main67611-34020-B0iVCK10,20..SR5199302-199408

W(*PW & *EL & TWEETER SPEAKER),GRAY,TRIM1#

main67611-34020-E0iVCK10,20..SR5199302-199408

W(*PW & *EL & TWEETER SPEAKER),OAK,TRIM4#

main67611-34020-J0iVCK10,20..SR5199302-199408

W(*PW & *EL & TWEETER SPEAKER),BLUE,TRIM8#

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07145-B0×6iRCK10,VCK10,20199208-199408

GRAY,TRIM1#

main90467-07145-C0×6iRCK10,VCK11,21199608

BLACK,TRIM1#,4#

main90467-07145-E0×6iRCK10,VCK10,20199208-199408

OAK,TRIM4#

main90467-07145-J0×6iRCK10,VCK10,20199208-199408

BLUE,TRIM8#

67601HRETAINER, DOOR TRIM, RH

main67771-16080×4iRCK10,VCK1#,2#199212

TYPE A

main67771-20110×4iRCK10,VCK1#,2#199212-199505

TYPE B

main67771-28020×4iRCK10,VCK11,21199505

TYPE B

main67771-89111iRCK10,VCK1#,2#199212

TYPE C

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-34010-B0iRCK10,VCK1#,2#..DLX,STD199208-199608

GRAY,TRIM1#

main67620-34010-B1iRCK10199608-199708

MD. MOON MIST,TRIM1#

main67620-34010-E0iRCK10199608-199708

OAK,TRIM4#

main67620-34010-J0iRCK10,VCK1#,2#..DLX,STD199208-199608

BLUE,TRIM8#

main67620-34020-B0iVCK1#,2#..SR5199208-199608

GRAY,TRIM1#

main67620-34020-E0iVCK1#,2#..SR5199208-199608

OAK,TRIM4#

main67620-34020-J0iVCK1#,2#..SR5199208-199608

BLUE,TRIM8#

main67620-34030-B0iVCK10,20..SR5199208-199302

W(*PW & *EL),GRAY,TRIM1#

main67620-34030-E0iVCK10,20..SR5199208-199302

W(*PW & *EL),OAK,TRIM4#

main67620-34030-J0iVCK10,20..SR5199208-199302

W(*PW & *EL),BLUE,TRIM8#

main67620-34040-B0iVCK10,20..SR5199208-199302

W(*PW & *EL & TWEETER SPEAKER),GRAY,TRIM1#

main67620-34040-E0iVCK10,20..SR5199208-199302

W(*PW & *EL & TWEETER SPEAKER),OAK,TRIM4#

main67620-34040-J0iVCK10,20..SR5199208-199302

W(*PW & *EL & TWEETER SPEAKER),BLUE,TRIM8#

main67620-34050-B0iVCK10,20..SR5199208-199408

W(TWEETER SPEAKER),GRAY,TRIM1#

main67620-34050-E0iVCK10,20..SR5199208-199408

W(TWEETER SPEAKER),OAK,TRIM4#

main67620-34050-J0iVCK10,20..SR5199208-199408

W(TWEETER SPEAKER),BLUE,TRIM8#

main67620-34070-B0iVCK1#,2#..SR5199302-199608

W(*PW & *EL),GRAY,TRIM1#

main67620-34070-E0iVCK1#,2#..SR5199302-199608

W(*PW & *EL),OAK,TRIM4#

main67620-34070-J0iVCK1#,2#..SR5199302-199608

W(*PW & *EL),BLUE,TRIM8#

main67620-34080-B0iVCK10,20..SR5199302-199408

W(*PW & *EL & TWEETER SPEAKER),GRAY,TRIM1#

main67620-34080-E0iVCK10,20..SR5199302-199408

W(*PW & *EL & TWEETER SPEAKER),OAK,TRIM4#

main67620-34080-J0iVCK10,20..SR5199302-199408

W(*PW & *EL & TWEETER SPEAKER),BLUE,TRIM8#

main67620-34090-B0iVCK11,21..XTR..SR5199410-199608

W(SPEAKER),GRAY,TRIM1#

main67620-34090-E0iVCK11,21..XTR..SR5199410-199608

W(SPEAKER),OAK,TRIM4#

main67620-34090-J0iVCK11,21..XTR..SR5199410-199608

W(SPEAKER),BLUE,TRIM8#

main67620-34100-B0iVCK11,21..SR5199408-199608

W(*PW & *EL & TWEETER SPEAKER),GRAY,TRIM1#

main67620-34100-E0iVCK11,21..SR5199408-199608

W(*PW & *EL & TWEETER SPEAKER),OAK,TRIM4#

main67620-34100-J0iVCK11,21..SR5199408-199608

W(*PW & *EL & TWEETER SPEAKER),BLUE,TRIM8#

main67620-34110-B0iVCK11,21199608-199708

MOON MIST,TRIM1#

main67620-34110-E0iVCK11,21199608-199708

OAK,TRIM4#

main67620-34120-B0iVCK11,21199608-199708

W(*PW & *EL),MOON MIST,TRIM1#

main67620-34120-E0iVCK11,21199608-199708

W(*PW & *EL),OAK,TRIM4#

main67620-34130-B0iVCK11,21..SR5199608-199708

W(SPEAKER),MOON MIST,TRIM1#

main67620-34130-E0iVCK11,21..SR5199608-199708

W(SPEAKER),OAK,TRIM4#

main67620-34140-B0iVCK11,21..SR5199608-199708

W(*PW & *EL & TWEETER SPEAKER),MOON MIST,TRIM1#

main67620-34140-E0iVCK11,21..SR5199608-199708

W(*PW & *EL & TWEETER SPEAKER),OAK,TRIM4#

main67620-34150-B0iRCK10199708

MD.MOON MIST,TRIM1#

main67620-34150-E1iRCK10199708

OAK,TRIM4#

main67620-34160-B0iVCK11,21199708

MD.MOON MIST,TRIM1#

main67620-34160-E0iVCK11,21199708

OAK,TRIM4#

main67620-34170-B0iVCK11,21199708

W(*PW & *EL),MD.MOON MIST,TRIM1#

main67620-34170-E0iVCK11,21199708

W(*PW & *EL),OAK,TRIM4#

main67620-34180-B0iVCK11,21..SR5199708

W(SPEAKER),MD.MOON MIST,TRIM1#

main67620-34180-E0iVCK11,21..SR5199708

W(SPEAKER),OAK,TRIM4#

main67620-34190-B0iVCK11,21..XTR199708

W(*PW & *EL & TWEETER SPEAKER),MD.MOON MIST,TRIM1#

main67620-34190-E0iVCK11,21..XTR199708

W(*PW & *EL & TWEETER SPEAKER),OAK,TRIM4#

67602ARETAINER, DOOR TRIM, LH

main67771-16080×9iVCK10,20199208-199212

main67771-20110×4iRCK10,VCK1#,2#199212-199505

TYPE B

main67771-28020×4iRCK10,VCK11,21199505

TYPE B

main67771-89111iRCK10,VCK1#,2#199212

TYPE C

67625BBRACKET, DOOR TRIM, NO.1 RH

main67625-34010×2iRCK10,VCK1#,2#199208

67626BBRACKET, DOOR TRIM, NO.2 RH

main67625-34010×2iRCK10,VCK1#,2#199208

67651BGRILLE, SPEAKER DOOR, RH

main67651-34010-B0iRCK10,VCK1#,2#199208-199608

GRAY,TRIM1#

main67651-34010-B1iRCK10,VCK11,21199608

MD. MOON MIST,TRIM1#

main67651-34010-E0iRCK10,VCK1#,2#199208

OAK,TRIM4#

main67651-34010-J0iRCK10,VCK1#,2#199208-199608

BLUE,TRIM8#

main67651-34020-B0iVCK10,20..SR5199208-199408

W(7 SPEAKERS),GRAY,TRIM1#

main67651-34020-E0iVCK10,20..SR5199208-199408

W(7 SPEAKERS),OAK,TRIM4#

main67651-34020-J0iVCK10,20..SR5199208-199408

W(7 SPEAKERS),BLUE,TRIM8#

67652BGRILLE, SPEAKER DOOR, LH

main67652-34010-B0iRCK10,VCK1#,2#199208-199608

GRAY,TRIM1#

main67652-34010-B1iRCK10,VCK11,21199608

MD. MOON MIST,TRIM1#

main67652-34010-E0iRCK10,VCK1#,2#199208

OAK,TRIM4#

main67652-34010-J0iRCK10,VCK1#,2#199208-199608

BLUE,TRIM8#

main67652-34020-B0iVCK10,20..SR5199208-199408

W(7 SPEAKERS),GRAY,TRIM1#

main67652-34020-E0iVCK10,20..SR5199208-199408

W(7 SPEAKERS),OAK,TRIM4#

main67652-34020-J0iVCK10,20..SR5199208-199408

W(7 SPEAKERS),BLUE,TRIM8#

67772ECAP, FRONT DOOR TRIM RETAINER

main67772-34020-B0×4iRCK10,VCK1#,2#199208-199608

GRAY,TRIM1#

main67772-34020-B1×4iRCK10,VCK11,21199608

MD. MOON MIST,TRIM1#

main67772-34020-E0×4iRCK10,VCK1#,2#199208

OAK,TRIM4#

main67772-34020-J0×4iRCK10,VCK1#,2#199208-199608

BLUE,TRIM8#

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-34010iRCK10,VCK1#,2#199208

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-34010×8iRCK10,VCK1#,2#199208

68211ACLIP, DOOR BELT MOULDING

main68214-34010×4iRCK10,VCK1#,2#199208

68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH

main68220-34010iRCK10,VCK1#,2#199208

8602

6777216020WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-16020

9015940083

main90159-40083

9016840048

main90168-40048

9018904127

main90189-04127

9046804173

main90468-04173

20 parts on this diagram · 3 diagrams in section
