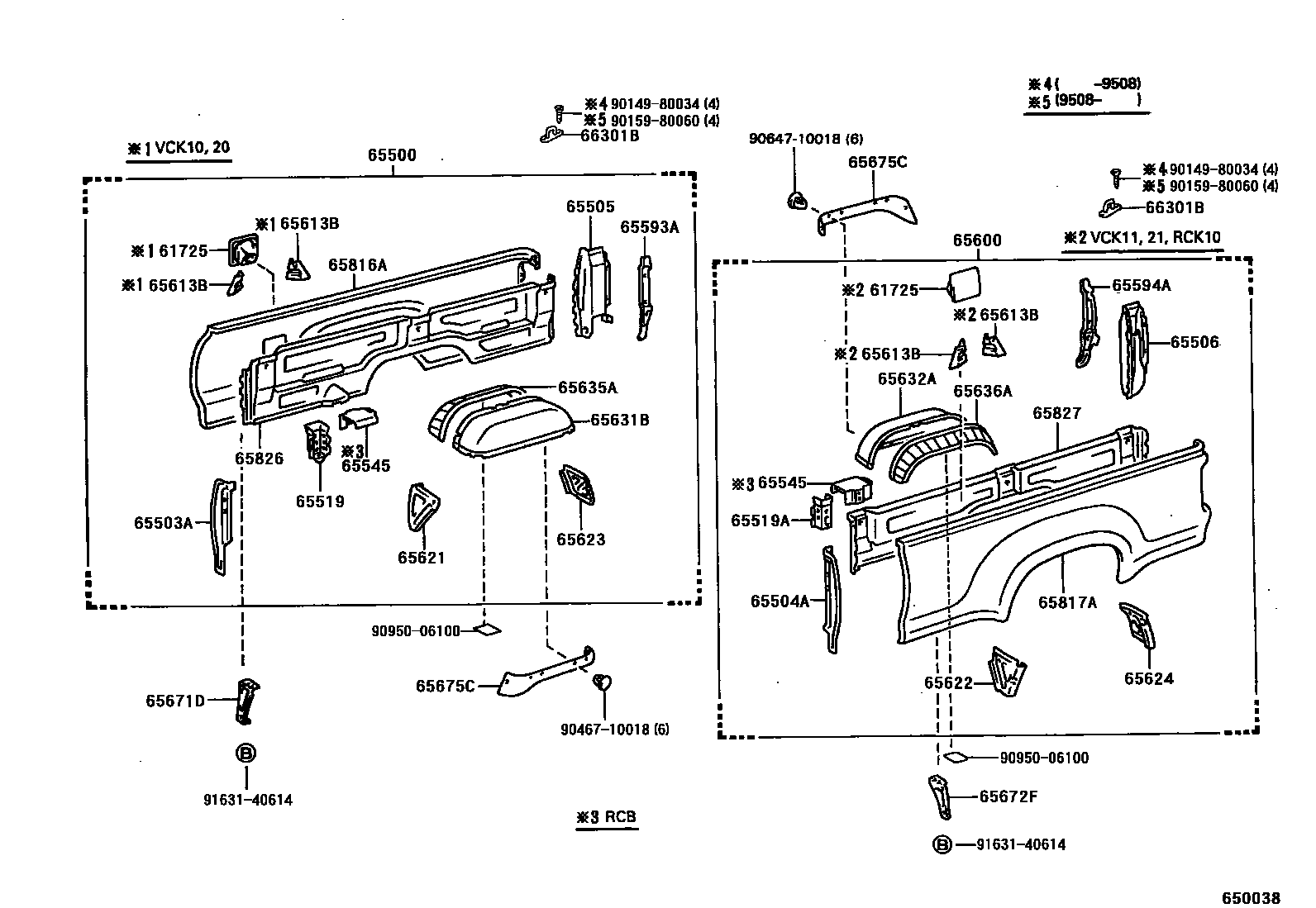

REAR BODY SIDE PANEL

61725BOX, FUEL INLET

main61709-34010iVCK10,20199208-199408

main61709-34020iRCK10199310-199406

main61709-34020iRCK10199406-199408

COLD SPEC

main61709-34030iRCK10,VCK11,21..RCB199406

main61709-34040iVCK11,21..XTR199410

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-34010iVCK10,20..SR5199208-199308

W(PLATING WHEEL ARCH MOULDING)

sub65500-34011

sub93240-28012

main65500-34011iVCK10,20199208-199408

main65500-34070iRCK10,VCK11,21..RCB199310

main65500-34080iVCK11,21..XTR199410

65503APOST SUB-ASSY, SIDE PANEL FRONT END, RH

main65503-34010iRCK10,VCK1#,2#199208

65504APOST SUB-ASSY, SIDE PANEL FRONT END, LH

main65504-34010iRCK10,VCK1#,2#199208

65505POST SUB-ASSY, SIDE PANEL REAR END, RH

main65505-34010iVCK10,20199208-199308

sub65505-34011

sub93240-28012

main65505-34011iRCK10,VCK1#,2#199308

65506POST SUB-ASSY, SIDE PANEL REAR END, LH

main65506-34010iVCK10,20199208-199308

sub65506-34011

sub93240-28012

main65506-34011iRCK10,VCK1#,2#199308

65519BRACKET, TOP RAIL

main65519-34010iRCK10,VCK1#,2#..RCB199208

65519ABRACKET, TOP RAIL

main65519-34010iVCK11,21..XTR199410

65545REINFORCEMENT, SIDE PANEL, NO.1

main65545-34020iRCK10,VCK1#,2#..RCB199208

65593APLATE, SIDE PANEL REAR END POST INSIDE, RH

main61601-34010iRCK10,VCK1#,2#199208

65594APLATE, SIDE PANEL REAR END POST INSIDE, LH

main61602-34010iRCK10,VCK1#,2#199208

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-34010iVCK10,20..SR5199208-199308

W(PLATING WHEEL ARCH MOULDING)

sub65600-34011

sub93240-28012

main65600-34011iVCK10,20199208-199408

main65600-34060iRCK10199310-199408

COLD SPEC

sub65600-34080

main65600-34080iRCK10,VCK11,21..RCB199310

main65600-34090iVCK11,21..XTR199410

65613BRETAINER, REAR BODY PANEL

main65613-34010iRCK10,VCK1#,2#..RCB199208

65621SKIRT, SIDE PANEL, FRONT RH

main65621-34010iRCK10,VCK1#,2#199208

65622SKIRT, SIDE PANEL, FRONT LH

main65622-34010iRCK10,VCK1#,2#199208

65623SKIRT, SIDE PANEL, RR RH

main65623-34010iRCK10,VCK1#,2#199208

65624SKIRT, SIDE PANEL, RR LH

main65624-34010iRCK10,VCK1#,2#199208

65631BPANEL, WHEEL HOUSE, RH

main65631-34021iRCK10,VCK1#,2#199208

65632APLATE, REAR WHEEL HOUSE, FRONT LH

main65632-34021iRCK10,VCK1#,2#199208

65635APANEL, WHEEL HOUSE, REAR RH

main65635-34010iRCK10,VCK1#,2#199208

65636APANEL, WHEEL HOUSE, REAR LH

main65636-34010iRCK10,VCK1#,2#199208

65671DBRACE, SIDE PANEL SKIRT, FRONT RH

main65671-34010iRCK10,VCK1#,2#..RCB199208-199507

65672FBRACE, SIDE PANEL SKIRT, FRONT LH

main65672-34010iRCK10,VCK1#,2#..RCB199208-199507

65675CSEAL, WHEEL HOUSE

main65675-34010iVCK20199208-199308

65816APANEL, REAR BODY SIDE, RH

main65816-34010iVCK10..STD..USA199208-199408

W(MUDGUARD) OR W(ARCH MOULDING)

main65816-34010iVCK20;VCK10..CND199208-199408

W(MUDGUARD)

main65816-34030iVCK10..USA199208-199408

main65816-34050iRCK10199310-199406

main65816-34070iRCK10,VCK11,21..RCB199406

main65816-34070iRCK10199310-199406

W(MUDGUARD)

main65816-34080iVCK11,21..XTR199410

65817APANEL, REAR BODY SIDE, LH

main65817-34010iVCK10..SR5..USA199208-199408

W(MUDGUARD)

main65817-34010iVCK10..SR5..USA199208-199408

W(MUDGUARD) OR W(ARCH MOULDING)

main65817-34030iVCK10..USA199208-199408

main65817-34050iRCK10199310-199406

main65817-34060iRCK10199310-199408

W(MUDGUARD)

sub65817-34070

main65817-34070iRCK10,VCK11,21..RCB199406

main65817-34080iVCK11,21..XTR199410

65826PANEL, REAR BODY SIDE, INNER RH

main65826-34010iVCK10,20199208-199308

sub65826-34011

sub90950-01027

main65826-34011iRCK10,VCK1#,2#..RCB199308

main65826-34020iVCK11,21..XTR199410

65827PANEL, REAR BODY SIDE, INNER LH

main65827-34010iVCK10,20199208-199308

sub65827-34011

sub90950-01027

main65827-34011iRCK10,VCK1#,2#..RCB199308

main65827-34020iVCK11,21..XTR199410

66301BHOOK SUB-ASSY, ROPE

main66312-34010iRCK10,VCK11,21199508

main66312-35010iRCK10,VCK1#,2#199308-199508

9014980034

main90149-80034

9015980060

main90159-80060

9046710018

main90467-10018

9095006100

main90950-06100

9163140614

main91631-40614

34 parts on this diagram · 1 diagram in section
