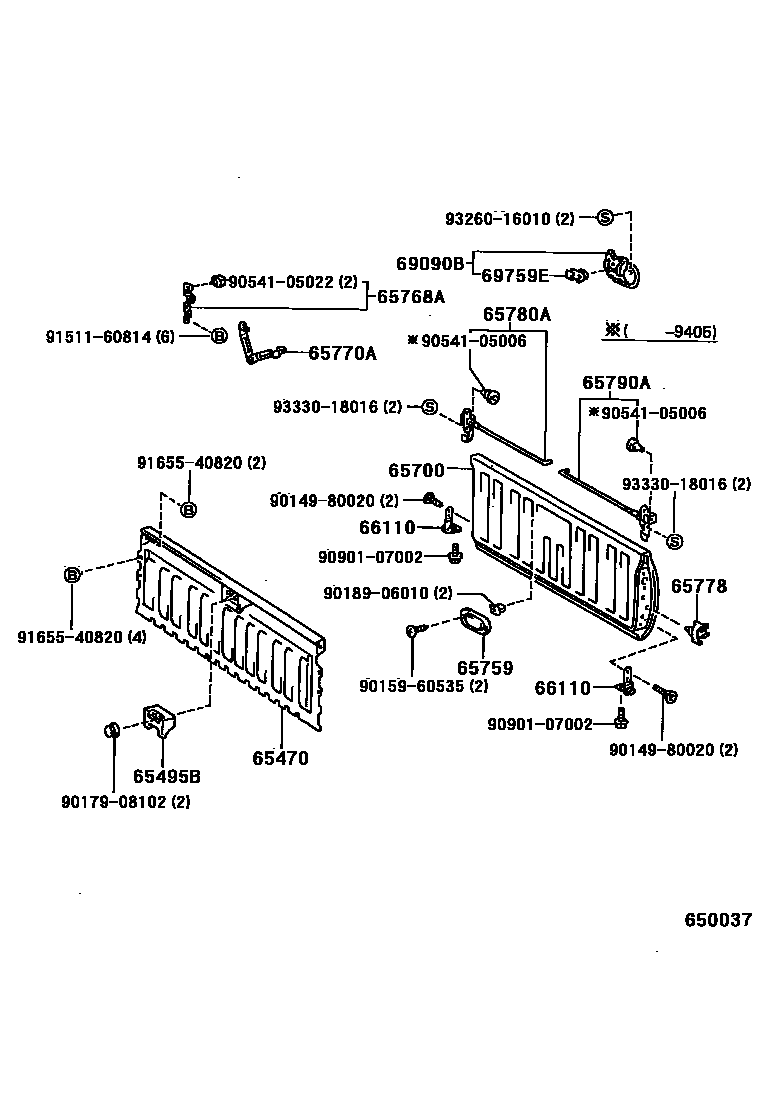

REAR BODY GUARD FRAME & TAIL GATE

65470BOARD ASSY, HEADER

main65405-34010iRCK10,VCK1#,2#199208

65495BWEIGHT, HEADER BOARD

main65495-34010iRCK10,VCK1#,2#..RCB199208

65700GATE ASSY, REAR BODY TAIL

main65700-34010iVCK10,20199208-199211

sub65700-34011

main65700-34011iRCK10,VCK1#,2#199211

65759COVER, TAIL GATE SERVICE HOLE

main65759-34010iRCK10,VCK1#,2#199208

65768ASTRIKER, TAIL GATE LOCK

main65768-34010iRCK10,VCK1#,2#199208-199608

RH

sub65768-34030

main65768-34020iRCK10,VCK1#,2#199208-199608

LH

sub65768-34040

main65768-34030iRCK10,VCK11,21199608

RH

main65768-34040iRCK10,VCK11,21199608

LH

65770ASTAY ASSY, TAIL GATE

main65770-34010iRCK10,VCK1#,2#199208

65778STOPPER, TAIL GATE STAY

main65778-89105iRCK10,VCK1#,2#199208

65780ALOCK ASSY, TAIL GATE, RH

main65780-34010iRCK10,VCK1#,2#199208-199608

sub65780-34020

sub65768-34030

main65780-34020iRCK10,VCK11,21199608

65790ALOCK ASSY, TAIL GATE, LH

main65790-34010iRCK10,VCK1#,2#199208-199608

sub65790-34020

sub65768-34040

main65790-34020iRCK10,VCK11,21199608

66110HINGE ASSY, TAIL GATE

main66110-34010iRCK10,VCK1#,2#199208

RH

main66120-34010iRCK10,VCK1#,2#199208

LH

69090BHANDLE ASSY, TAIL GATE

main69090-34010iVCK11,21;RCK10,VCK10,20..STD199208

main69090-34020iRCK10,VCK10,20..STD199208-199408

W(PLATING)

69759ESNAP, TAIL GATE LOCK LINK

main69759-20100iRCK10,VCK1#,2#199208

RED

main69759-20110iRCK10,VCK1#,2#199208

BLACK

9014980020

main90149-80020

9015960535

main90159-60535

9017908102

main90179-08102

9018906010

main90189-06010

9054105006

main90541-05006

9054105022

main90541-05022

9090107002

main90901-07002

9151160814

main91511-60814

9165540820

main91655-40820

9326016010

main93260-16010

9333018016

main93330-18016

23 parts on this diagram · 1 diagram in section
