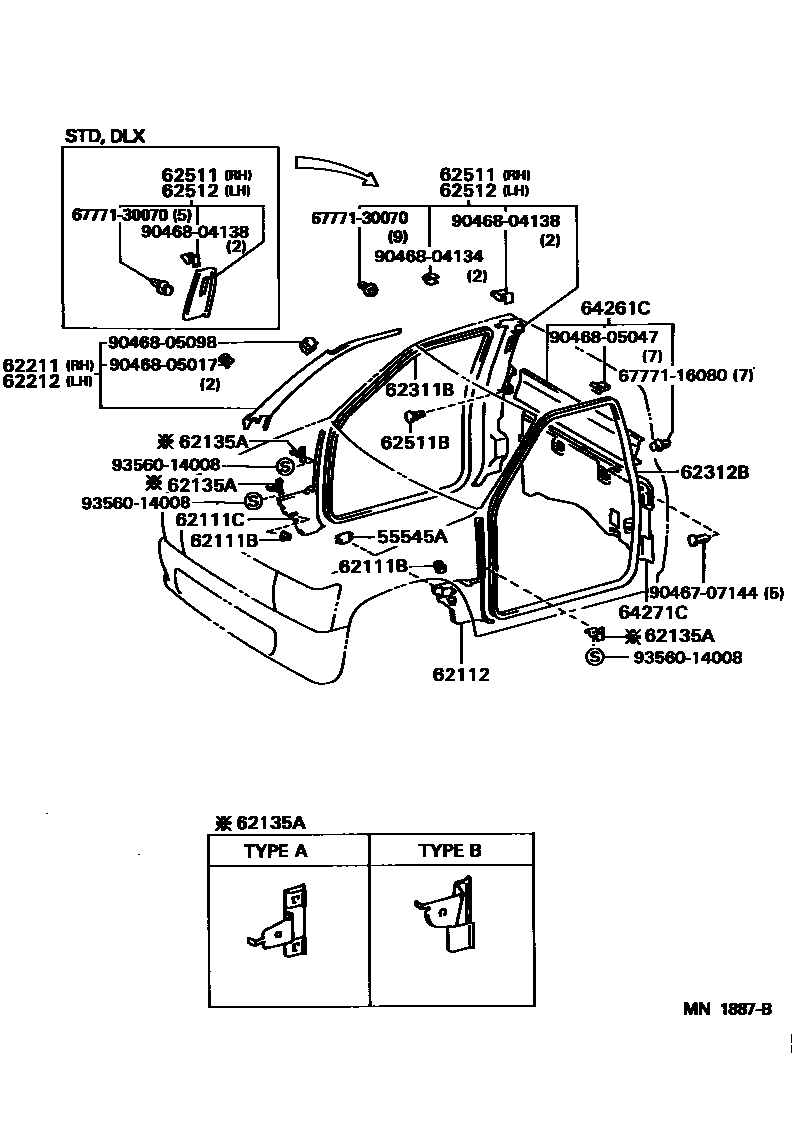

INSIDE TRIM BOARD

0001 1 0002 1

55545ACOVER, FUSE BOX OPENING

main55545-89102-B0iRCK10,VCK1#,2#199208-199608

MEDIUM GRAY,TRIM1#

sub55545-89102

main55545-89102-B1iRCK10,VCK11,21199608

MOON MIST,TRIM1#

sub55545-89102

main55545-89102-E2iRCK10,VCK1#,2#199208

OAK,TRIM4#

sub55545-89102

main55545-89102-J0iRCK10,VCK1#,2#199208-199608

MEDIUM BLUE,TRIM8#

sub55545-89102

62111BCLIP(FOR COWL SIDE TRIM)

main90467-05051-B0iRCK10,VCK1#,2#199208-199608

MEDIUM GRAY,TRIM1#

sub90467-05051

main90467-05051-B2iRCK10,VCK11,21199608

MD.MOON MIST,TRIM1#

sub90467-05051

main90467-05051-E2iRCK10,VCK1#,2#199208

OAK,TRIM4#

sub90467-05051

main90467-05051-J0iRCK10,VCK1#,2#199208-199608

MEDIUM BLUE,TRIM8#

sub90467-05051

62111CBOARD, COWL SIDE TRIM, RH

main62111-34010-B0iRCK10,VCK1#,2#199208-199410

GRAY,TRIM1#

sub62111-34020

main62111-34010-E0iRCK10,VCK1#,2#199208-199410

OAK,TRIM4#

sub62111-34020

main62111-34010-J0iRCK10,VCK1#,2#199208-199410

BLUE,TRIM8#

sub62111-34020

main62111-34020-B0iRCK10,VCK11,21199410-199608

GRAY,TRIM1#

sub62111-34020

main62111-34020-B1iRCK10,VCK11,21199608

MD. MOON MIST,TRIM1#

sub62111-34020

main62111-34020-E0iRCK10,VCK11,21199410

OAK,TRIM4#

sub62111-34020

main62111-34020-J0iRCK10,VCK11,21199410-199608

BLUE,TRIM8#

sub62111-34020

62112BOARD, COWL SIDE TRIM, LH

main62112-34010-B0iRCK10,VCK1#,2#199208-199410

GRAY,TRIM1#

sub62112-34020

main62112-34010-E0iRCK10,VCK1#,2#199208-199410

OAK,TRIM4#

sub62112-34020

main62112-34010-J0iRCK10,VCK1#,2#199208-199410

BLUE,TRIM8#

sub62112-34020

main62112-34020-B0iRCK10,VCK11,21199410-199608

GRAY,TRIM1#

sub62112-34020

main62112-34020-B1iRCK10,VCK11,21199608

MD. MOON MIST,TRIM1#

sub62112-34020

main62112-34020-E0iRCK10,VCK11,21199410

OAK,TRIM4#

sub62112-34020

main62112-34020-J0iRCK10,VCK11,21199410-199608

BLUE,TRIM8#

sub62112-34020

62135ARETAINER, COWL SIDE COVER

main62135-34010iRCK10,VCK1#,2#199208-199405

TYPE A

sub62135-34040

main62135-34020iRCK10,VCK1#,2#199208

TYPE B,RH

main62135-34030iRCK10,VCK1#,2#199208

TYPE B,LH

62211GARNISH, FRONT PILLAR, RH

main62211-34010-B0iVCK2#..RCB..(DLX,STD)199208-199608

GRAY,TRIM1#

sub62211-34070

main62211-34010-B1iVCK21..RCB199608-199708

MD.MOON MIST,TRIM1#

sub62211-34070

main62211-34010-E0iVCK2#..RCB..(DLX,STD)199208-199708

OAK,TRIM4#

sub62211-34070

main62211-34010-J0iVCK2#..RCB..(DLX,STD)199208-199608

BLUE,TRIM8#

sub62211-34070

main62211-34020-B0iVCK2#..SR5;VCK21..XTR..DLX199208-199608

GRAY,TRIM1#

sub62211-34080

main62211-34020-B1iVCK21..XTR199608-199708

MD. MOON MIST,TRIM1#

sub62211-34080

main62211-34020-E0iVCK2#..SR5;VCK21..XTR..DLX199208-199708

OAK,TRIM4#

sub62211-34080

main62211-34020-J0iVCK2#..SR5;VCK21..XTR..DLX199208-199608

BLUE,TRIM8#

sub62211-34080

main62211-34030-B0iRCK10,VCK1#..RCB..(DLX,STD)199208-199608

GRAY,TRIM1#

sub62211-34050

main62211-34030-B1iRCK10,VCK11..RCB199608-199708

MD.MOON MIST,TRIM1#

sub62211-34050

main62211-34030-E0iRCK10,VCK1#..RCB..(DLX,STD)199208-199708

OAK,TRIM4#

sub62211-34050

main62211-34030-J0iRCK10,VCK1#..RCB..(DLX,STD)199208-199608

BLUE,TRIM8#

sub62211-34050

main62211-34040-B0iVCK1#..SR5;VCK11..XTR..DLX199208-199608

GRAY,TRIM1#

sub62211-34060

main62211-34040-B1iVCK11..XTR199608-199708

MD.MOON MIST,TRIM1#

sub62211-34060

main62211-34040-E0iVCK1#..SR5;VCK11..XTR..DLX199208-199708

OAK,TRIM4#

sub62211-34060

main62211-34040-J0iVCK1#..SR5;VCK11..XTR..DLX199208-199608

BLUE,TRIM8#

sub62211-34060

main62211-34050-B0iRCK10,VCK11..RCB199708

MD.MOON MIST,TRIM1#

sub62211-34050

main62211-34050-E0iRCK10,VCK11..RCB199708

OAK,TRIM4#

sub62211-34050

main62211-34060-B0iVCK11..XTR199708

MD.MOON MIST,TRIM1#

sub62211-34060

main62211-34060-E0iVCK11..XTR199708

OAK,TRIM4#

sub62211-34060

main62211-34070-B0iVCK21..RCB199708

MD.MOON MIST,TRIM1#

sub62211-34070

main62211-34070-E0iVCK21..RCB199708

OAK,TRIM4#

sub62211-34070

main62211-34080-B0iVCK21..XTR199708

MD.MOON MIST,TRIM1#

sub62211-34080

main62211-34080-E0iVCK21..XTR199708

OAK,TRIM4#

sub62211-34080

62212GARNISH, FRONT PILLAR, LH

main62212-34010-B0iVCK2#..RCB..(DLX,STD)199208-199608

GRAY,TRIM1#

sub62212-34070

main62212-34010-B1iVCK21..RCB199608-199708

MD.MOON MIST,TRIM1#

sub62212-34070

main62212-34010-E0iVCK2#..RCB..(DLX,STD)199208-199708

OAK,TRIM4#

sub62212-34070

main62212-34010-J0iVCK2#..RCB..(DLX,STD)199208-199608

BLUE,TRIM8#

sub62212-34070

main62212-34020-B0iVCK2#..SR5;VCK21..XTR..DLX199208-199608

GRAY,TRIM1#

sub62212-34080

sub62212-34020

main62212-34020-B1iVCK21..XTR199608-199708

MD. MOON MIST,TRIM1#

sub62212-34080

sub62212-34020

main62212-34020-E0iVCK2#..SR5;VCK21..XTR..DLX199208-199708

OAK,TRIM4#

sub62212-34080

sub62212-34020

main62212-34020-J0iVCK2#..SR5;VCK21..XTR..DLX199208-199608

BLUE,TRIM8#

sub62212-34080

sub62212-34020

main62212-34030-B0iRCK10,VCK1#..RCB..(DLX,STD)199208-199608

GRAY,TRIM1#

sub62212-34050

main62212-34030-B1iRCK10,VCK11..RCB199608-199708

MD.MOON MIST,TRIM1#

sub62212-34050

main62212-34030-E0iRCK10,VCK1#..RCB..(DLX,STD)199208-199708

OAK,TRIM4#

sub62212-34050

main62212-34030-J0iRCK10,VCK1#..RCB..(DLX,STD)199208-199608

BLUE,TRIM8#

sub62212-34050

main62212-34040-B0iVCK1#..SR5;VCK11..XTR..DLX199208-199608

GRAY,TRIM1#

sub62212-34060

main62212-34040-B1iVCK11..XTR199608-199708

MD.MOON MIST,TRIM1#

sub62212-34060

main62212-34040-E0iVCK1#..SR5;VCK11..XTR..DLX199208-199708

OAK,TRIM4#

sub62212-34060

main62212-34040-J0iVCK1#..SR5;VCK11..XTR..DLX199208-199608

BLUE,TRIM8#

sub62212-34060

main62212-34050-B0iRCK10,VCK11..RCB199708

MD.MOON MIST,TRIM1#

sub62212-34050

main62212-34050-E0iRCK10,VCK11..RCB199708

OAK,TRIM4#

sub62212-34050

main62212-34060-B0iVCK11..XTR199708

MD.MOON MIST,TRIM1#

sub62212-34060

main62212-34060-E0iVCK11..XTR199708

OAK,TRIM4#

sub62212-34060

main62212-34070-B0iVCK21..RCB199708

MD.MOON MIST,TRIM1#

sub62212-34070

main62212-34070-E0iVCK21..RCB199708

OAK,TRIM4#

sub62212-34070

main62212-34080-B0iVCK21..XTR199708

MD.MOON MIST,TRIM1#

sub62212-34080

main62212-34080-E0iVCK21..XTR199708

OAK,TRIM4#

sub62212-34080

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-34010iRCK10,VCK1#,2#199208

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-34010iRCK10,VCK1#,2#199208

62511BOARD, QUARTER INSIDE TRIM, RH

main62511-34010-B0iRCK10,VCK1#,2#..RCB..(DLX,STD)199208-199608

GRAY,TRIM1#

sub62511-34010

main62511-34010-B2iRCK10,VCK11,21..RCB199608

MD.MOON MIST,TRIM1#

sub62511-34010

main62511-34010-E0iRCK10,VCK1#,2#..RCB..(DLX,STD)199208

OAK,TRIM4#

sub62511-34010

main62511-34010-J0iRCK10,VCK1#,2#..RCB..(DLX,STD)199208-199608

BLUE,TRIM8#

sub62511-34010

main62511-34020-B0iVCK11,21..XTR199410-199608

GRAY,TRIM1#

main62511-34020-B1iVCK11,21..XTR199608

MD. MOON MIST,TRIM1#

main62511-34020-E0iVCK11,21..XTR199410

OAK,TRIM4#

main62511-34020-J0iVCK11,21..XTR199410-199608

BLUE,TRIM8#

main62511-34030-B0iVCK10,20..SR5199208-199408

GRAY,TRIM1#

sub62511-34030

main62511-34030-B1iVCK11,21..RCB..SR5199408-199508

GRAY,TRIM1#

sub62511-34030

main62511-34030-E0iVCK10,20..SR5199208-199408

OAK,TRIM4#

sub62511-34030

main62511-34030-E1iVCK11,21..RCB..SR5199408-199508

OAK,TRIM4#

sub62511-34030

main62511-34030-J0iVCK10,20..SR5199208-199408

BLUE,TRIM8#

sub62511-34030

main62511-34030-J1iVCK11,21..RCB..SR5199408-199508

BLUE,TRIM8#

sub62511-34030

62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-07069iVCK1#,2#..RCB..SR5199208-199508

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-34010-B0iRCK10,VCK1#,2#..RCB..(DLX,STD)199208-199608

GRAY,TRIM1#

sub62512-34010

main62512-34010-B2iRCK10,VCK11,21..RCB199608

MD.MOON MIST,TRIM1#

sub62512-34010

main62512-34010-E0iRCK10,VCK1#,2#..RCB..(DLX,STD)199208

OAK,TRIM4#

sub62512-34010

main62512-34010-J0iRCK10,VCK1#,2#..RCB..(DLX,STD)199208-199608

BLUE,TRIM8#

sub62512-34010

main62512-34020-B0iVCK11,21..XTR199410-199608

GRAY,TRIM1#

main62512-34020-B1iVCK11,21..XTR199608

MD. MOON MIST,TRIM1#

main62512-34020-E0iVCK11,21..XTR199410

OAK,TRIM4#

main62512-34020-J0iVCK11,21..XTR199410-199608

BLUE,TRIM8#

main62512-34030-B0iVCK10,20..SR5199208-199408

GRAY,TRIM1#

sub62512-34030

main62512-34030-B1iVCK11,21..RCB..SR5199408-199508

GRAY,TRIM1#

sub62512-34030

main62512-34030-E0iVCK10,20..SR5199208-199408

OAK,TRIM4#

sub62512-34030

main62512-34030-E1iVCK11,21..RCB..SR5199408-199508

OAK,TRIM4#

sub62512-34030

main62512-34030-J0iVCK10,20..SR5199208-199408

BLUE,TRIM8#

sub62512-34030

main62512-34030-J1iVCK11,21..RCB..SR5199408-199508

BLUE,TRIM8#

sub62512-34030

64261CGARNISH, BACK PANEL, UPPER

main64261-34010-B0iVCK1#,2#..RCB..SR5199208-199508

GRAY,TRIM1#

main64261-34010-E0iVCK1#,2#..RCB..SR5199208-199508

OAK,TRIM4#

main64261-34010-J0iVCK1#,2#..RCB..SR5199208-199508

BLUE,TRIM8#

main64261-34020-B0iVCK11,21..XTR199410-199608

GRAY,TRIM1#

sub64261-34020

main64261-34020-B1iVCK11,21..XTR199608

MD. MOON MIST,TRIM1#

sub64261-34020

main64261-34020-E0iVCK11,21..XTR199410

OAK,TRIM4#

sub64261-34020

main64261-34020-J0iVCK11,21..XTR199410-199608

BLUE,TRIM8#

sub64261-34020

64271CTRIM, BACK PANEL

main64270-34010-B0iVCK11,21..XTR..DLX199410-199501

GRAY,TRIM1#

sub64270-34030

main64270-34010-E0iVCK11,21..XTR..DLX199410-199501

OAK,TRIM4#

sub64270-34030

main64270-34010-J0iVCK11,21..XTR..DLX199410-199501

BLUE,TRIM8#

sub64270-34030

main64270-34020-B0iVCK11,21..XTR..SR5199410-199501

GRAY,TRIM1#

sub64270-34040

main64270-34020-E0iVCK11,21..XTR..SR5199410-199501

OAK,TRIM4#

sub64270-34040

main64270-34020-J0iVCK11,21..XTR..SR5199410-199501

BLUE,TRIM8#

sub64270-34040

main64270-34030-B0iVCK11,21..XTR..DLX199501-199608

GRAY,TRIM1#

main64270-34030-E0iVCK11,21..XTR..DLX199501-199608

OAK,TRIM4#

main64270-34030-J0iVCK11,21..XTR..DLX199501-199608

BLUE,TRIM8#

main64270-34040-B0iVCK11,21..XTR..SR5199501-199608

GRAY,TRIM1#

main64270-34040-E0iVCK11,21..XTR..SR5199501-199608

OAK,TRIM4#

main64270-34040-J0iVCK11,21..XTR..SR5199501-199608

BLUE,TRIM8#

main64270-34050-B0iVCK11,21..XTR..DLX199608

MOON MIST,TRIM1#

main64270-34050-E0iVCK11,21..XTR..DLX199608

OAK,TRIM4#

main64270-34060-B0iVCK11,21..SR5199608

MOON MIST,TRIM1#

main64270-34060-E0iVCK11,21..SR5199608

OAK,TRIM4#

main64271-34010-B0iVCK10,20..SR5199208-199308

GRAY,TRIM1#

main64271-34010-E0iVCK10,20..SR5199208-199308

OAK,TRIM4#

main64271-34010-J0iVCK10,20..SR5199208-199308

BLUE,TRIM8#

main64271-34020iVCK10,20..STD199208-199308

main64271-34030-B0iVCK10,20..SR5199308-199408

GRAY,TRIM1#

main64271-34030-E0iVCK10,20..SR5199308-199408

OAK,TRIM4#

main64271-34030-J0iVCK10,20..SR5199308-199408

BLUE,TRIM8#

main64271-34040iRCK10,VCK1#,2#..RCB..(DLX,STD)199308

main64271-34050iVCK11,21..RCB..SR5199408-199508

6777116080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16080

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

9046707144

main90467-07144

9046804134

main90468-04134

9046804138

main90468-04138

9046805017

main90468-05017

9046805047

main90468-05047

9046805098

main90468-05098

9356014008

main93560-14008

23 parts on this diagram · 2 diagrams in section
