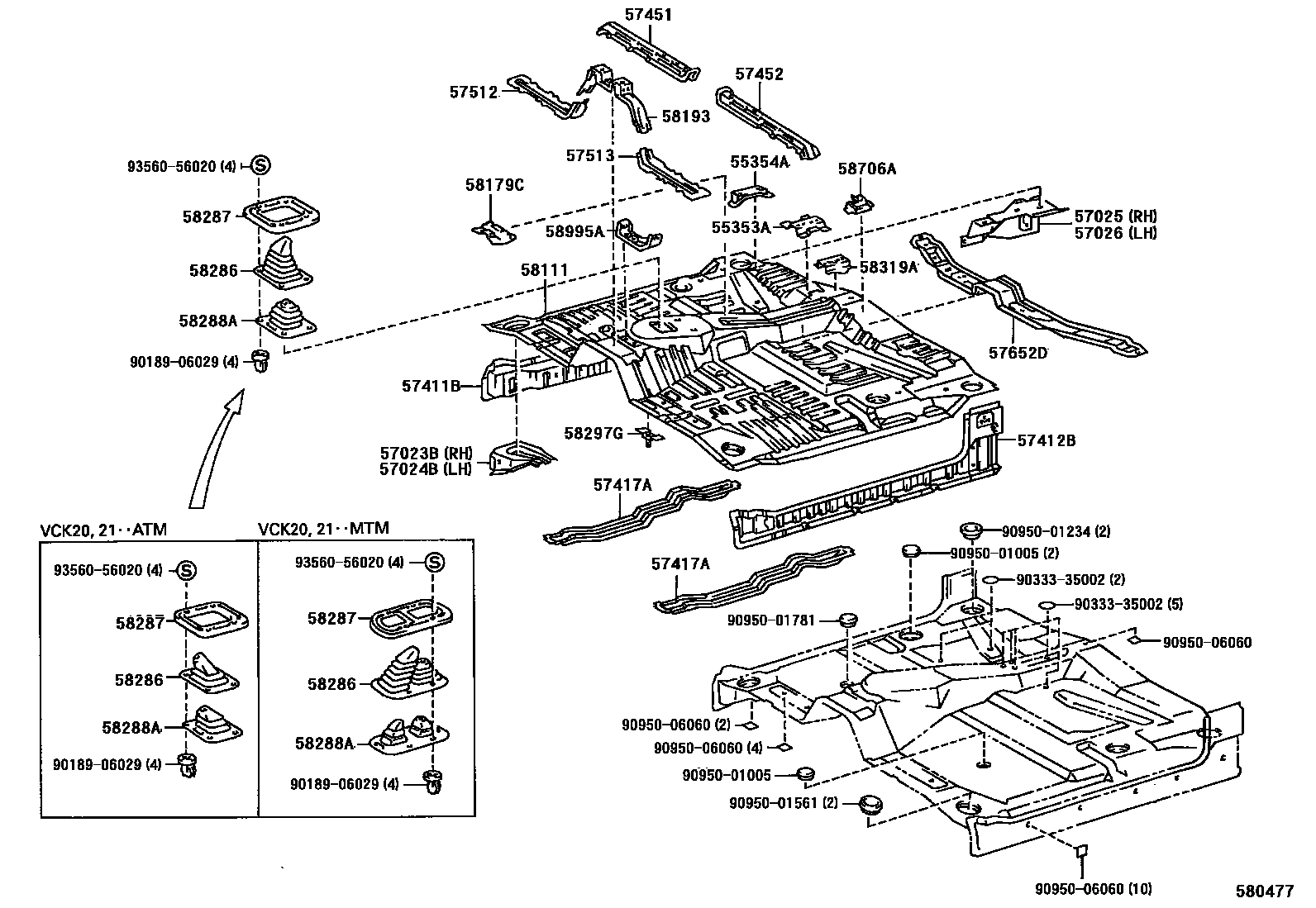

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

55353ABRACKET, SPEAKER MOUNTING, NO.1

main55353-34010iRCK10,VCK1#,2#..RCB199208-199508

55354ABRACKET, SPEAKER MOUNTING, NO.2

main55354-34010iVCK10,20199208-199508

57023BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH

main57023-34010iVCK10,20199208-199408

sub57023-34020

main57023-34020iRCK10,VCK11,21199408

57024BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH

main57023-34010iVCK10,20199208-199408

sub57023-34020

main57023-34020iRCK10,VCK11,21199408

57025BRACKET SUB-ASSY, BODY MOUNTING, NO.3 RH

main57025-34010iVCK10,20199208-199408

main57025-34020iRCK10,VCK11,21199408-199410

sub57025-34030

main57025-34030iRCK10,VCK11,21199410

57026BRACKET SUB-ASSY, BODY MOUNTING, NO.3 LH

main57026-34010iVCK10,20199208-199408

main57026-34020iRCK10,VCK11,21199408-199410

sub57026-34030

main57026-34030iRCK10,VCK11,21199410

57411BMEMBER, FLOOR SIDE, INNER RH

main57410-34010iVCK10,20199208-199308

main57410-34020iVCK11,21..XTR199410

57412BMEMBER, FLOOR SIDE, INNER LH

main57420-34010iVCK10,20199208-199308

main57420-34020iVCK11,21..XTR199410

57417AREINFORCEMENT, FRONT FLOOR UNDER

main57417-34010iVCK2#199208

57451MEMBER, FRONT FLOOR CROSS

main57451-34010iVCK10,20199208-199308

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-34010iVCK10,20199208-199308

57512REINFORCEMENT, FRONT FLOOR, RH

main57512-34010iVCK10,20199208-199308

57513REINFORCEMENT, FRONT FLOOR, LH

main57513-34010iVCK10,20199208-199308

57652DMEMBER, REAR FLOOR CROSS, NO.1

main57605-34010iVCK10,20..SR5199208-199508

main57605-34020iRCK10,VCK1#,2#..RCB..(DLX,STD)199208

main57652-34030iVCK11,21..XTR199410

58111PAN, FRONT FLOOR

main58111-34020iVCK10,20199208-199308

sub58111-34021

sub90333-35002

main58111-34021iVCK10..ATM;RCK10,VCK20;VCK10..MTM..CND;VCK10..MTM..STD..USA199308-199408

main58111-34090iRCK10,VCK11,21..RCB199408

main58111-34170iVCK21..XTR;VCK11..XTR..MTM199410-199608

sub58111-34171

sub90333-35002

main58111-34171iVCK11..XTR..ATM199410-199608

58179CBRACKET, CLAMP FLOOR

main58179-34010iVCK11,21..SR5199608

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58109-34010iRCK10,VCK11,21199408

main58193-34010iVCK10,20199208-199408

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58286-34010iVCK2#..MTM199208

main58286-34020-B0iVCK2#..ATM199208-199608

GRAY,TRIM1#

sub58286-34020

main58286-34020-B1iVCK21..ATM199608

MOON MIST,TRIM1#

sub58286-34020

main58286-34020-E0iVCK2#..ATM199208

OAK,TRIM4#

sub58286-34020

main58286-34020-J0iVCK2#..ATM199208-199608

BLUE,TRIM8#

sub58286-34020

main58286-89124iRCK10,VCK1#..MTM199208

58287RETAINER, SHIFT LEVER BOOT

main58287-34010iVCK2#..MTM199208

main58287-89113iVCK2#..ATM;RCK10,VCK1#..MTM199208

58288ASEAL, SHIFT LEVER BOOT

main58288-34010iRCK10;VCK10..MTM..SR5199208-199408

main58288-34020iVCK2#..MTM199208

main58288-34030iVCK2#..ATM199208

58297GRETAINER, FLOOR CLAMP

main58297-34010iVCK10,20199208-199408

58319APLATE, REAR FLOOR PANEL, FRONT

main58319-34010iVCK10,20..SR5199208-199508

58706ACLAMP SUB-ASSY, JACK HANDLE

main58706-34010iVCK10199208-199508

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-34010iVCK11,21..MTM..SR5199408

main58995-89104iVCK10,20..MTM..SR5199208-199408

9018906029

main90189-06029

9033335002

main90333-35002

9095001005

main90950-01005

9095001234

main90950-01234

9095001561

main90950-01561

9095001781

main90950-01781

9095006060

main90950-06060

9356056020

main93560-56020

32 parts on this diagram · 2 diagrams in section
