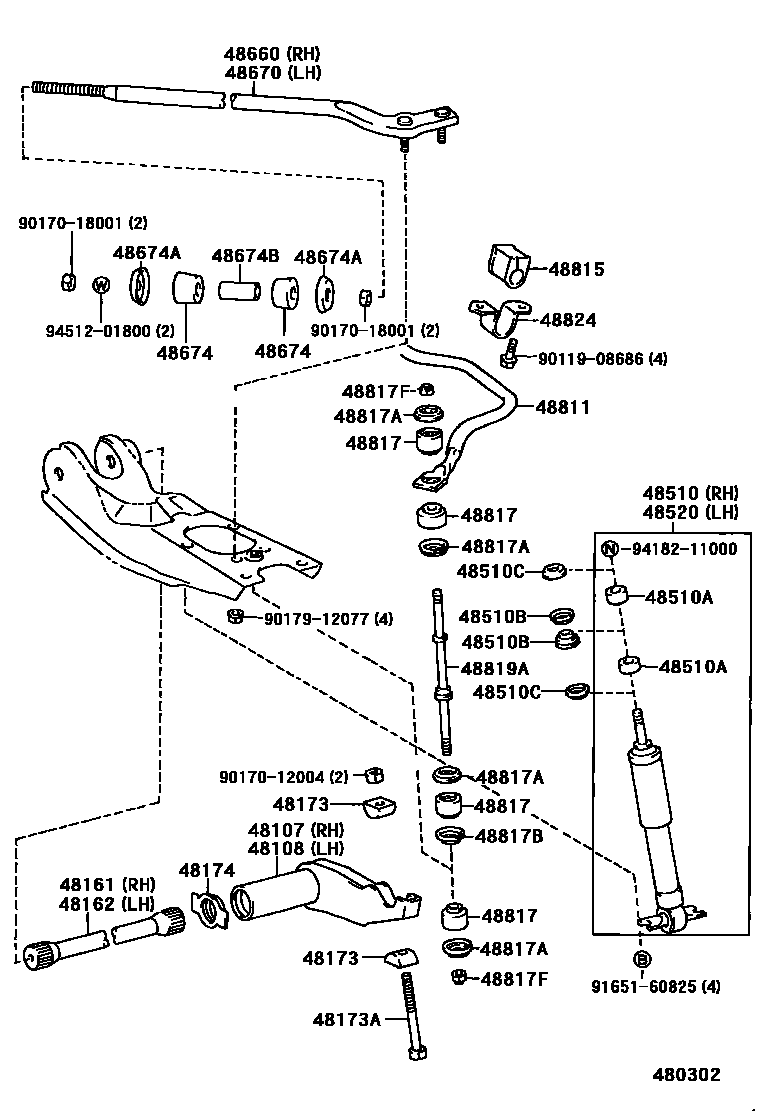

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-34010iRCK10,VCK1#199208

main48107-35050iVCK2#199208

48108ARM SUB-ASSY, ANCHOR, LH

main48108-34010iRCK10,VCK1#199208

main48108-35050iVCK2#199208

48161SPRING, TORSION BAR, RH

main48161-34010iRCK10,VCK1#..RCB..HLF199208

main48161-34020iVCK1#..10T;VCK11..XTR199208

main48161-34030iVCK2#199208-199410

sub48161-34031

main48161-34031iVCK21199410

48162SPRING, TORSION BAR, LH

main48162-34010iRCK10,VCK1#..RCB..HLF199208

main48162-34020iVCK1#..10T;VCK11..XTR199208

main48162-34030iVCK2#199208-199410

sub48162-34031

main48162-34031iVCK21199410

48173SEAT, ANCHOR ARM ADJUSTER

main48173-35010iVCK2#199208

UPPER

main48173-35010iVCK2#199208

LOWER

main48173-35020iVCK2#199208

UPPER

main48173-35030iRCK10,VCK1#199208

LOWER

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12159iRCK10,VCK1#,2#199208

48174COVER, TORSION BAR DUST

main48174-26010iVCK20199208-199408

main48174-26010iVCK21199408

LH

main48174-34010iVCK21199408

RH

main48174-35030iRCK10,VCK1#199208

sub48174-35031

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-80009iRCK10,VCK1#199208-199703

sub48511-80038

main48511-80010iVCK10..10T199208-199308

sub48511-80039

main48511-80011iVCK2#199208-199703

sub48511-80040

main48511-80038iRCK10,VCK11199703

main48511-80040iVCK21199703

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01002iRCK10,VCK1#199208

main90948-01003iVCK2#199208

UPPER

main90948-01045iVCK2#199208

LOWER

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02005iRCK10,VCK1#199208

main90948-02131iVCK2#199208

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02069iRCK10,VCK1#199208

main90948-02119iVCK2#199208

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-80009iRCK10,VCK1#199208-199703

sub48511-80038

main48511-80010iVCK10..10T199208-199308

sub48511-80039

main48511-80011iVCK2#199208-199703

sub48511-80040

main48511-80038iRCK10,VCK11199703

main48511-80040iVCK21199703

48660BAR ASSY, STRUT, RH

main48660-34010iRCK10,VCK1#199208

48670BAR ASSY, STRUT, LH

main48670-34010iRCK10,VCK1#199208

48674CUSHION, STRUT BAR

main48674-34010iRCK10,VCK1#199208

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02030iRCK10,VCK1#199208

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18002iRCK10,VCK1#199208

48811BAR, STABILIZER, FRONT

main48811-34010iRCK10,VCK1#..RCB..HLF199208

main48811-34020iVCK2#199208-199608

sub48811-34021

main48811-34021iVCK21199608

main48811-34030iVCK1#..10T;VCK11..XTR199208

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-34010iVCK11..RCB..HLF;RCK10,VCK10,2#..HLF199208

main48815-34020iVCK1#..10T;VCK11..XTR199208

48817CUSHION, FRONT STABILIZER

main48817-30010iRCK10,VCK1#199208

main90948-01002iVCK2#199208

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004iVCK2#199208

main90948-02032iRCK10,VCK1#199208

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iRCK10,VCK1#199208

main90948-02034iVCK2#199208

48817FNUT(FOR FRONT STABILIZER BAR)

main94182-10800iRCK10,VCK1#199208

main94184-01000iVCK2#199208

48819ABOLT, FRONT STABILIZER

main48819-34010iRCK10,VCK1#199208

48824BRACKET, STABILIZER, FRONT

main48824-34010iRCK10,VCK1#,2#199208

9011908686

main90119-08686

9017012004

main90170-12004

9017018001

main90170-18001

9017912077

main90179-12077

9165160825

main91651-60825

9418211000

main94182-11000

9451201800

main94512-01800

32 parts on this diagram · 2 diagrams in section
