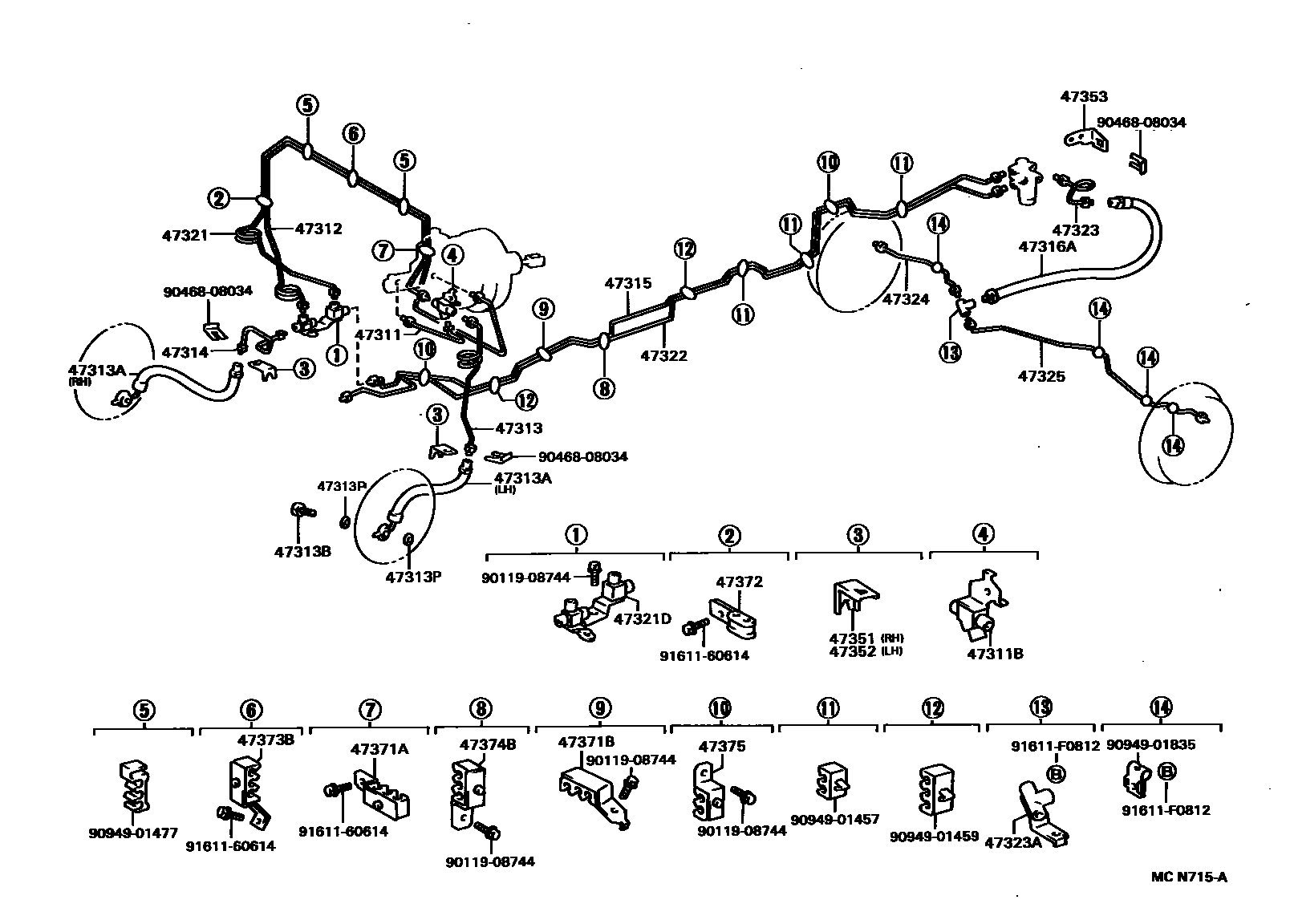

BRAKE TUBE & CLAMP
47311TUBE, FRONT BRAKE, NO.1
W(ABS)
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
W(ABS)
W(ABS)
W(ABS)
W(ABS)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
W(ABS)
W(ABS)
W(ABS)
W(ABS)
47315TUBE, FRONT BRAKE, NO.5
47321DWAY, NO.1(FOR REAR BRAKE TUBE)
W(ABS)
47322TUBE, REAR BRAKE, NO.2
W(ABS)
W(ABS)
W(ABS)
47323TUBE, REAR BRAKE, NO.3
47323AWAY, NO.3(FOR REAR BRAKE TUBE)
47324TUBE, REAR BRAKE, NO.4
47325TUBE, REAR BRAKE, NO.5
47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
W(ABS)
47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
W(ABS)
47353BRACKET, FLEXIBLE HOSE(FOR REAR)
47371ACLAMP, BRAKE TUBE, NO.1
W(ABS)
47371BCLAMP, BRAKE TUBE, NO.6
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
W(ABS)
47374BCLAMP, BRAKE TUBE, NO.4
NO.1
NO.2
47375CLAMP, BRAKE TUBE, NO.5
W(ABS)
9011908744
main90119-08744
9046808034
main90468-08034
9094901457
main90949-01457
9094901459
main90949-01459
9094901477
main90949-01477
9094901835
main90949-01835
9161160614
main91611-60614
91611F0812
main91611-F0812
35 parts on this diagram · 14 diagrams in section
