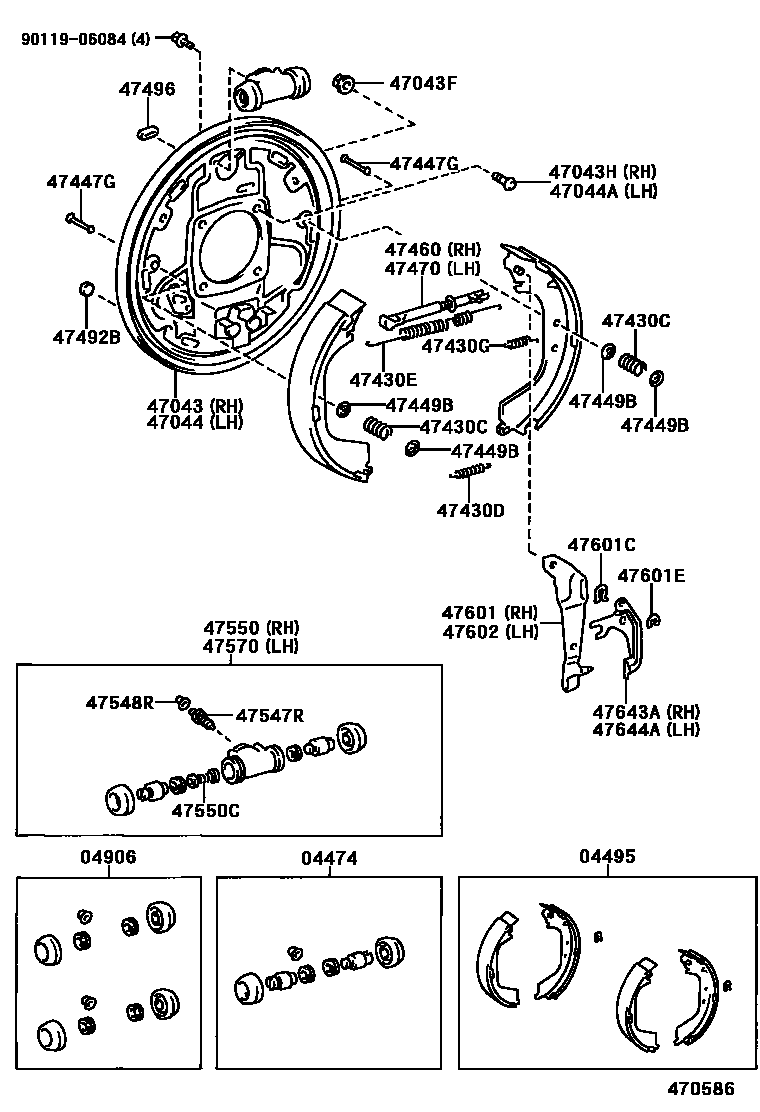

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-26030iVCK20199208-199511

sub04474-35090

sub90029-60009

main04474-35060iRCK10,VCK10..HLF199208-199408

sub04474-35080

sub90029-60011

main04474-35090iRCK10,VCK11,21..HLF199511

main04474-35100iVCK11..10T199511

main04474-60010iVCK1#..10T199208-199511

sub04474-35100

sub90029-60009

04495SHOE KIT, REAR BRAKE

main04495-34010iRCK10,VCK1#..HLF199208

main04495-34020iVCK1#..10T199208

main04495-35151iVCK2#199208

sub04495-35230

04906CUP KIT, REAR WHEEL CYLINDER

main04906-14020iVCK20199208-199505

main04906-35100iRCK10,VCK10..HLF199208-199408

main04906-35120iRCK10,VCK11,21..HLF199505

main04906-35130iVCK1#..10T199208

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-34010iVCK1#..10T199208

main47043-35150iVCK2#199208

main47043-35160iRCK10,VCK1#..HLF199208

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10067iRCK10,VCK1#,2#199208

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main90114-10002iVCK2#199208

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-34010iVCK1#..10T199208

main47044-35140iVCK2#199208

main47044-35150iRCK10,VCK1#..HLF199208

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main90114-10002iVCK2#199208

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iRCK10,VCK1#,2#199208

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18031iRCK10,VCK1#,2#199208

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26011iVCK2#199208

RH

main90506-26011iVCK2#199208

LH

main90506-26014iVCK2#199208

LH

main90506-26014iVCK2#199208

RH

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12031iRCK10,VCK1#,2#199208

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30020iRCK10,VCK1#,2#..HLF199208

main47447-60010iVCK1#..10T199208

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iRCK10,VCK1#,2#199208

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-60011iVCK2#199208

main47062-60011iRCK10,VCK1#199208

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47061-60011iRCK10,VCK1#199208

main47062-60011iVCK2#199208

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iRCK10,VCK1#,2#199208

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iRCK10,VCK1#,2#199208

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-60020iRCK10,VCK1#,2#199208

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iRCK10,VCK1#,2#199208

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26110iVCK20199208-199408

main47550-35170iRCK10,VCK10..HLF199208-199408

sub47550-35190

main47550-60120iVCK1#..10T199208

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-60010iVCK20;VCK10..10T199208-199511

main90029-60009iRCK10,VCK11,21199511

main90501-09079iRCK10,VCK10..HLF199208-199408

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26110iVCK20199208-199408

main47550-35170iRCK10,VCK10..HLF199208-199408

sub47550-35190

main47550-60120iVCK1#..10T199208

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47611-35040iVCK2#199208

main47612-35040iRCK10,VCK1#199208

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010iRCK10,VCK1#,2#199208

T=1.6

47601ERING, E(FOR REAR BRAKE)

main96160-00500iRCK10,VCK1#,2#199208

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47611-35040iRCK10,VCK1#199208

main47612-35040iVCK2#199208

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-60010iVCK2#199208

main47644-60010iRCK10,VCK1#199208

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-60010iRCK10,VCK1#199208

main47644-60010iVCK2#199208

9011906084

main90119-06084
