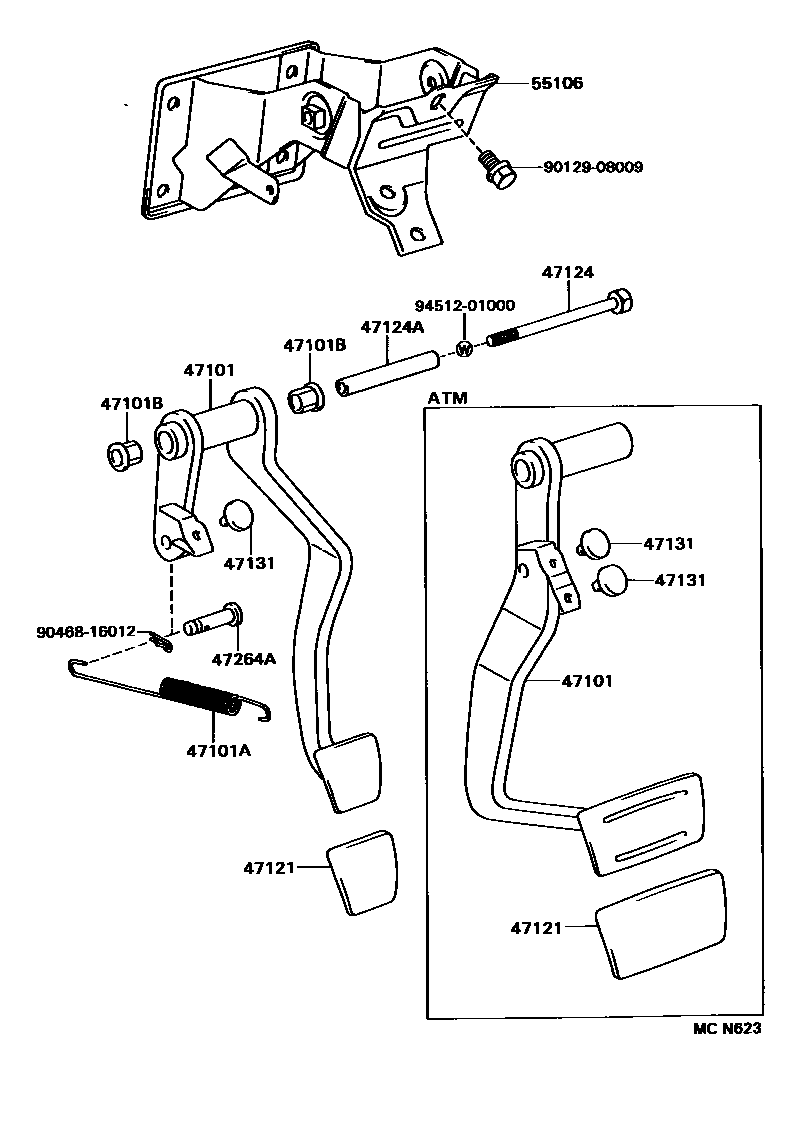

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-34010iRCK10,VCK1#,2#..MTM199208

main47101-34020iRCK10,VCK1#,2#..ATM199208

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14020iRCK10,VCK1#,2#..MTM199208

main90507-18026iRCK10,VCK1#,2#..ATM199208-199512

main90905-07018iRCK10,VCK11,21..ATM199512

47101BBUSH(FOR BRAKE PEDAL)

main90386-13020iRCK10,VCK1#,2#199208

47121PAD, BRAKE PEDAL

main31321-14020iRCK10,VCK1#,2#..MTM199208

main47121-14010iRCK10,VCK1#,2#..ATM199208

47124SHAFT, BRAKE PEDAL

main90101-10480iRCK10,VCK1#,2#199208

sub91552-81090

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-35030iRCK10,VCK1#,2#199208

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iRCK10,VCK1#,2#..MTM199208

47264APIN(FOR PUSH ROD)

main47148-35010iRCK10,VCK1#,2#199208

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-34010iRCK10,VCK1#,2#199208

9012908009

main90129-08009

9046816012

main90468-16012

9451201000

main94512-01000

12 parts on this diagram · 1 diagram in section
