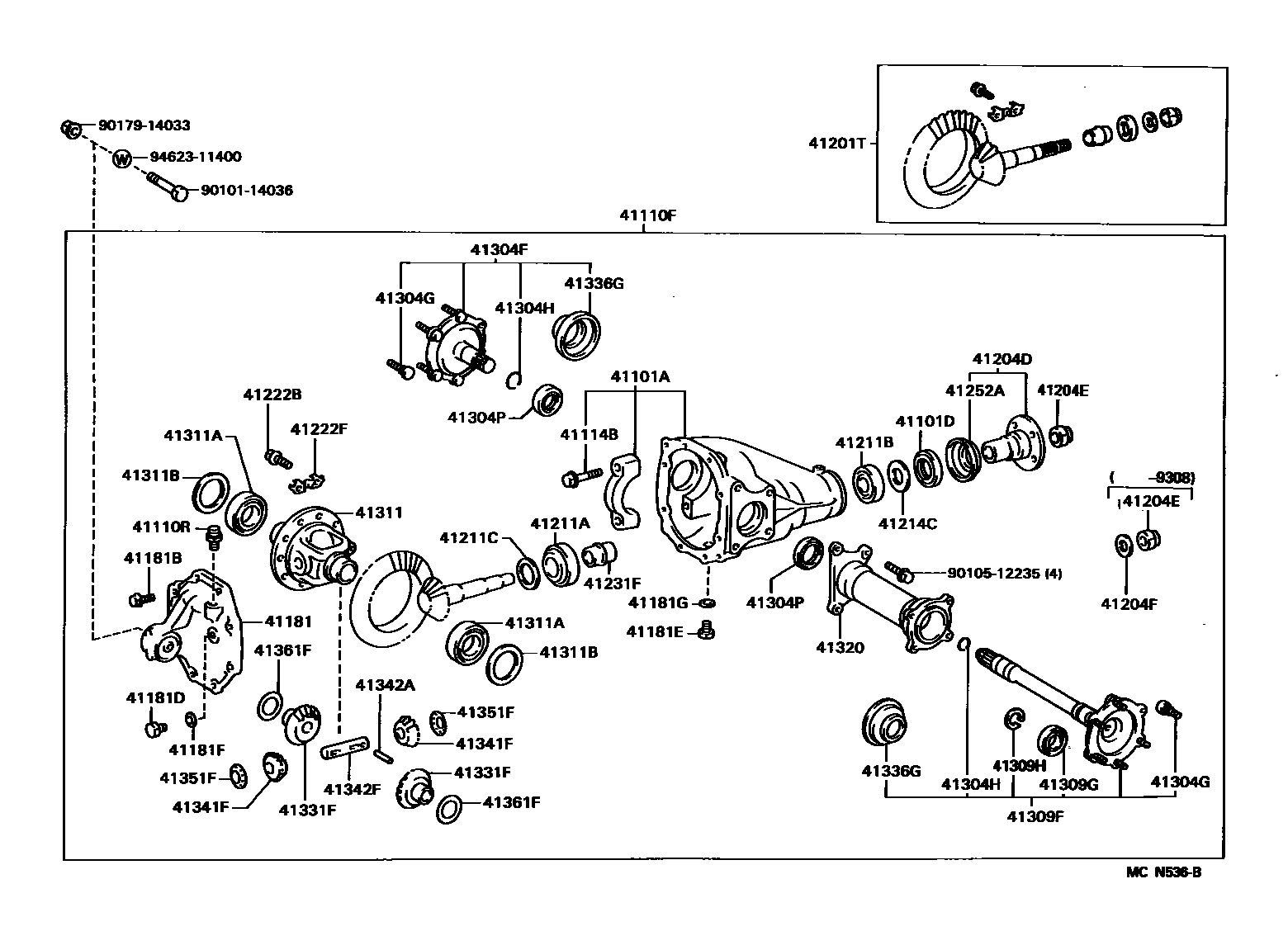

FRONT AXLE HOUSING & DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
*FGR=49:11=4.455
*FGR=49:11=4.455,W(*ADD)
*FGR=49:11=4.455
*FGR=47:10=4.700,W(*ADD & 7JJX15 DISC WHEEL)
*FGR=47:10=4.700
*FGR=47:10=4.700,W(7JJX15 DISC WHEEL)
*FGR=47:10=4.700,W(*ADD)
*FGR=49:10=4.900,W(*ADD & 7JJX15 DISC WHEEL)
*FGR=49:10=4.900,W(7JJX15 DISC WHEEL)
*FGR=47:10=4.700,W(7JJX15 DISC WHEEL)
*FGR=47:10=4.700
*FGR=49:10=4.900,W(7JJX15 DISC WHEEL)
*FGR=43:11=3.909
*FGR=41:10=4.100,W(7JJX15 DISC WHEEL)
*FGR=41:10=4.100
*FGR=41:10=4.100,W(265/70R16 TIRE)
*FGR=43:10=4.300,W(7JJX15 DISC WHEEL)
*FGR=43:10=4.300,W(265/70R16 TIRE)
41110RPLUG, BREATHER (FOR FRONT DIFFERENTIAL)
41114BBOLT, FRONT DIFFERENTIAL BEARING CAP
41181COVER, FRONT DIFFERENTIAL CARRIER
W(*ADD)
41181BBOLT (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING)
41181DPLUG (FOR FRONT DIFFERENTIAL FILLER)
41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)
41181FGASKET (FOR FRONT DIFFERENTIAL FILLER PLUG)
41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
*FGR=49:11=4.456
*FGR=47:10=4.700
*FGR=47:10=4.700,W(7JJX15 DISC WHEEL)
*FGR=49:10=4.900,W(7JJX15 DISC WHEEL)
*FGR=41:10=4.100
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
41204FWASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE FRONT)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
sub90366-30078
41211CGEAR, DIFFERENTIAL RING
T=2.36,MARK 05
T=2.39,MARK 06
T=2.42,MARK 07
T=2.43,MARK 08
T=2.48,MARK 09
T=2.51,MARK 10
T=2.54,MARK 11
T=2.57,MARK 12
T=2.60,MARK 13
T=2.63,MARK 14
T=2.66,MARK 15
T=2.69,MARK 16
T=2.72,MARK 17
OD=47,T=2.24,MARK 01
OD=47,T=2.27,MARK 02
OD=47,T=2.30,MARK 03
OD=47,T=2.33,MARK 04
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)
41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41304GBOLT, SERRATION (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)
W(*ADD)
41309FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH
W(*ADD)
41309GBEARING (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41309HRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)
W(*ADD),OUTER
OUTER
INNER
W(*ADD),INNER
INNER
W(*ADD),INNER
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
INNER
W(*ADD),INNER
W(*ADD),OUTER
OUTER
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
T=2.58
T=2.61
T=2.64
T=2.67
T=2.70
T=2.73
T=2.76
T=2.79
T=2.82
T=2.85
T=2.88
T=2.91
T=2.94
T=2.97
T=3.00
T=3.03
T=3.06
T=3.09
T=3.12
T=3.15
T=3.18
T=3.21
T=3.24
41320TUBE ASSY, FRONT DIFFERENTIAL
W(*ADD)
41331FGEAR, FRONT DIFFERENTIAL SIDE
sub41331-14041
41336GCOVER, DUST(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT)
RH
LH
W(*ADD),LH
LH
41341FPINION, FRONT DIFFERENTIAL
sub41341-30050
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
sub41342-22021
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.0
T=1.1
T=1.2
T=1.3
9010114036
main90101-14036
9010512235
main90105-12235
9017914033
main90179-14033
9462311400
main94623-11400
45 parts on this diagram · 4 diagrams in section
