TRANSFER ASSEMBLY & GASKET KIT

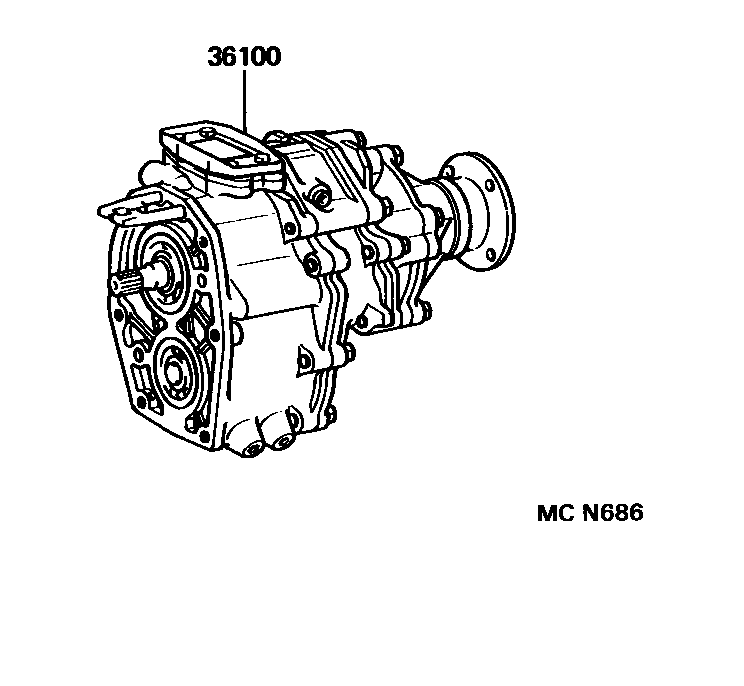

Parts diagram
36100TRANSFER ASSY
main36100-34010i199208-199408
sub36100-34011
main36100-34020i199208-199408
W(*ADD)
sub36100-34021
main36100-34030i199208-199408
sub36100-34031
main36100-34040i199208-199408
W(*ADD)
sub36100-34041
main36100-34060i199408-199601
sub36100-34090
main36100-34080i199408-199601
sub36100-34100
main36100-34090i199601
main36100-34100i199601-199603
sub36100-34101
sub36304-35041
sub36360-34032
main36100-34101i199603
main36100-34110i199608
W(4WHEEL*66)
main36100-35630i199208-199408
W(7JJX15 DISC WHEEL)
sub36100-35631
main36100-35640i199208-199408
W(7JJX15 DISC WHEEL)
sub36100-35641
main36100-35640i199208-199408
W(*ADD & 7JJX15 DISC WHEEL)
sub36100-35641

1 parts on this diagram · 1 diagram in section
