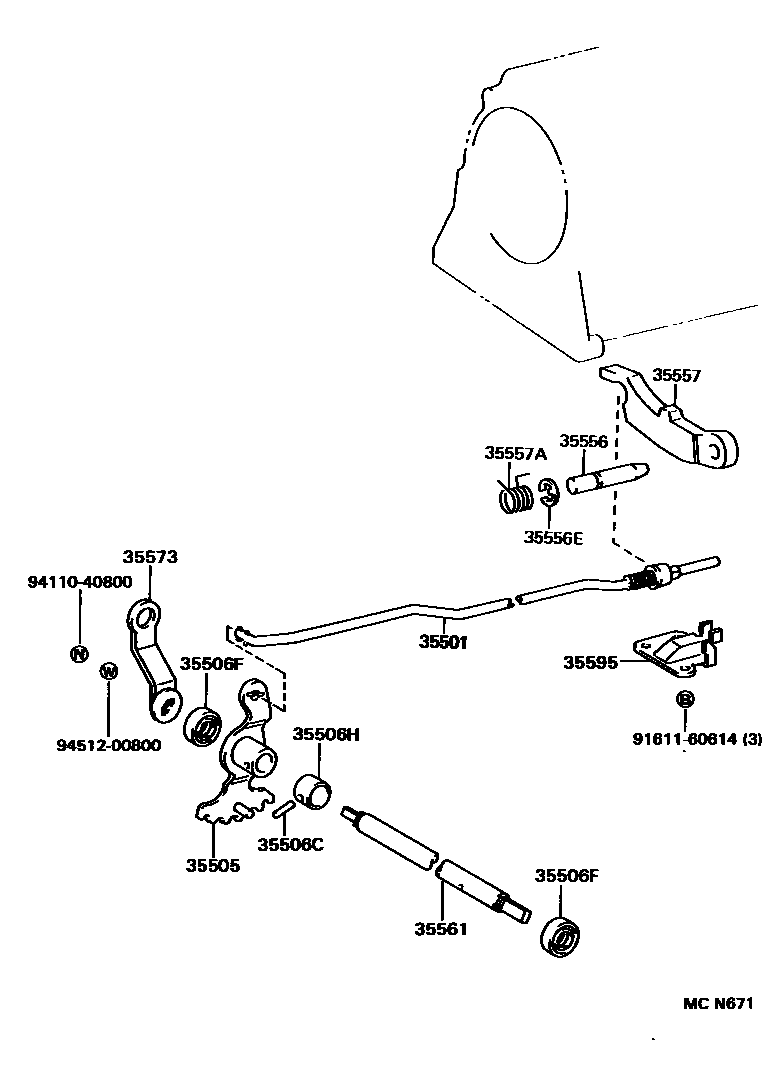

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A340E,A340F 0002 1A340E,A340F 0003 1A340E 0004 1A340E,A340F

35501ROD SUB-ASSY, PARKING LOCK

main35501-30010iRCK10,VCK1#,2#..ATM199208

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-50010iRCK10,VCK1#,2#..ATM199208

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iRCK10,VCK1#,2#..ATM199208

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iRCK10,VCK1#,2#..ATM199208

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iRCK10,VCK1#,2#..ATM199208

35556SHAFT, PARKING LOCK PAWL

main35556-30020iRCK10,VCK1#,2#..ATM199208

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iRCK10,VCK1#,2#..ATM199208

35557PAWL, PARKING LOCK

main35557-30020iRCK10,VCK1#,2#..ATM199208

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iRCK10,VCK1#,2#..ATM199208

35561SHAFT, MANUAL VALVE LEVER

main35561-35010iRCK10,VCK11,21..ATM199208-199708

main35561-35020iVCK11..ATM199408-199708

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-34010iVCK1#,2#..ATM199208

main35573-34020iRCK10..ATM199408-199409

sub35573-34021

main35573-34021iRCK10..ATM199409

35595BRACKET, PARKING LOCK PAWL

main35595-30010iRCK10,VCK1#,2#..ATM199208

9161160614

main91611-60614

9411040800

main94110-40800

9451200800

main94512-00800

15 parts on this diagram · 4 diagrams in section
