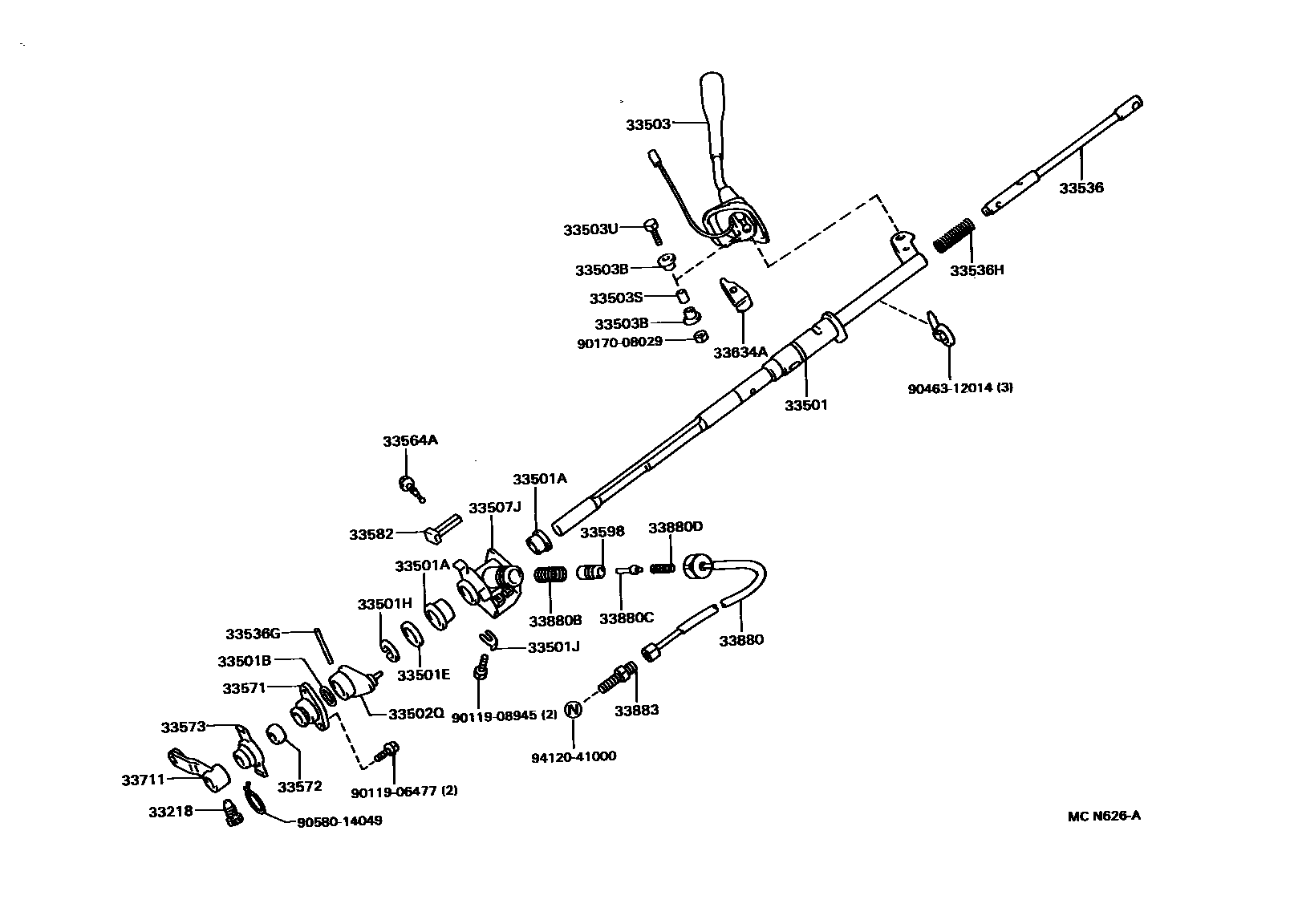

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1

33218BOLT, SHIFT LEVER LOCK

main33218-35010iRCK10,VCK1#,2#..ATM199208

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-34010iRCK10,VCK1#,2#..ATM199208

33501ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90386-28002iRCK10,VCK1#,2#..ATM199208

33501BRING, O (FOR COLUMN SHIFT CONTROL SHAFT LOWER)

main96711-19028iRCK10,VCK1#,2#..ATM199208

33501EWASHER, PLATE (FOR COLUMN SHIFT CONTROL SHAFT)

main90201-28012iRCK10,VCK1#,2#..ATM199208

T=1.2

main90201-28013iRCK10,VCK1#,2#..ATM199208

T=1.4

main90201-28014iRCK10,VCK1#,2#..ATM199208

T=1.6

33501HRING, SNAP (FOR COLUMN SHIFT CONTROL SHAFT)

main96152-00280iRCK10,VCK1#,2#..ATM199208

33501JSHIM (FOR COLUMN SHIFT CONTROL SHAFT)

main90565-09007iRCK10,VCK1#,2#..ATM199208

T=0.3

main90565-09008iRCK10,VCK1#,2#..ATM199208

T=0.4

main90565-09009iRCK10,VCK1#,2#..ATM199208

T=0.5

33502QPLATE SUB-ASSY, SHIFT LEVER

main33502-34010iRCK10,VCK1#,2#..ATM199208

33503LEVER SUB-ASSY, SHIFT(FOR COLUMN SHIFT)

main33503-34010iVCK10,20..ATM199208-199408

main33503-34020iVCK10,20..ATM..USA;RCK10,VCK11,21..ATM199310

33503BBUSH(FOR SHIFT LEVER SUB-ASSY)

main90386-11014iRCK10,VCK1#,2#..ATM199208

33503SCOLLAR(FOR SHIFT LEVER)

main90387-08094iRCK10,VCK1#,2#..ATM199208

33503UBOLT, HEXAGON(FOR COLUMN SHIFT LEVER)

main90101-08128iRCK10,VCK1#,2#..ATM199208

33507JSUPPORT SUB-ASSY, CONTROL SHAFT (FOR COLUMN SHIFT)

main33507-34010iRCK10,VCK1#,2#..ATM199208

33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

main33536-34010iRCK10,VCK1#,2#..ATM199208

33536GPIN, SLOTTED SPRING (FOR COLUMN CONTROL SELECT LEVER)

main90254-04025iRCK10,VCK1#,2#..ATM199208

33536HSPRING, COMPRESSION (FOR COLUMN CONTROL SELECT LEVER)

main90501-12149iRCK10,VCK1#,2#..ATM199208

33564ALINK, SHIFT LOCK RELEASE (FOR COLUMN SHIFT)

main33564-34010iRCK10,VCK1#,2#..ATM199208

33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

main33571-34010iRCK10,VCK1#,2#..ATM199208

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-34010iRCK10,VCK11,21..ATM199701

main33572-36010iRCK10,VCK1#,2#..ATM199208-199701

33573COVER, CONTROL SHAFT DUST, LOWER

main33573-35040iRCK10,VCK1#,2#..ATM199208

33582STOPPER, SHIFT LOCK PLATE (FOR COLUMN SHIFT)

main33582-35010iRCK10,VCK1#,2#..ATM199208

33598HOLDER, SELECT SHATT LOCK PIN (FOR COLUMN SHIFT)

main33598-35010iRCK10,VCK1#,2#..ATM199208

33634APROTECTOR, WIRE

main33634-34010iRCK10,VCK1#,2#..ATM199208

33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

main33711-34010iRCK10,VCK1#,2#..ATM199208

33880CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)

main33880-35011iRCK10,VCK1#,2#..ATM199208

33880BSPRING, COMPRESSION (FOR PARKING LOCK CABLE)

main90501-10137iRCK10,VCK1#,2#..ATM199208

33880CPIN (FOR SHIFT LOCK)

main90249-06106iRCK10,VCK1#,2#..ATM199208

33880DSPRING, COMPRESSION (FOR SHIFT LOCK PIN)

main90501-05020iRCK10,VCK1#,2#..ATM199208

33883HOLDER, CABLE END ROD

main33883-35020iRCK10,VCK1#,2#..ATM199208

9011906477

main90119-06477

9011908945

main90119-08945

9017008029

main90170-08029

9046312014

main90463-12014

9058014049

main90580-14049

9412041000

main94120-41000

35 parts on this diagram · 2 diagrams in section
