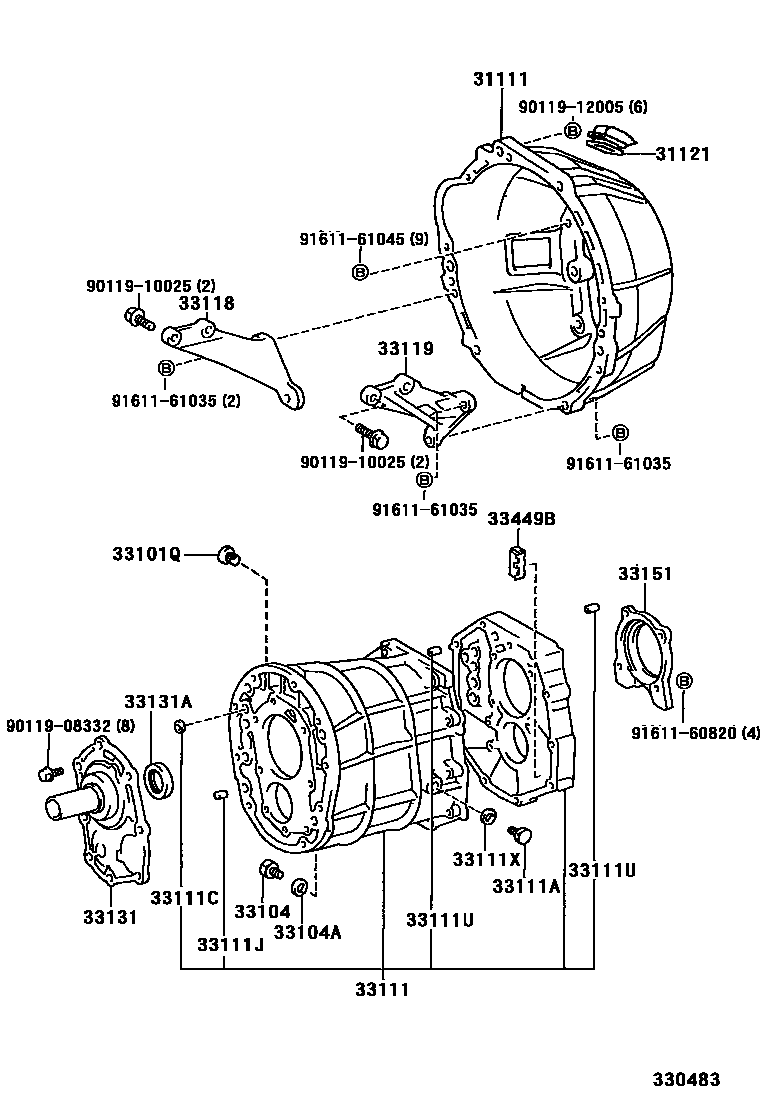

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1R150,R150F 0002 1R150 0003 1R150F 0004 1W56 0005 1W56,W59

31111HOUSING, CLUTCH

main31111-26030iRCK10..MTM199310-199601

sub31111-26031

main31111-26031iRCK10..MTM199601-199703

sub31111-26032

main31111-26032iRCK10..MTM199703

main31111-35050iVCK10,20..MTM199208-199408

main31111-35080iVCK11,21..MTM199408-199411

sub31111-35081

main31111-35081iVCK11,21..MTM199411

31121COVER, CLUTCH HOUSING, NO.1

main31121-26020iRCK10..MTM199310

NO.2

main31121-35020iRCK10..MTM199310

NO.1

main31121-35020iVCK10,20..MTM199208-199408

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90341-16013iVCK1#,2#..MTM199208-199509

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iVCK10,20..MTM199208-199408

main90341-18057iRCK10199310-199408

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iRCK10,VCK1#,2#..MTM199208

33111CASE, MANUAL TRANSMISSION

main33101-30070iRCK10..MTM199310-199503

main33101-30071iRCK10..MTM199503

main33101-35031iVCK10,20..MTM199208-199405

sub33101-60030

main33101-35080iVCK1#,2#..MTM199405-199509

sub33101-60050

main33101-35100iVCK11,21..MTM199509

sub33101-60040

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iRCK10199310-199408

main90341-18006iRCK10,VCK11,21..MTM199208-199408

main90341-18026iVCK10..MTM199208-199408

sub90341-18019

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iVCK10,20..MTM199208-199503

OD=14

main96411-41800iRCK10..MTM199310

OD=18

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iRCK10..MTM199208

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001iVCK1#,2#..MTM199208

L=14,OD=15

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iRCK10,VCK11,2#..MTM199208

33118PLATE, STIFFENER, RH(MTM)

main33118-26010iRCK10199310-199408

sub33118-26011

main33118-34010iVCK21..MTM..DLX;VCK21..XTR..MTM..SR5199408-199503

main33118-35040iVCK10,20..MTM199208-199408

33119PLATE, STIFFENER, LH(MTM)

main33119-26020iRCK10199310-199408

sub33119-26021

main33119-35030iVCK21..MTM..DLX;VCK21..XTR..MTM..SR5199208-199503

33131RETAINER, BEARING, FRONT(MTM)

main33131-30080iRCK10..MTM199310

main33131-35031iVCK1#,2#..MTM199208

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iRCK10..MTM199310

main90311-32012iVCK1#,2#..MTM199208

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-30020iRCK10..MTM199310

main33151-35020iVCK1#,2#..MTM199208

33449BMAGNET, TRANSMISSION

main33449-30010iRCK10..MTM199310

RR

main33449-30020iRCK10..MTM199310

FR

main33449-35010iVCK10,20..MTM199208-199405

main33449-35030iVCK1#,2#..MTM199405

9011908332

main90119-08332

9011910025

main90119-10025

9011912005

main90119-12005

9161160820

main91611-60820

9161161035

main91611-61035

9161161045

main91611-61045

23 parts on this diagram · 5 diagrams in section
