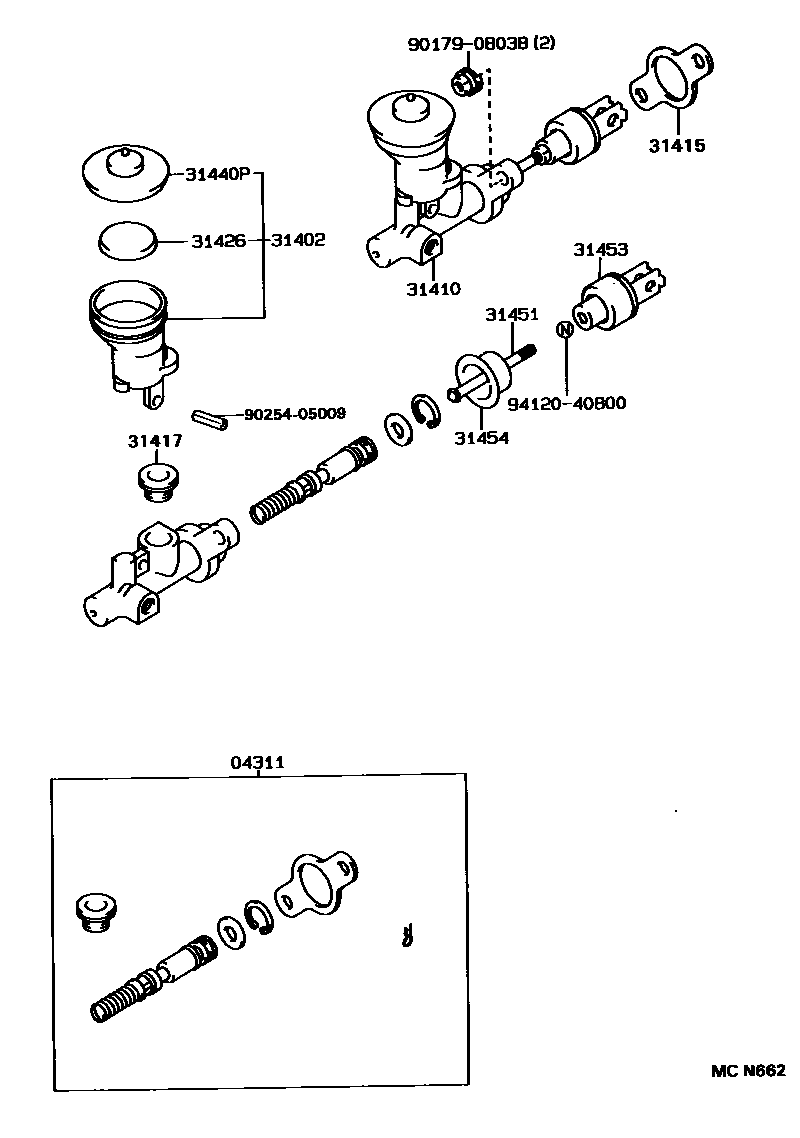

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iRCK10,VCK11,21..MTM199706

main04311-22040iRCK10,VCK10,20..MTM199208-199403

sub04311-12080

main04311-34010iRCK10,VCK1#,2#..MTM199403-199706

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-34010iRCK10,VCK1#,2#..MTM199208-199611

main31402-35120iRCK10,VCK11,21..MTM199611

31410CYLINDER ASSY, CLUTCH MASTER

main31410-34010iRCK10,VCK1#,2#..MTM199208-199611

sub31410-34011

main31410-34011iRCK10,VCK11,21..MTM199611-199706

sub31410-34012

main31410-34012iRCK10,VCK11,21..MTM199706

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iRCK10,VCK1#,2#..MTM199208

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iRCK10,VCK1#,2#..MTM199208

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iRCK10,VCK1#,2#..MTM199208

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-35020iRCK10,VCK11,21..MTM199611

main47230-20040iRCK10,VCK1#,2#..MTM199208-199611

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-35080iRCK10,VCK11,21..MTM199208-199403

main31451-36040iRCK10,VCK1#,2#..MTM199403-199611

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iRCK10,VCK11,21..MTM199611

main31404-35011iRCK10,VCK1#,2#..MTM199208-199611

sub31404-35013

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iRCK10,VCK1#,2#..MTM199403

main31454-24010iRCK10,VCK10,20..MTM199208-199403

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
