STARTER

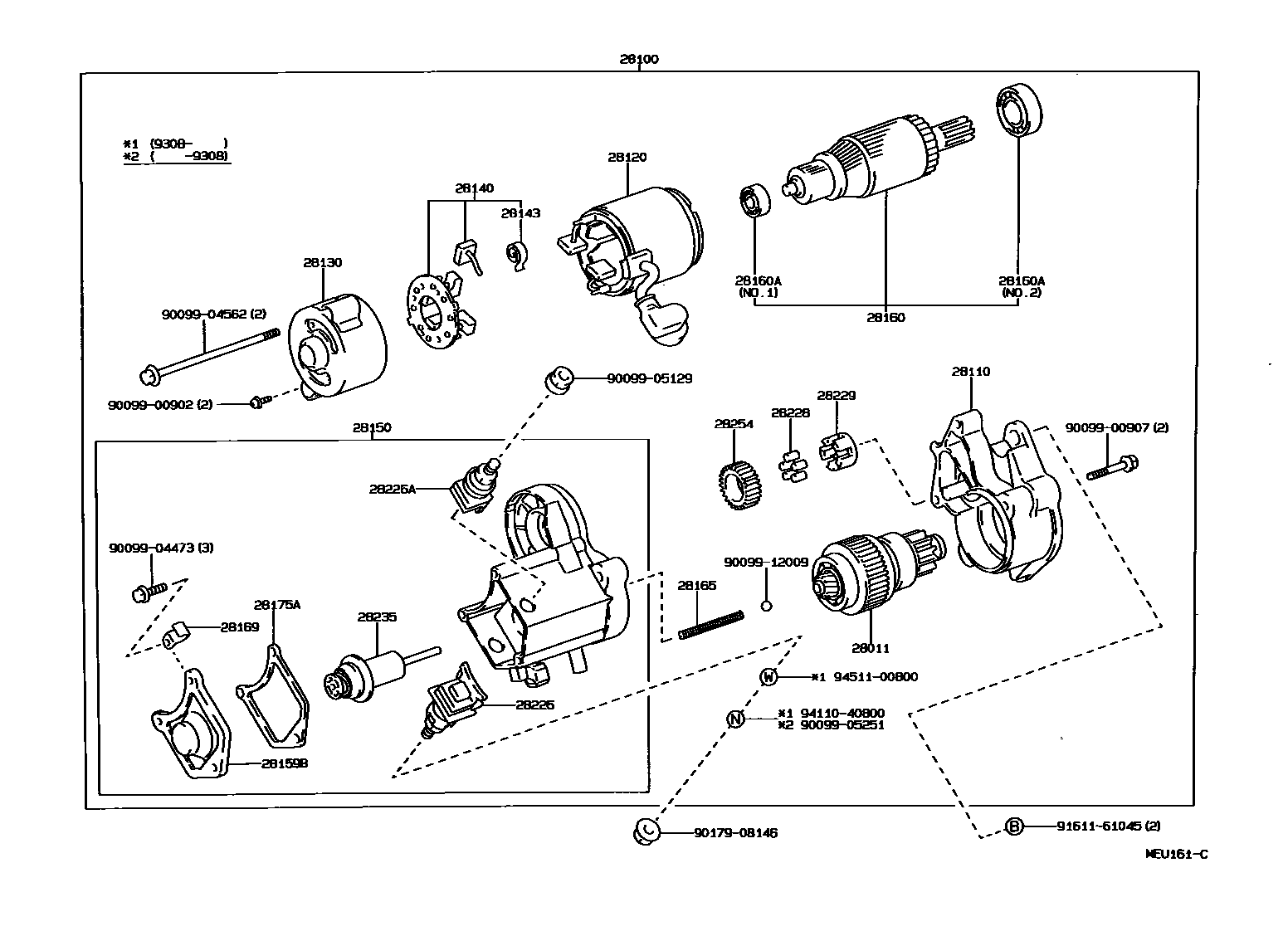

Parts diagram
28011CLUTCH SUB-ASSY, STARTER
main28011-01020i199408
COLD SPEC
main28011-35030i199208-199408
main28011-75120i199408
main28011-75120i199310
COLD SPEC
main28011-76070i199310
28100STARTER ASSY
main28100-07010i199408
12V 1.4KW,COLD SPEC
main28100-07010i199408
12V 1.4KW
main28100-0W020i199208-199308
12V 1.2KW,USA DENSO
main28100-0W030i199208-199408
12V 1.4KW,USA DENSO
main28100-0W030i199208-199408
12V 1.4KW,COLD SPEC,USA DENSO
main28100-0W040i199308-199408
12V 1.2KW
main28100-0W050i199308-199408
12V 1.4KW,DENSO USA
main28100-0W050i199308-199408
12V 1.4KW,COLD SPEC,DENSO USA
main28100-0W070i199408
12V 1.2KW
sub28100-07010
main28100-62030i199408
12V 1.8KW,COLD SPEC
main28100-62030i199408
12V 1.8KW
main28100-65010i199208-199308
12V 1.0KW,NIPPONDENSO
sub28100-65030
main28100-65020i199208-199308
12V 1.4KW,COLD SPEC,NIPPONDENSO
sub28100-65030
main28100-65020i199208-199308
12V 1.4KW,NIPPONDENSO
sub28100-65030
main28100-65030i199208-199308
12V 1.6KW
main28100-65030i199208-199308
12V 1.6KW,COLD SPEC
main28100-65080i199308-199408
12V 1.0KW
sub28100-65100
main28100-65090i199308-199408
12V 1.4KW
sub28100-65100
main28100-65090i199308-199408
12V 1.4KW,COLD SPEC
sub28100-65100
main28100-65100i199308-199408
12V 1.6KW,COLD SPEC
main28100-65100i199308-199408
12V 1.6KW
main28100-75090i199408
12V 1.4KW
sub28100-75091
main28100-75110i199310
12V 1.8KW,COLD SPEC
sub28100-75140
main28100-75120i199408
12V 2.0KW,COLD SPEC
main28100-75130i199310
12V 1.2KW
28110HOUSING ASSY, STARTER DRIVE
main28110-07020i199408
COLD SPEC
main28110-62030i199408
COLD SPEC
main28110-65010i199208-199408
main28110-65020i199208-199408
COLD SPEC
main28110-75090i199310
main28110-75120i199310
COLD SPEC
28120YOKE ASSY, STARTER
main28120-01030i199408
COLD SPEC
main28120-0W030i199408
main28120-15090i199208-199408
COLD SPEC
main28120-26071i199208-199408
main28120-54380i199408
COLD SPEC
main28120-65030i199208-199408
COLD SPEC
main28120-74070i199408
main28120-75110i199408
main28120-75110i199310
COLD SPEC
main28120-76061i199310
28130FRAME ASSY, STARTER COMMUTATOR END
main28130-07010i199408
COLD SPEC
main28130-0W020i199408
main28130-34060i199208-199408
main28130-62030i199408
COLD SPEC
main28130-64170i199408
main28130-65090i199308-199408
COLD SPEC
main28130-72020i199208-199308
COLD SPEC
main28130-75120i199310
COLD SPEC
main28130-75130i199310
28140HOLDER ASSY, STARTER BRUSH
main28140-08010i199408
COLD SPEC
main28140-0W020i199408
main28140-54380i199310
COLD SPEC
main28140-62030i199408
COLD SPEC
main28140-65010i199208-199408
main28140-65020i199208-199408
COLD SPEC
main28140-76060i199310
main28140-76070i199408
28143SPRING, STARTER BRUSH
main28143-54380i199310
COLD SPEC
main28143-54380i199408
main28143-76060i199310
main90099-17112i199208
main90099-17112i199408
COLD SPEC
28150SWITCH ASSY, MAGNET STARTER
main28150-07020i199408
COLD SPEC
main28150-62030i199408
COLD SPEC
main28150-65011i199208-199308
main28150-65021i199208-199308
COLD SPEC
main28150-65080i199308-199408
main28150-65090i199308-199408
COLD SPEC
main28150-75090i199310
main28150-75120i199310
COLD SPEC
28159BCOVER, MAGNET SWITCH
main28159-07010i199408
main28159-10040i199208-199408
main28159-54380i199310
COLD SPEC
main28159-54380i199408
main28159-55050i199310
28160ARMATURE ASSY, STARTER
main28160-01020i199408
COLD SPEC
main28160-0W020i199408
main28160-15091i199208-199408
COLD SPEC
main28160-26071i199208-199408
main28160-65031i199208-199408
COLD SPEC
main28160-74070i199408
main28160-75110i199310
COLD SPEC
main28160-75110i199408
main28160-75120i199408
COLD SPEC
main28160-76060i199310
28160ABEARING, STARTER ARMATURE
main28253-45020i199208-199408
NO.1
main90068-10003i199408
COLD SPEC,NO.1
main90068-10003i199408
NO.1
main90068-10004i199408
COLD SPEC,NO.2
main90068-10004i199408
NO.2
main90099-10113i199208-199408
NO.2
main90099-10143i199208-199408
NO.2
main90099-10143i199208-199408
COLD SPEC,NO.2
main90099-10144i199208-199408
COLD SPEC,NO.1
main90099-10144i199208-199408
NO.1
main90099-10196i199310
NO.1
main90099-10197i199408
COLD SPEC,NO.2
main90099-10197i199310
NO.2
main90099-10208i199310
COLD SPEC,NO.1
main90099-10208i199408
NO.1
main90099-65030i199208-199408
NO.2
main90099-65030i199208-199408
COLD SPEC,NO.2
28165SPRING, STARTER MAGNET SWITCH RETURN
main28165-01020i199408
main28165-26040i199208-199408
main28165-76070i199310
main28165-76070i199408
COLD SPEC
28169CLAMP, STARTER MOTOR LEAD WIRE
main28169-10040i199208-199408
main28169-54380i199310
COLD SPEC
main28169-54380i199408
main28169-55050i199310
28175AGASKET, MAGNET SWITCH COVER
main28175-10040i199208-199408
main28175-54380i199310
COLD SPEC
main28175-54380i199408
main28175-55050i199310
28226STARTER KIT, BATTERY TERMINAL
main28226-03020i199408
COLD SPEC
main28226-54380i199408
sub28226-54340
main28226-54380i199310
COLD SPEC
sub28226-54340
main28226-64200i199310
sub28226-22050
main28226-70040i199308-199408
main28226-72080i199208-199308
28226ASTARTER KIT, MOTOR TERMINAL
main28226-72010i199208
main28226-72010i199310
COLD SPEC
main28226-74070i199310
main28226-74070i199408
COLD SPEC
28228ROLLER, STARTER IDLE GEAR CLUTCH
main28228-26040i199208
main28228-26040i199408
COLD SPEC
28229RETAINER, STARTER IDLE GEAR
main28229-01020i199408
COLD SPEC
main28229-26040i199208-199408
main28229-74070i199310
main28229-74070i199408
COLD SPEC
28235PLUNGER, MAGNET SWITCH
main28235-07010i199408
main28235-35080i199208-199408
main28235-54380i199310
COLD SPEC
main28235-54380i199408
main28235-55050i199310
28254PINION, STARTER IDLE GEAR
main28254-03010i199408
COLD SPEC
main28254-45020i199208-199408
main28254-64130i199408
main28254-64130i199310
COLD SPEC
main28254-74070i199310
9009900902
main90099-00902
9009900907
main90099-00907
9009904473
main90099-04473
9009904562
main90099-04562
9009905129
main90099-05129
9009905251
main90099-05251
9009912009
main90099-12009
9017908146
main90179-08146
9161161045
main91611-61045
9411040800
main94110-40800
9451100800
main94511-00800

31 parts on this diagram · 4 diagrams in section
