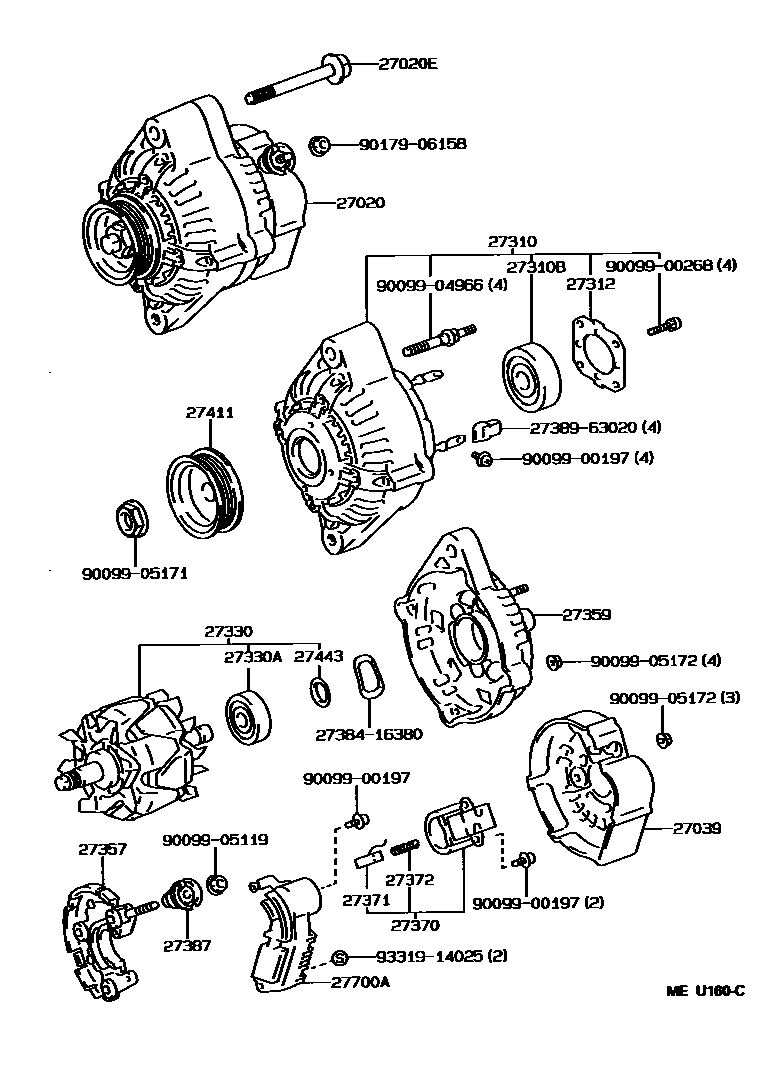

ALTERNATOR

0001 112V 60A,70A 0003 112V 60A,70A

27020ALTERNATOR ASSY

main27060-62110i5VZFE..VCK11,21199408-199608

12V 60A

main27060-62180i5VZFE..VCK11,21199608-199703

12V 70A

sub27060-62190

main27060-62190i5VZFE..VCK11,21199703

12V 70A

main27060-65040i3VZE..VCK10,20199208-199408

12V 60A

main27060-75040i3RZFE..RCK10199310-199608

12V 60A

main27060-75150i3RZFE..RCK10199704

12V 70A

main27060-75170i3RZFE..RCK10199608-199704

12V 70A

sub27060-75150

27020EBOLT(FOR ALTERNATOR)

main90105-10101i3VZE,5VZFE..VCK1#,2#199208

main90105-10221i3RZFE..RCK10199310

27039COVER, ALTERNATOR REAR END

main27039-16380i5VZFE..VCK11,21199701-199703

main27039-67100i5VZFE..VCK11,21199703-199704

main27039-73020i3RZFE,3VZE,5VZFE..RCK10,VCK1#,2#199208-199704

sub27039-16380

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-43060i3RZFE..RCK10199310-199411

sub27310-75040

main27310-62120i5VZFE..VCK11,21199408-199608

main27310-62130i5VZFE..VCK11,21199608-199703

main27310-62160i5VZFE..VCK11,21199703

main27310-65010i3VZE..VCK10,20199208-199408

main27310-75040i3RZFE..RCK10199411-199608

main27310-75150i3RZFE..RCK10199608-199704

main27310-75160i3RZFE..RCK10199704

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10159i3RZFE,5VZFE..RCK10,VCK11,21199703-199704

sub90099-10199

main90099-10178i3RZFE,3VZE,5VZFE..RCK10,VCK1#,2#199208-199704

27312PLATE, RETAINER

main27312-70200i3RZFE,3VZE,5VZFE..RCK10,VCK1#,2#199208-199704

main27312-72100i5VZFE..VCK11,21199703-199704

27330ROTOR ASSY, ALTERNATOR

main27330-64570i3RZFE,5VZFE..RCK10,VCK11,21199608-199704

main27330-67100i5VZFE..VCK11,21199703-199704

main27330-72101i3RZFE,3VZE,5VZFE..RCK10,VCK1#,2#199208-199608

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i3RZFE,3VZE,5VZFE..RCK10,VCK1#,2#199208-199704

main90099-10216i5VZFE..VCK11,21199703-199704

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-13360i3RZFE..RCK10199701-199704

main27357-63020i3RZFE,3VZE,5VZFE..RCK10,VCK1#,2#199208-199608

main27357-63060i3RZFE,5VZFE..RCK10,VCK11,21199608-199703

main27357-67100i5VZFE..VCK11,21199703-199704

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16180i3RZFE..RCK10199310-199601

sub27359-16181

sub27384-16380

main27359-16181i3RZFE..RCK10199601-199701

main27359-16182i3RZFE..RCK10199701-199704

main27359-62160i5VZFE..VCK11,21199703

main27359-65010i3VZE,5VZFE..VCK1#,2#199208-199601

sub27359-65011

sub27384-16380

main27359-65011i5VZFE..VCK11,21199601-199703

main27359-75160i3RZFE..RCK10199704

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i3RZFE,3VZE,5VZFE..RCK10,VCK1#,2#199208

27371BRUSH, ALTERNATOR

main27371-70300i3RZFE,3VZE,5VZFE..RCK10,VCK1#,2#199208

27372SPRING, ALTERNATOR BRUSH

main27372-63020i3RZFE,3VZE,5VZFE..RCK10,VCK1#,2#199208

sub27372-87501

27387INSULATOR, TERMINAL

main27387-70170i3RZFE,3VZE,5VZFE..RCK10,VCK1#,2#199208-199709

main27387-70171i3RZFE,5VZFE..RCK10,VCK11,21199709

27411PULLEY, ALTERNATOR

main27411-16150i3RZFE..RCK10199608

main27411-16180i3RZFE..RCK10199310-199608

main27411-65010i3VZE..VCK10,20199208-199408

main27411-70200i5VZFE..VCK11,21199408

27443COVER, ALTERNATOR BEARING

main27443-63020i3RZFE,3VZE,5VZFE..RCK10,VCK1#,2#199208

27700AREGULATOR ASSY, GENERATOR

main27700-50030i5VZFE..VCK11,21199608

main27700-62020i5VZFE..VCK11,21199408-199608

sub27700-35040

main27700-65010i3VZE..VCK10,20199208-199408

sub27700-35040

main27700-66040i3RZFE..RCK10199310-199608

sub27700-75020

main27700-75020i3RZFE..RCK10199608

2738416380WASHER

main27384-16380

2738963020INSULATOR, TERMINAL

main27389-63020

9009900197

main90099-00197

9009900268

main90099-00268

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9017906158

main90179-06158

9331914025

main93319-14025

27 parts on this diagram · 2 diagrams in section
