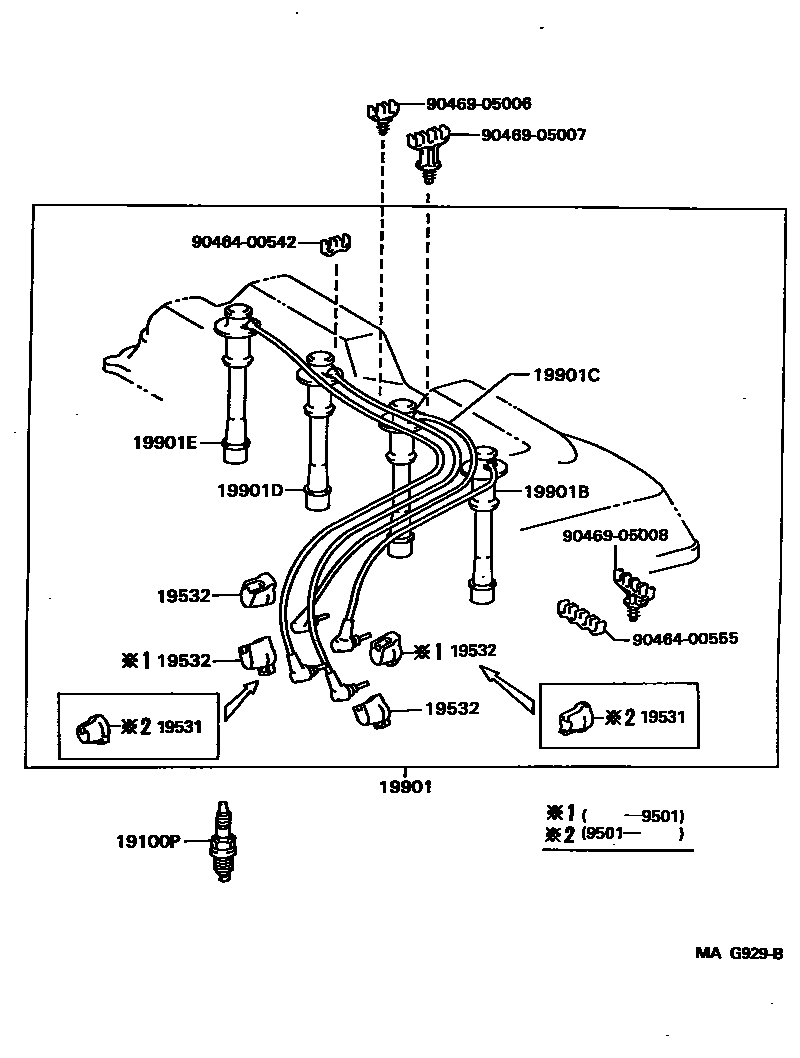

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1

19100PPLUG, SPARK

main90919-01176i3VZE..VCK10,20199208-199408

K16R-U

main90919-01192i5VZFE..VCK11,21199408

K16TR11

19531HOLDER, RESISTIVE CORD, NO.1

main19531-74010i3RZFE..RCK10199501-199708

main19531-74020i3VZE..VCK10,20199208-199408

main19539-74050i3RZFE..RCK10199708

19532HOLDER, RESISTIVE CODE, NO.2

main19532-46010i3VZE..VCK10,20199208-199708

19901CORD SET, COIL & SPARK, W/RESISTIVE

main19037-62010i5VZFE..VCK11,21199408

sub19037-62050

main19037-75010i3RZFE..RCK10199310-199708

main90919-21556i3VZE..VCK10,20199208-199408

main90919-22387i3RZFE..RCK10199708

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15276i3VZE..VCK10,20199208-199408

main90919-15384i3RZFE..RCK10199310-199708

main90919-15417i5VZFE..VCK11,21199408

sub90919-15551

main90919-15474i3RZFE..RCK10199708

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15277i3VZE..VCK10,20199208-199408

main90919-15385i3RZFE..RCK10199310-199708

main90919-15418i5VZFE..VCK11,21199408

sub90919-15552

main90919-15475i3RZFE..RCK10199708

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15278i3VZE..VCK10,20199208-199408

main90919-15386i3RZFE..RCK10199310-199708

main90919-15419i5VZFE..VCK11,21199408

sub90919-15553

main90919-15476i3RZFE..RCK10199708

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15279i3VZE..VCK10,20199208-199408

main90919-15387i3RZFE..RCK10199310-199708

main90919-15477i3RZFE..RCK10199708

9046400542

main90464-00542

9046400555

main90464-00555

9046905006

main90469-05006

9046905007

main90469-05007

9046905008

main90469-05008

13 parts on this diagram · 4 diagrams in section
