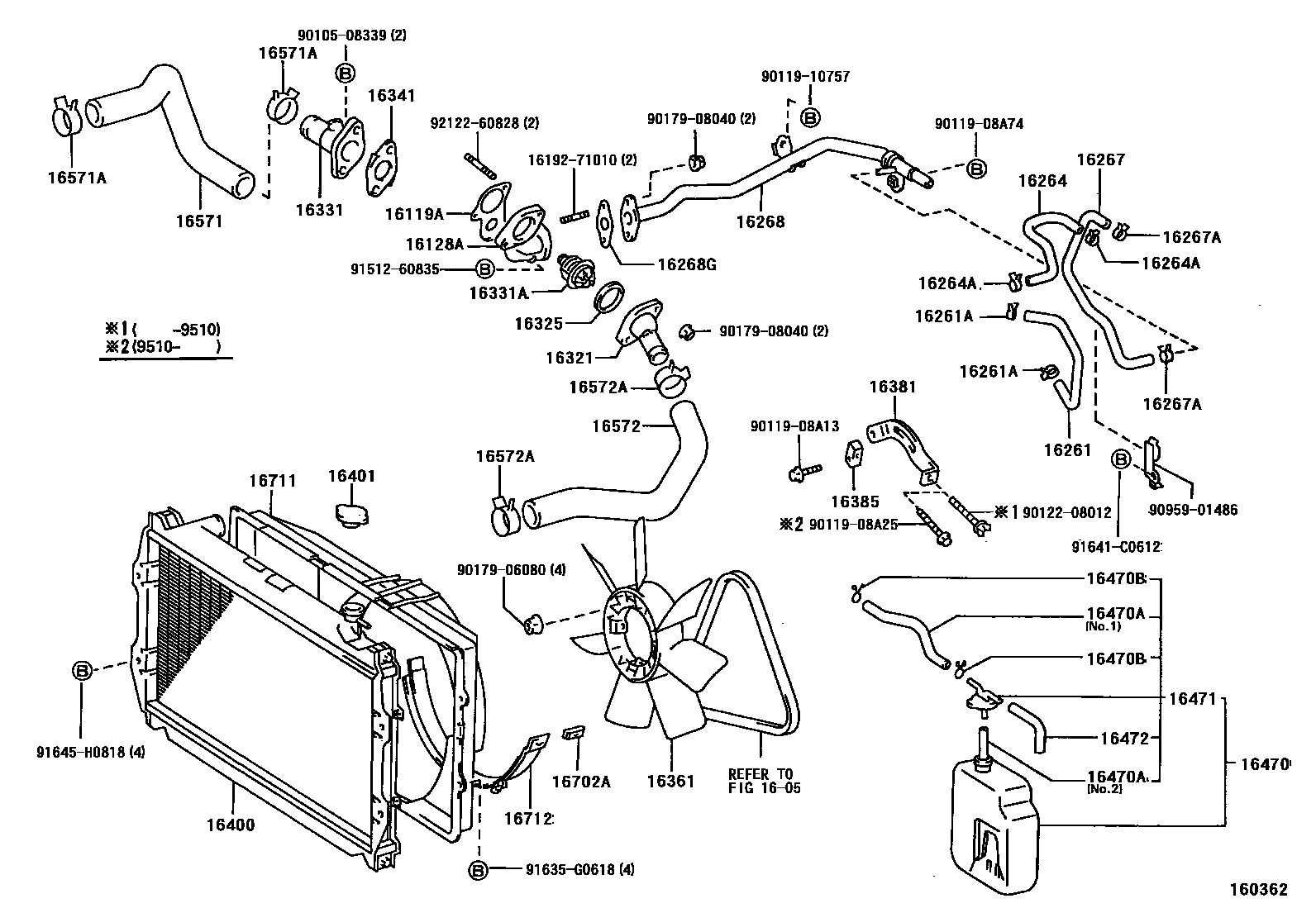

RADIATOR & WATER OUTLET
1605
16119AGASKET, THERMOSTAT GUIDE
16128APLATE, WATER PUMP THERMOSTAT GUIDE
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
sub96135-51300
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
sub96135-51300
16268GGASKET(FOR WATER BY-PASS PIPE)
16321INLET, WATER
16325GASKET, WATER INLET HOUSING, NO.1
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95
*WAX 82-95
16385SLIDER, FAN BELT ADJUSTING
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
NO.1
L=600(*H,L=220),NO.2
W(AIR CONDITIONER...DOP)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-37005
16702SHROUD SUB-ASSY, FAN, NO.2
16702ACLIP(FOR FAN SHROUD NO.2)
16711SHROUD, FAN
1619271010
main16192-71010
9010508339
main90105-08339
9011908A13
main90119-08A13
9011908A25
main90119-08A25
9011908A74
main90119-08A74
9011910757
main90119-10757
9012208012
main90122-08012
9017906080
main90179-06080
9017908040
main90179-08040
9095901486
main90959-01486
9151260835
main91512-60835
91635G0618
main91635-G0618
91641C0612
main91641-C0612
91645H0818
main91645-H0818
9212260828
main92122-60828
49 parts on this diagram · 7 diagrams in section
