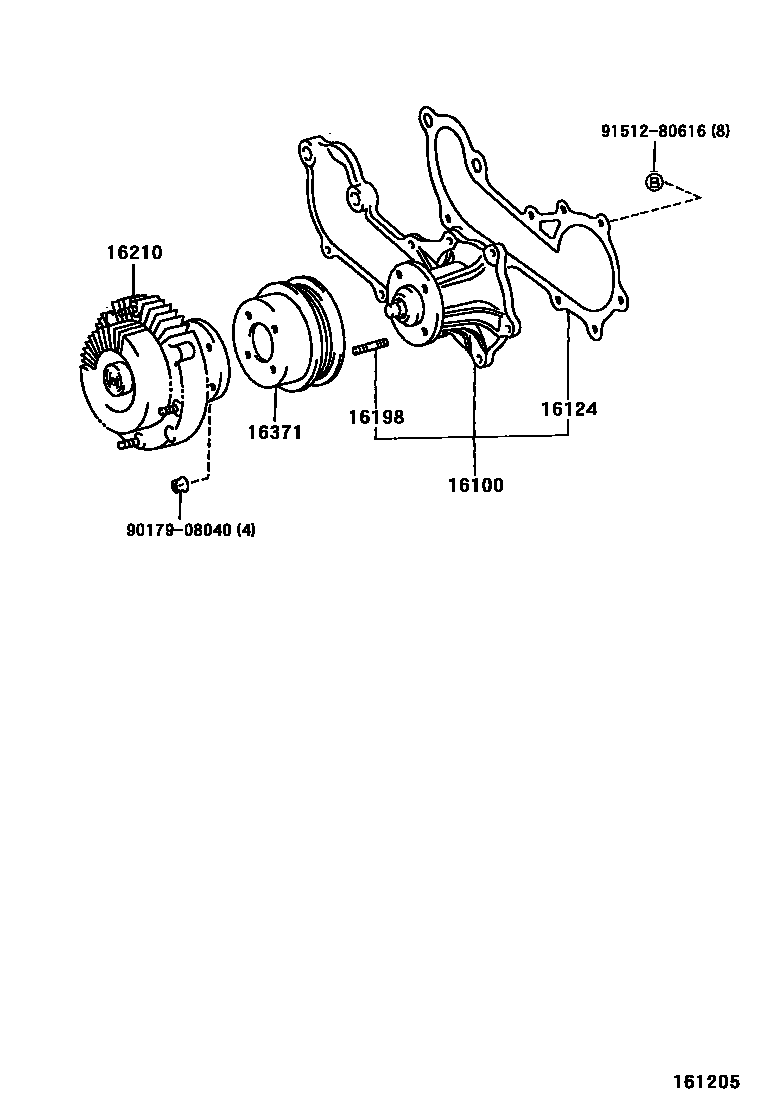

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-69345i3VZE..VCK10,20199208-199408

sub16100-69485

main16100-69395i5VZFE..VCK21;5VZFE..VCK11..MTM199408

sub16100-69396

main16100-69405i5VZFE..VCK11..ATM199408

sub16100-69406

main16100-79245i3RZFE..RCK10199310-199501

sub16100-79445

main16100-79255i3RZFE..RCK10199501-199807

sub16100-79445

16124GASKET, WATER PUMP COVER

main16124-75020i3RZFE..RCK10199310-199501

main16124-75030i3RZFE..RCK10199501-199807

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main92122-60818i3RZFE..RCK10199310-199807

16210COUPLING ASSY, FLUID

main16210-62010i5VZFE..VCK11,21199408-199511

sub16210-62011

main16210-62011i5VZFE..VCK11,21199511

main16210-65020i3VZE..VCK10,20199208-199308

main16210-65030i3VZE..VCK10,20199308-199408

main16210-75040i3RZFE..RCK10199310-199704

sub16210-75060

main16210-75060i3RZFE..RCK10199704-199807

16371PULLEY, FAN

main16371-62010i5VZFE..VCK11,21199408

main16371-65010i3VZE..VCK10,20199208-199408

main16371-75030i3RZFE..RCK10199310-199807

9017908040

main90179-08040

9151280616

main91512-80616

7 parts on this diagram · 3 diagrams in section
