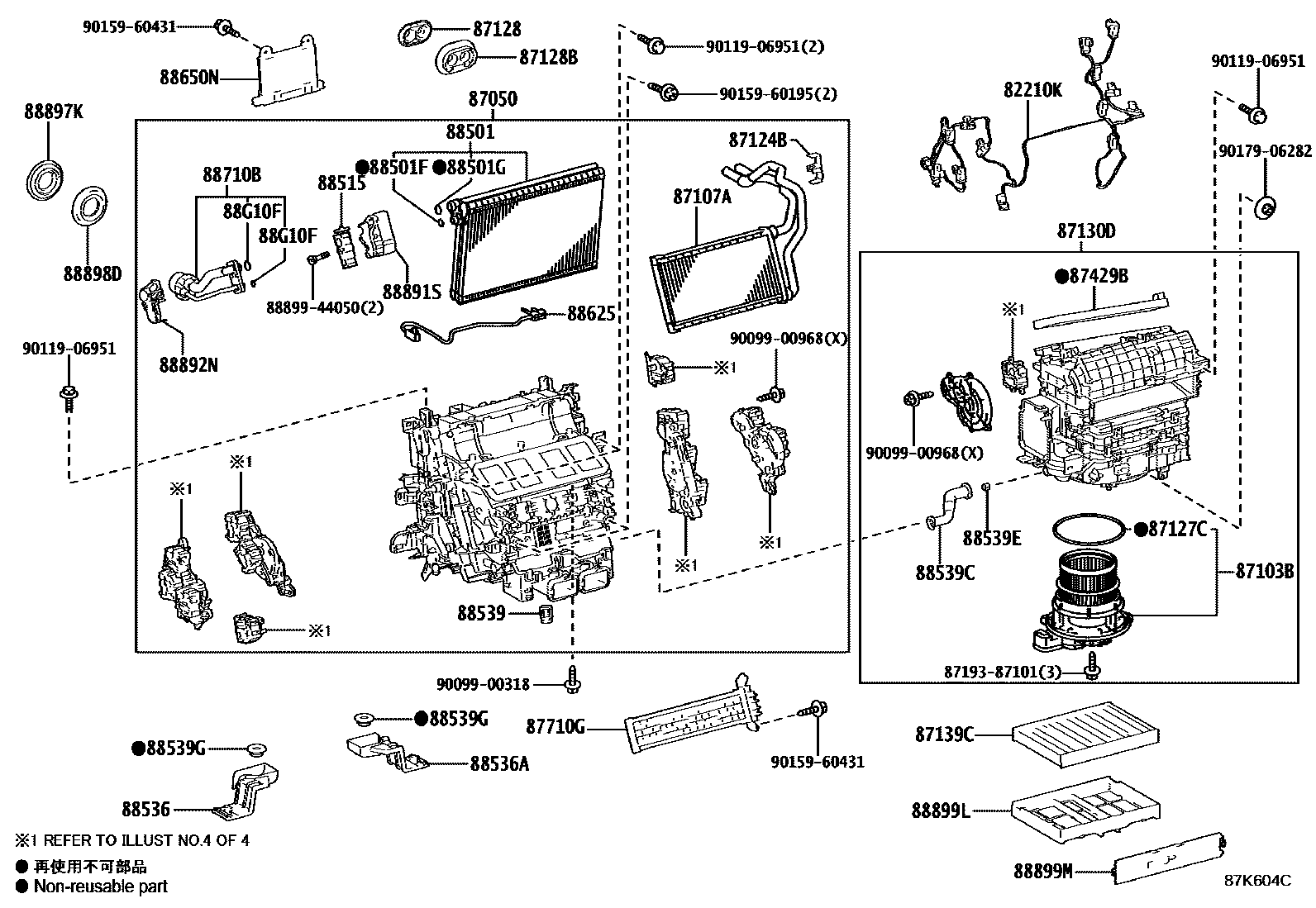

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
COOL BOX-WITH
MEXICO SPEC
KOREA SPEC
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87124BCLAMP, HEATER
87127CPACKING, BLOWER MOTOR SUB-ASSY, NO.1
87128GROMMET, HEATER
87128BGROMMET, HEATER, NO.2
87130DBLOWER ASSY
87139CFILTER, CLEAN AIR
DEODORANT FILTER
POLLEN FILTER
MICRO DUST FILTER
87429BPACKING, COOLER UNIT, NO.1
87710GQUICK HEATER ASSY
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
ID=10.8,OD=15.6
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
ID=13.4,OD=18.2
88515VALVE, COOLER EXPANSION
88536BRACKET, COOLING UNIT, NO.1
88536ABRACKET, COOLING UNIT, NO.2
88539HOSE, COOLER UNIT DRAIN, NO.1
88539CHOSE, COOLER UNIT DRAIN, NO.2
88539EHOSE, COOLER UNIT DRAIN, NO.3
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
KOREA SPEC
88710BTUBE ASSY, AIR CONDITIONER
KOREA SPEC
MEXICO SPEC
COOL BOX-WITH
88891SCOVER, COOLER, NO.1
88892NCOVER, COOLER, NO.2
88897KGROMMET, (FOR COOLER PIPE)
88898DGROMMET
88899LPARTS, COOLING UNIT
88899MPLATE, COVER(FOR AIR FILTER)
88G10FRING, O, NO.3 (FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
ID=13.4,OD=18.2
8719387101
main87193-87101
8889944050COVER, EVAPORATOR
main88899-44050
9009900318
main90099-00318
9009900968
main90099-00968
9011906951
main90119-06951
9015960195
main90159-60195
9015960431
main90159-60431
9017906282
main90179-06282
40 parts on this diagram · 6 diagrams in section
