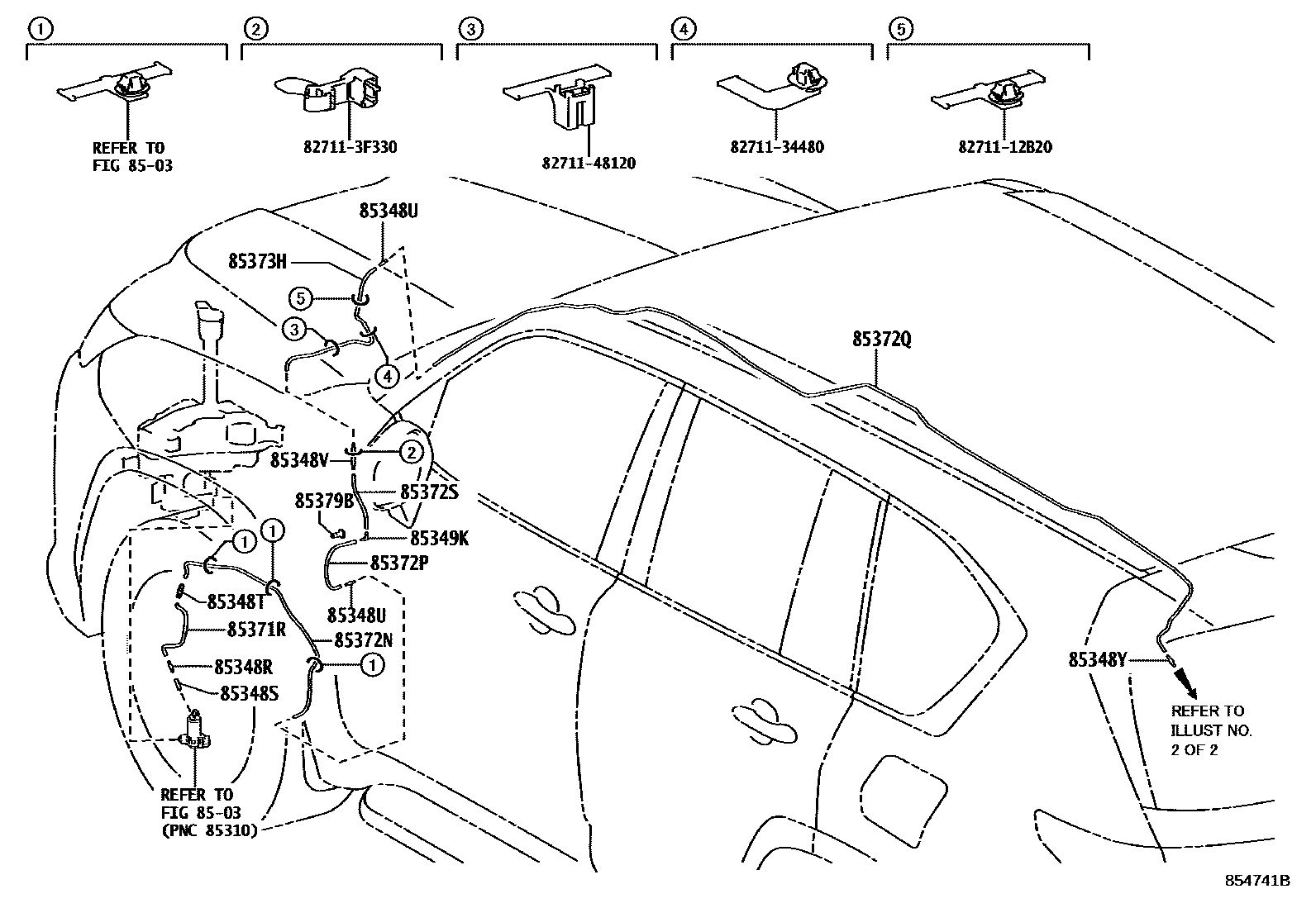

REAR WASHER

0001 1 0002 1

8503

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iVJA310,VJH310202112-202411

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iVJA310,VJH310202112-202411

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iVJA310,VJH310202112-202411

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122iVJA310,VJH310202112-202411

85348VJOINT, REAR WASHER HOSE, NO.4

main85349-32150iVJA310,VJH310202112-202411

85348YJOINT, REAR WASHER HOSE, NO.5

main85349-89122iVJA310,VJH310202112-202411

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iVJA310,VJH310202112-202411

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-62085iVJA310,VJH310202112-202411

L=340

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-62251iVJA310,VJH310202112-202411

L=950

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-62263iVJA310,VJH310202112-202411

L=210

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-62259iVJA310,VJH310202112-202411

L=3270

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90099-62263iVJA310,VJH310202112-202411

L=200

85373HHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.10

main90099-62263iVJA310,VJH310202112-202411

L=580

85379BGROMMET, WASHER, A

main85379-12850iVJA310,VJH310202112-202411

8271112B20WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B20

8271134480WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34480

827113F330WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F330

8271148120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48120

19 parts on this diagram · 2 diagrams in section
