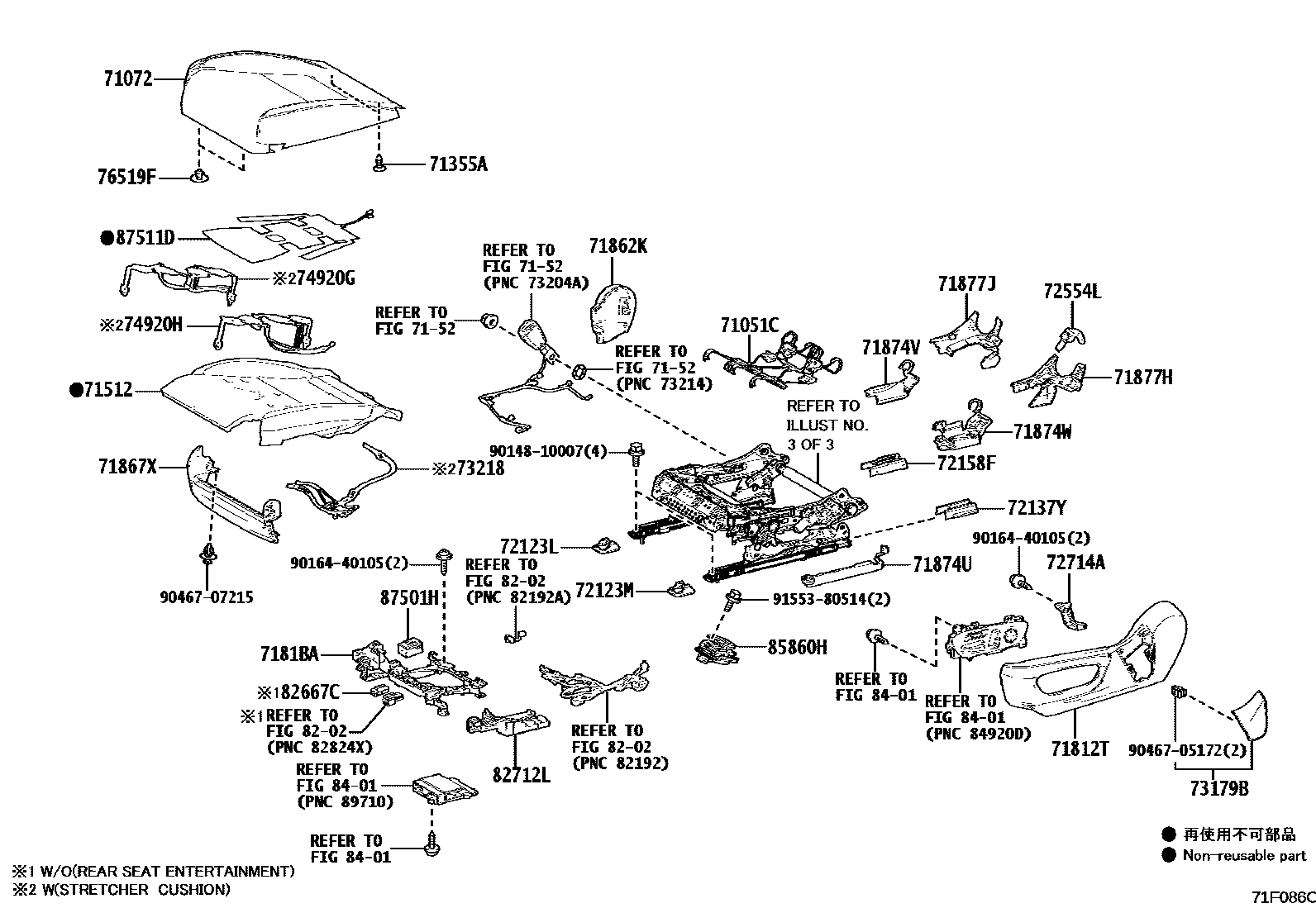

FRONT SEAT & SEAT TRACK

0001 1LH SEAT(SEAT CUSHION) 0002 1LH SEAT(SEAT BACK) 0003 1RH SEAT(SEAT CUSHION) 0004 1RH SEAT(SEAT BACK) 0005 1RH SEAT(SEAT CUSHION),VIP PAC0006 1RH SEAT(SEAT BACK),VIP PACKAG0007 1LH SEAT(SEAT ADJUSTER) 0008 1RH SEAT(SEAT ADJUSTER)

71051CSPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-47090iVJA310,VJH310202112-202411

71072COVER SUB-ASSY, FRONT SEAT CUSHION, LH

main71072-60R00-A0iVJA310202112-202411

WHITE,TRIM0#

main71072-60R00-C1iVJA310,VJH310202112-202411

BLACK,TRIM2#

main71072-60R00-D0iVJA310,VJH310202112-202411

CRIMSON,TRIM3#

main71072-60R00-E0iVJA310202112-202411

HAZEL,TRIM4#

71355ACLIP

main90467-05045-22iVJA310202112-202411

BLACK

sub90467-05045

71512PAD, FRONT SEAT CUSHION, LH

main71512-60550iVJA310,VJH310202112-202411

7152

71812TSHIELD, FRONT SEAT CUSHION, LH

main71812-60410-C0iVJA310,VJH310202112-202411

BLACK,TRIM0#,2#,3#,4#

7181BAHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-42010iVJA310,VJH310202112-202411

71862KSHIELD, FRONT SEAT CUSHION, INNER LH

main71862-47090-C1iVJA310,VJH310202112-202411

BLACK,TRIM0#,2#,3#,4#

sub71862-47090

71867XSHIELD, FRONT SEAT CUSHION, FRONT LH

main71868-60080-C0iVJA310,VJH310202112-202411

BLACK,TRIM0#,2#,3#,4#

71874USHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-60130iVJA310,VJH310202112-202411

71874VSHIELD, FRONT SEAT CUSHION, LOWER LH, OUTER

main71874-42050iVJA310,VJH310202112-202411

71874WSHIELD, FRONT SEAT CUSHION, LOWER LH, INNER

main71874-60150iVJA310,VJH310202112-202411

71877HCOVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)

main71876-60330-C0iVJA310,VJH310202112-202411

BLACK,TRIM0#,2#,3#,4#

71877JCOVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT)

main71876-42090-C0iVJA310,VJH310202112-202411

BLACK,TRIM0#,2#,3#,4#

72123LCOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72123-10100iVJA310,VJH310202112-202411

72123MCOVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72123-10100iVJA310,VJH310202112-202411

72137YCOVER, SEAT TRACK BRACKET, OUTER REAR LH

main72137-60210-C0iVJA310,VJH310202112-202411

BLACK,TRIM0#,2#,3#,4#

72158FCOVER, SEAT TRACK BRACKET, INNER REAR LH

main72157-60230-C0iVJA310,VJH310202112-202411

BLACK,TRIM0#,2#,3#,4#

72554LPROTECTOR, RECLINING COVER, LH

main72554-60020iVJA310,VJH310202112-202411

72714ABRACKET, SEAT ADJUSTER SHIELD CLAMP, LH

main72714-78010iVJA310,VJH310202112-202411

73179BCAP, SEAT BELT ANCHOR COVER, LH

main73179-60010-C0iVJA310,VJH310202112-202411

BLACK,TRIM0#,2#,3#,4#

73218TUBE, ADJUSTER, LH

main73218-60020

74920GCUSHION ASSY, MAIN STRETCHER, LH NO.1(FOR SEAT CUSHION)

74920HCUSHION ASSY, MAIN STRETCHER, LH NO.2(FOR SEAT CUSHION)

76519FCLIP, FRONT SEAT CUSHION COVER

main76519-42010iVJA310,VJH310202112-202411

8202

82667CHOLDER, CONNECTOR

main82666-28B50iVJA310,VJH310202112-202411

82712LSUPPORT, WIRING HARNESS

main82712-60580iVJA310,VJH310202112-202411

RH SEAT

main82712-60590iVJA310,VJH310202112-202411

LH SEAT

8401

85860HBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH

87501HCONTROL SUB-ASSY, SEAT HEATER, LH

main87501-33010iVJA310,VJH310202112-202411

87511DHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-60740iVJA310,VJH310202112-202411

9014810007

main90148-10007

9016440105

main90164-40105

9046705172

main90467-05172

9046707215

main90467-07215

9155380514

main91553-80514

37 parts on this diagram · 8 diagrams in section
