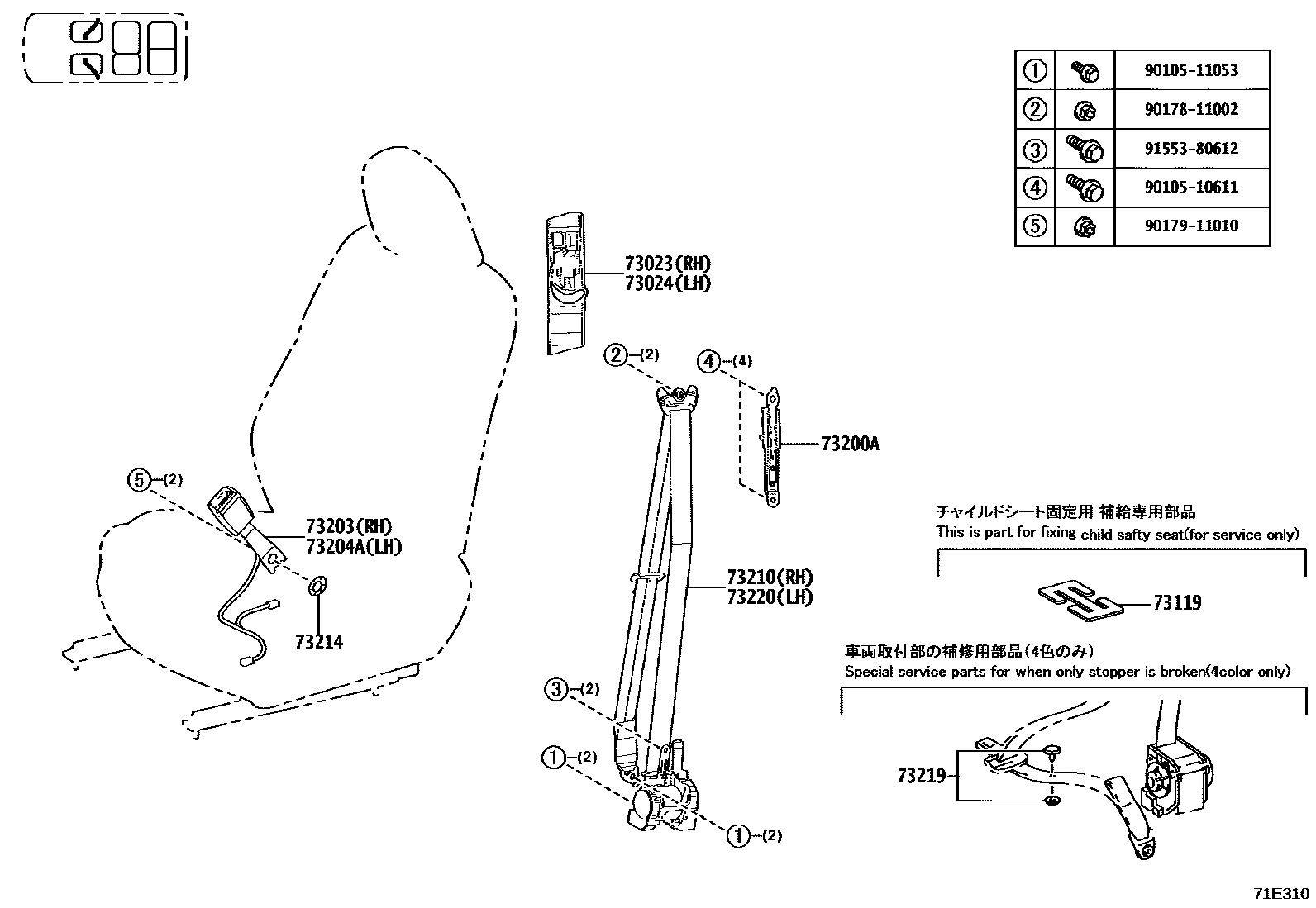

SEAT BELT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT(FOR 7 SEATER) 0003 1REAR NO.1 SEAT(FOR 4 SEATER) 0004 1REAR NO.2 SEAT 0005 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12030-C0iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12020-C0iVJA310,VJH310202112-202411

BLACK,TRIM0#,2#,3#,4#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iVJA310202112-202411

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-42020iVJA310202112-202411

73203BELT SET, FRONT SEAT, RH

main73203-60060-C0iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

73204ABELT SET, FRONT SEAT, LH

main73204-60040-C0iVJA310,VJH310202112-202411

BLACK,TRIM0#,2#,3#,4#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-60A30-C0iVJA310202112-202301

BLACK,TRIM0#,2#,3#,4#

sub73210-60A31

main73210-60A31-C0iVJA310,VJH310202301-202411

BLACK,TRIM0#,2#,3#,4#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iVJA310,VJH310202112-202411

73219STOPPER, TONGUE PLATE

main73219-02010iVJA310,VJH310202112-202411

BLACK

main73219-02020iVJA310202112-202411

GRAY

main73219-02030iVJA310,VJH310202112-202411

BEIGE

main73219-50010iVJA310,VJH310202112-202411

MELLOW WHITE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-60800-C0iVJA310202112-202207

BLACK,TRIM0#,2#,3#,4#

sub73220-60801

main73220-60801-C0iVJA310202208-202301

BLACK,TRIM0#,2#,3#,4#

sub73220-60802

main73220-60802-C0iVJA310,VJH310202301-202411

BLACK,TRIM0#,2#,3#,4#

9010510611

main90105-10611

9010511053

main90105-11053

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

15 parts on this diagram · 5 diagrams in section
