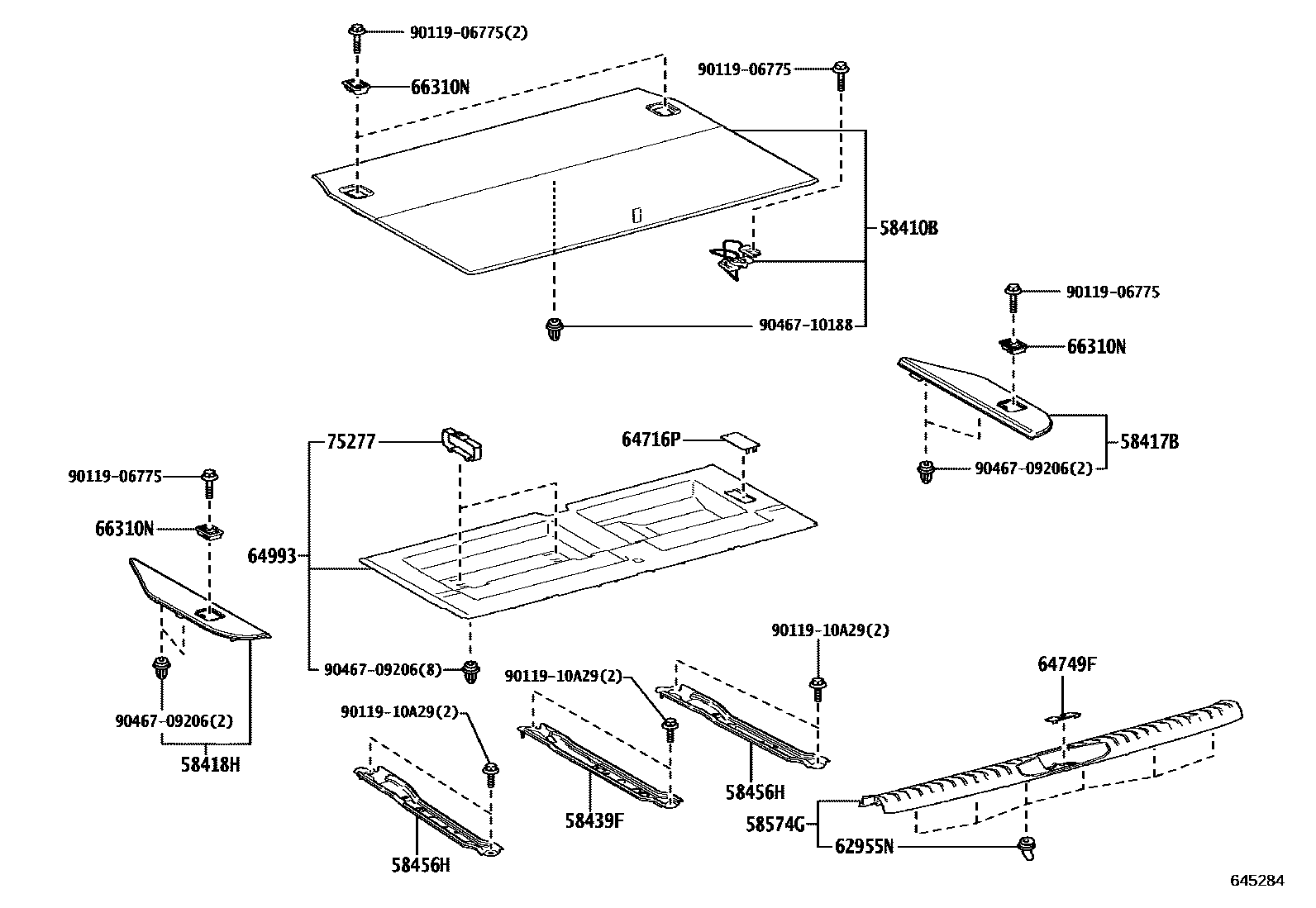

DECK BOARD & DECK TRIM COVER

0001 1W/O(REAR NO.2 SEAT) 0002 1W/O(REAR NO.2 SEAT) 0003 1W(REAR NO.2 SEAT) 0004 1W/O(REAR NO.2 SEAT) 0005 1W(REAR NO.2 SEAT)

58410BBOARD ASSY, DECK

main58410-60040-C2iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

main58410-60130-C0iVJH310202411

BLACK,TRIM0#,2#,3#,4#

58417BBOARD, REAR FLOOR, REAR RH

main58417-60080-C2iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

58418HBOARD, REAR FLOOR, REAR LH

main58418-60040-C2iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

58439FREINFORCEMENT, DECK BOARD BRACKET

58456HBRACKET, DECK FLOOR NO.2

58574GPLATE, REAR FLOOR MAT SUPPORT, REAR

main58574-60160-C0iVJA310202112-202411

BLACK,TRIM0#,2#,3#,4#

main58574-60200-C0iVJH310202411

BLACK,TRIM0#,2#,3#,4#

62955NRETAINER, REAR FLOOR MAT SUPPORT PLATE, NO.1

main62955-60060iVJA310,VJH310202112-202411

64716PCOVER, DECK TRIM, REAR

64749FCOVER, BACK DOOR STRIKER

main64749-60010-C0iVJA310,VJH310202112-202411

BLACK,TRIM0#,2#,3#,4#

64993BOX, DECK FLOOR, REAR

main64993-60030-C0iVJH310202411

BLACK,TRIM0#,2#,3#,4#

66310NHOOK ASSY, ROPE

main66310-30011-C1iVJH310202411

"EXECUTIVE"&REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#,4#

sub66310-30011

main66310-30011-C1iVJA310,VJH310202112-202411

BLACK,TRIM0#,2#,3#,4#

sub66310-30011

main66310-30011-C1iVJA310,VJH310202411

BASE PACKAGE,BLACK,TRIM0#,2#,3#,4#

sub66310-30011

main66310-30011-C1iVJA310,VJH310202411

OVER TRAIL PACKAGE&REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#,4#

sub66310-30011

main66310-30011-C1iVJA310202112-202411

REAR NO.2 SEAT-WITHOUT,BLACK,TRIM0#,2#,3#,4#

sub66310-30011

75277BAND, TOOL, NO.1

main64279-60021iVJA310202411

REAR NO.2 SEAT-WITHOUT

main64279-60021iVJA310202112-202411

main64279-60040iVJH310202411

9011906775

main90119-06775

9011910A29

main90119-10A29

9046709206

main90467-09206

9046710188

main90467-10188

16 parts on this diagram · 5 diagrams in section
