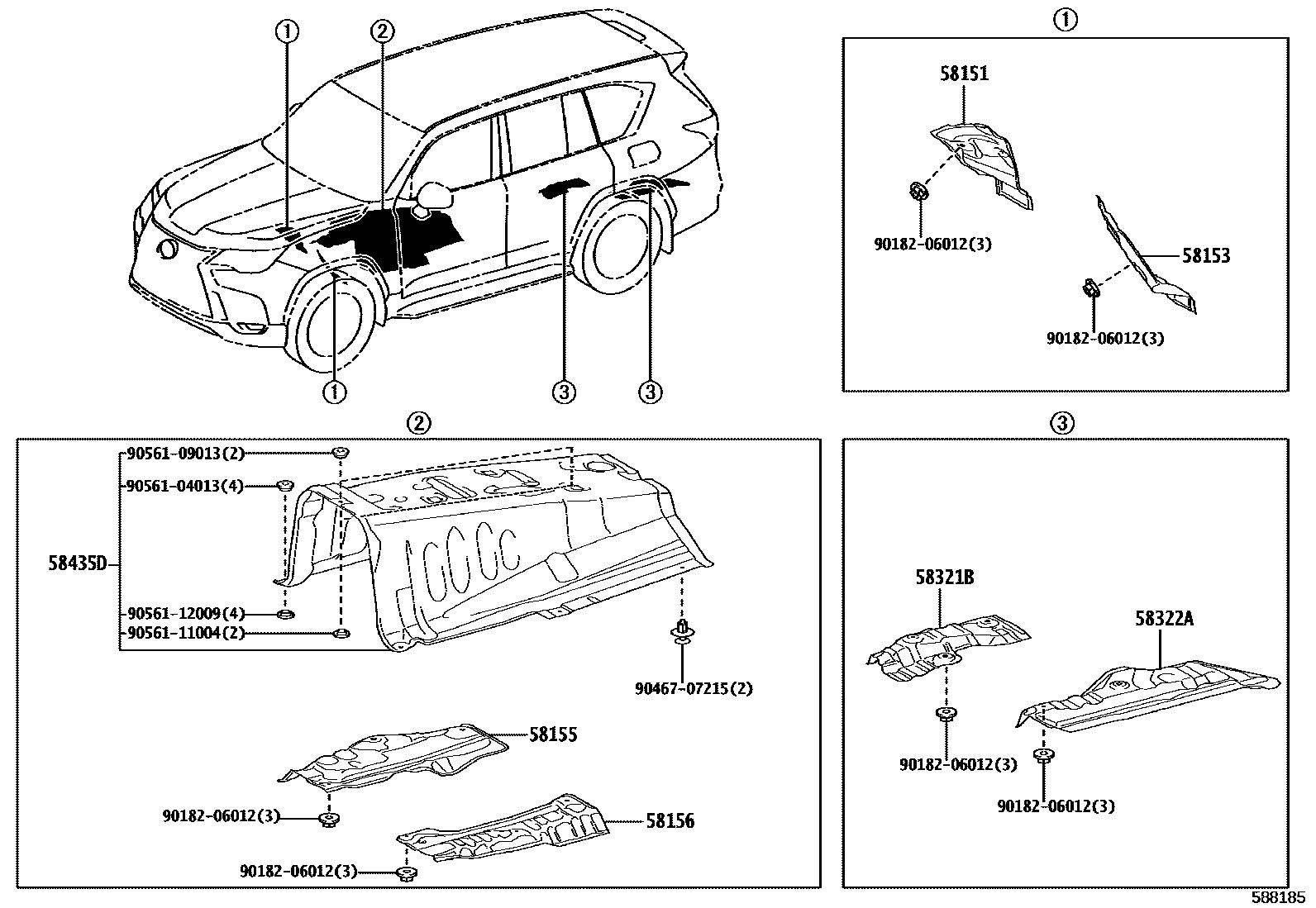

FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main5814A-60010iVJA310,VJH310202411

main58151-60150iVJA310202112-202411

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main5814B-60020iVJA310,VJH310202411

main58153-60140iVJA310202112-202411

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main5814C-60010iVJH310202411

main58155-60110iVJA310202112-202411

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main5814D-60010iVJA310,VJH310202411

main58156-60080iVJA310202112-202411

sub5814D-60010

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-60081iVJA310202112-202411

58322AINSULATOR, REAR FLOOR HEAT, REAR

main58322-60020iVJA310202112-202411

main58322-60040iVJH310202411

58435DSILENCER, FRONT FLOOR, CENTER

main55212-60010iVJH310202411

main58563-60080iVJA310202112-202411

9018206012

main90182-06012

9046707215

main90467-07215

9056104013

main90561-04013

9056109013

main90561-09013

9056111004

main90561-11004

9056112009

main90561-12009

13 parts on this diagram · 2 diagrams in section
