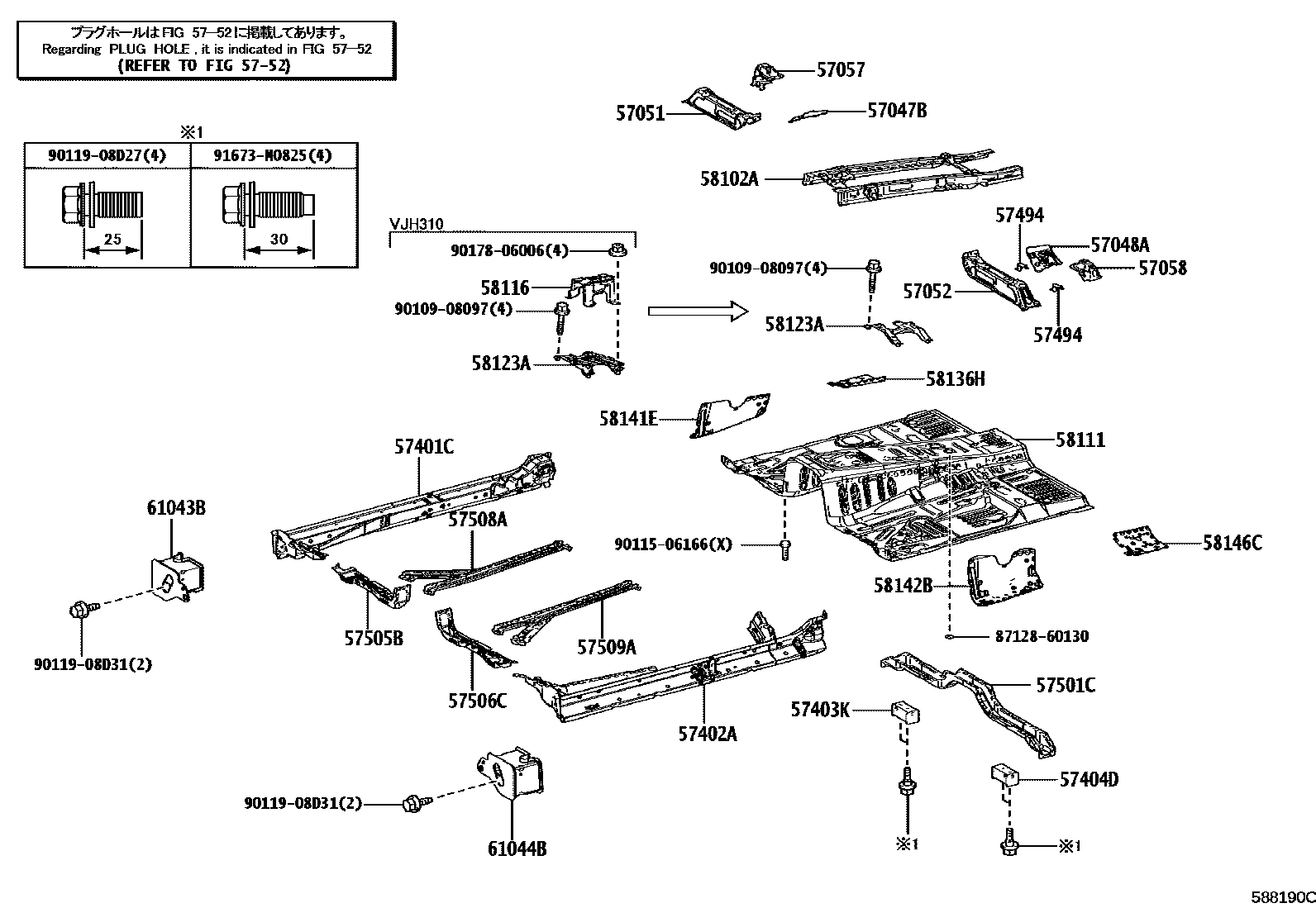

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1SIDE STEP

57047BBRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, RH

main57047-60020iVJA310202112-202411

57048ABRACKET SUB-ASSY, FLOOR HOUSING SEAT ANCHOR, LH

main57048-60020iVJA310202112-202411

57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-60080iVJA310,VJH310202411

main57051-60090iVJH310202411

"EXECUTIVE"

57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-60080iVJA310202112-202411

57057REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 RH

main57057-60010iVJA310,VJH310202112-202411

57058REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.7 LH

main57058-60010iVJA310,VJH310202112-202411

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-60150iVJA310,VJH310202112-202411

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-60160iVJA310,VJH310202112-202411

57403KMEMBER SUB-ASSY, FLOOR SIDE, INNER REAR RH

main57403-60040iVJA310,VJH310202112-202411

57404DMEMBER SUB-ASSY, FLOOR SIDE, INNER REAR LH

main57403-60040iVJA310,VJH310202112-202411

57494BRACE, FRONT FLOOR CROSS, NO.2 LH

main57494-60010iVJA310,VJH310202112-202411

57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-60020iVJA310,VJH310202112-202411

57505BREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, RH

main57505-60080iVJA310,VJH310202112-202411

57506CREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER, LH

main57506-60050iVJA310,VJH310202112-202411

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-60030iVJA310,VJH310202112-202411

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57509-60140iVJA310202112-202411

sub57509-60180

main57509-60180iVJA310,VJH310202411

5752

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-60120iVJA310202112-202411

sub58102-60140

main58102-60140iVJA310,VJH310202411

58111PAN, FRONT FLOOR

main58111-60G10iVJA310202112-202411

sub58111-60G11

sub90950-01A49

main58111-60G11iVJA310202411

main58111-60J80iVJH310202411

58116PLATE, SHIFT CABLE MOUNTING

main58116-60020iVJH310202411

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-60110iVJA310202112-202304

main58123-60111iVJA310202305-202411

main58123-60200iVJH310202411

58136HPANEL, FRONT FLOOR HOSING, REAR RH

main58136-60030iVJA310202112-202411

58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH

main58141-60010iVJA310202112-202411

58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH

main58142-60010iVJA310202112-202411

58146CPANEL, FRONT FLOOR HOSING, REAR LH

main58146-60010iVJA310,VJH310202112-202411

61043BEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH

main61043-60010iVJA310202112-202303

sub61043-60011

main61043-60011iVJA310,VJH310202304-202411

61044BEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH

main61044-60010iVJA310202112-202303

sub61044-60011

main61044-60011iVJA310,VJH310202304-202411

8712860130GROMMET, HEATER

main87128-60130

9010908097

main90109-08097

9011506166

main90115-06166

9011908D27

main90119-08D27

9011908D31

main90119-08D31

9017806006

main90178-06006

91673M0825

main91673-M0825

34 parts on this diagram · 2 diagrams in section
