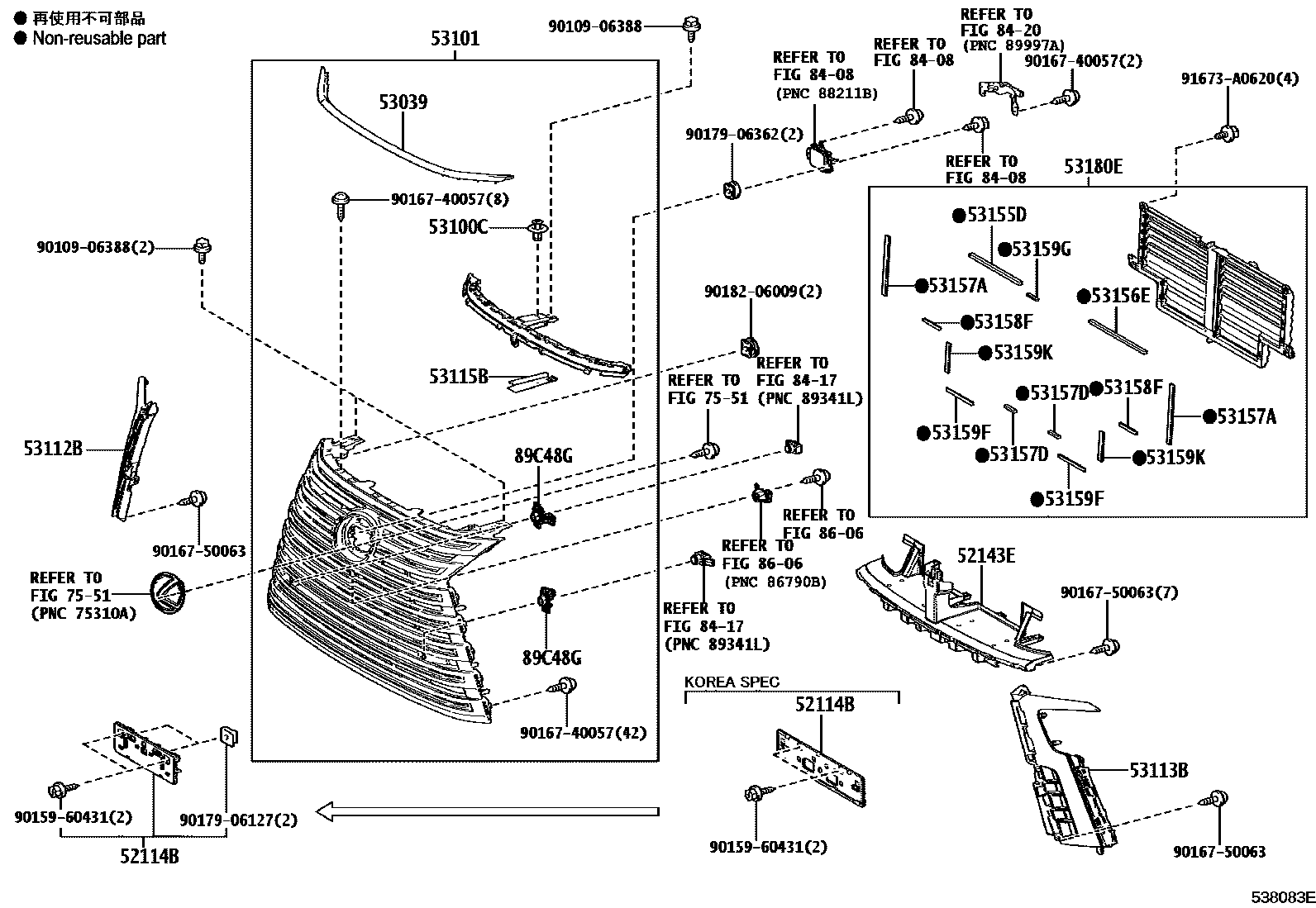

RADIATOR GRILLE
52114BBRACKET, FRONT BUMPER EXTENSION MOUNTING
TYPE C:REFER ILLUST.
52143EPLATE, FRONT ENERGY ABSORBER MOUNTING
53039SEAL, RADIATOR, UPPER
53100CCLIP, RADIATOR GRILLE
53101GRILLE SUB-ASSY, RADIATOR
NO PAINT REQ.
NO PAINT REQ.
53112BGRILLE, RADIATOR SIDE, RH
NO PAINT REQ.,F-SPORT&F-SPORT PACKAGE(ACCESSORY)
NO PAINT REQ.,F-SPORT&F-SPORT PACKAGE(ACCESSORY)&ADVANCED PARK-WITH
NO PAINT REQ.,F-SPORT&F-SPORT PACKAGE(ACCESSORY)&ADVANCED PARK-WITH(REMOTE CONTROLFUNCTION)
NO PAINT REQ.
53113BGRILLE, RADIATOR SIDE, LH
NO PAINT REQ.,F-SPORT&F-SPORT PACKAGE(ACCESSORY)&ADVANCED PARK-WITH(REMOTE CONTROLFUNCTION)
NO PAINT REQ.
NO PAINT REQ.,F-SPORT&F-SPORT PACKAGE(ACCESSORY)
NO PAINT REQ.,F-SPORT&F-SPORT PACKAGE(ACCESSORY)&ADVANCED PARK-WITH
53115BBRACKET, RADIATOR GRILLE
53155DSEAL, RADIATOR GRILLE, NO.1
53156ESEAL, RADIATOR GRILLE, NO.2
53157ASEAL, RADIATOR GRILLE, NO.3
53157DSEAL, RADIATOR GRILLE, NO.8
53158FSEAL, RADIATOR GRILLE, NO.4
53159FSEAL, RADIATOR GRILLE, NO.6
53159GSEAL, RADIATOR GRILLE, NO.7
53159KSEAL, RADIATOR GRILLE, NO.5
7551
8408
8417
8420
8606
89C48GRETAINER, ULTRASONIC SENSOR, FRONT CENTER
RH
LH
9010906388
main90109-06388
9015960431
main90159-60431
9016740057
main90167-40057
9016750063
main90167-50063
9017906127
main90179-06127
9017906362
main90179-06362
9018206009
main90182-06009
91673A0620
main91673-A0620
31 parts on this diagram · 2 diagrams in section
