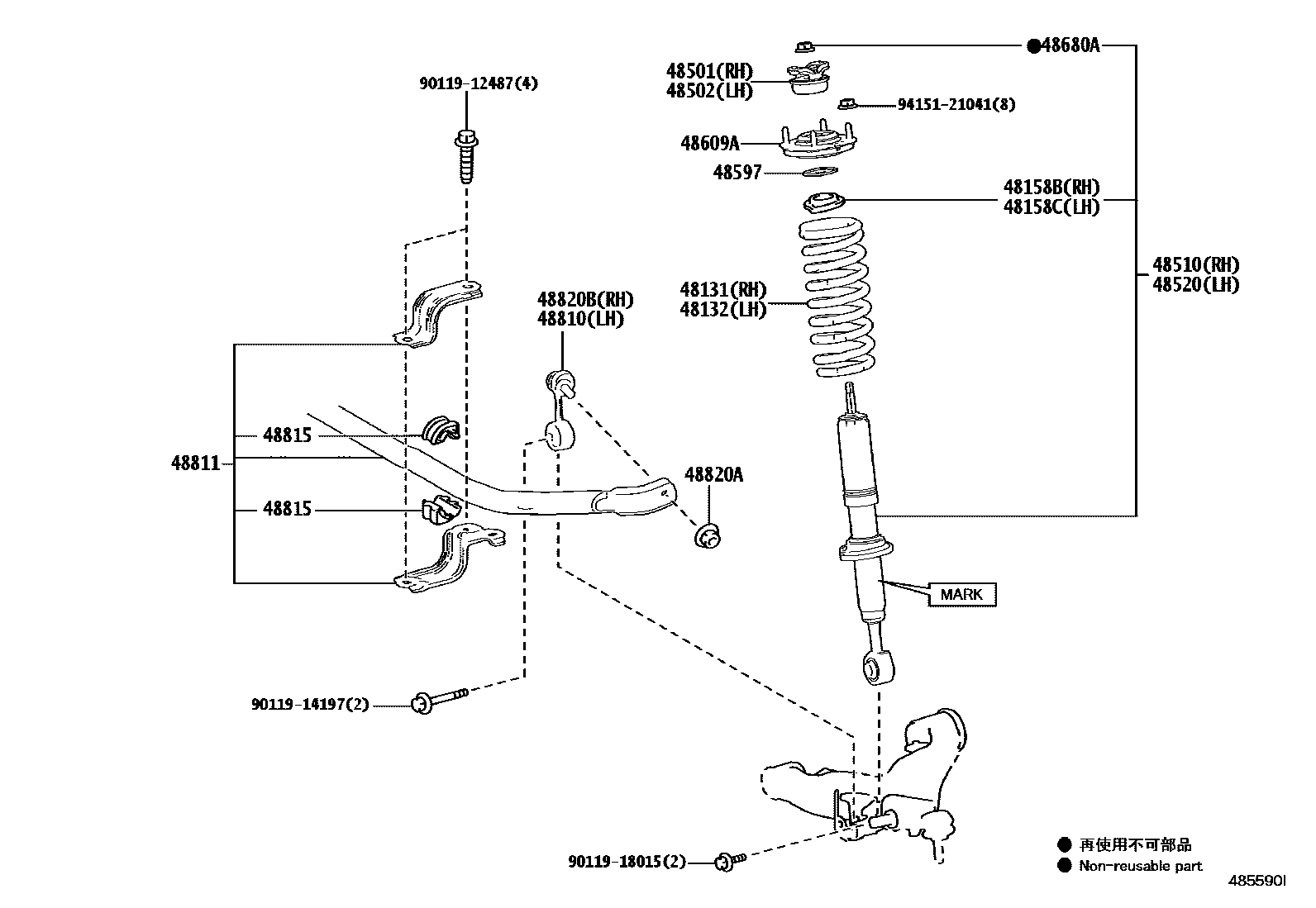

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48501BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH
48502BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-60540
MARK 48510-60520
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-60540
MARK 48510-60520
48597RETAINER, SHOCK ABSORBER CUSHION
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810LINK ASSY, FRONT STABILIZER, LH
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-60440
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
9011912487
main90119-12487
9011914197
main90119-14197
9011918015
main90119-18015
9415121041
main94151-21041
20 parts on this diagram · 2 diagrams in section
