DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060×4i202112-202310

main04423-48010×4i202310-202411

04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)

main04423-33060i202112-202310

main04423-48010i202310-202411

42601WHEEL, DISC

main42611-60G10×4supersedes 42611-60G00i202411

22X8J,#,KOREA SPEC&TIRE & DISC WHEEL-265/50R22,8J,ALUMINUM(BLACK),MACHINING,TYPE C:REFER ILLUST.

main42611-60G22×4supersedes 42611-60G00i202411

22X8J,#,TIRE & DISC WHEEL-265/50R22,8J,ALUMINUM(BLACK),MACHINING,TYPE D:REFER ILLUST.

main42611-60J00×4supersedes 42611-60G00i202112-202405

18X7.5J,#,TIRE & DISC WHEEL-265/65R18,7.5J,ALUMINUM,TYPE A:REFER ILLUST.

main42611-60J01×4i202411

TIRE & DISC WHEEL-265/70R18,7.5J,ALUMINUM,TYPE A:REFER ILLUST.

main4261A-60270×4i202411

22X8J, #,TIRE & DISC WHEEL-265/50R22,8J,ALUMINUM(CHROME PAINTED),TYPE C:REFER ILLUST.

main4261A-60282×4i202501

22X8J, #,MEXICO SPEC&TIRE & DISC WHEEL-265/50R22,8J,ALUMINUM(CHROME PAINTED),TYPED:REFER ILLUST.

main4261A-60291×4supersedes 42611-60G00i202411

22X8J, #,KOREA SPEC&TIRE & DISC WHEEL-265/50R22,8J,ALUMINUM,FOR F SPORT,TYPE E:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-60G10i202411

22X8J,#,KOREA SPEC&TIRE & DISC WHEEL-265/50R22,8J,ALUMINUM(BLACK),MACHINING,TYPE C:REFER ILLUST.

main42611-60G22supersedes 42611-60G00i202411

22X8J,#,TIRE & DISC WHEEL-265/50R22,8J,ALUMINUM(BLACK),MACHINING,TYPE D:REFER ILLUST.

main42611-60J00supersedes 42611-60G00i202112-202405

18X7.5J,#,TIRE & DISC WHEEL-265/65R18,7.5J,ALUMINUM,TYPE A:REFER ILLUST.

main42611-60J01i202411

TIRE & DISC WHEEL-265/70R18,7.5J,ALUMINUM,TYPE A:REFER ILLUST.

main4261A-60270i202411

22X8J, #,TIRE & DISC WHEEL-265/50R22,8J,ALUMINUM(CHROME PAINTED),TYPE C:REFER ILLUST.

main4261A-60282i202411

22X8J, #,KOREA SPEC&TIRE & DISC WHEEL-265/50R22,8J,ALUMINUM(CHROME PAINTED),TYPE D:REFER ILLUST.

main4261A-60291supersedes 42611-60G00i202411

22X8J, #,KOREA SPEC&TIRE & DISC WHEEL-265/50R22,8J,ALUMINUM,FOR F SPORT,TYPE E:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01122×24supersedes 90942-01121i202112-202411

TIRE & DISC WHEEL-265/65R18,7.5J,ALUMINUM

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-60710×4supersedes 42603-60700i202411

*ALU,OVER TRAIL PACKAGE,TYPE B:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-48040×4i202310-202411

main42607-48060×4i202411

main42607-53020×4i202112-202310

main42607-48070×4i202411

KOREA SPEC&TIRE & DISC WHEEL-265/65R18,7.5J,ALUMINUM

42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)

main42607-48040i202310-202411

main42607-48060i202411

main42607-53020i202112-202310

main42607-48070i202411

KOREA SPEC&TIRE & DISC WHEEL-265/65R18,7.5J,ALUMINUM

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05044×4i202112-202310

main90942-05050×4i202310-202411

42607EVALVE, TIRE PRESSURE MONITOR (FOR SPARE)

main90942-05044i202112-202310

main90942-05050i202411

4260BCOVER SUB-ASSY, WHEEL HUB

main4260B-60520i202411

42611UCAP, TIRE VALVE

main90942-05042×4i202112-202310

main90942-05048×4i202411

42611WCAP, TIRE VALVE (FOR SPARE)

main90942-05042i202112-202310

main90942-05048i202411

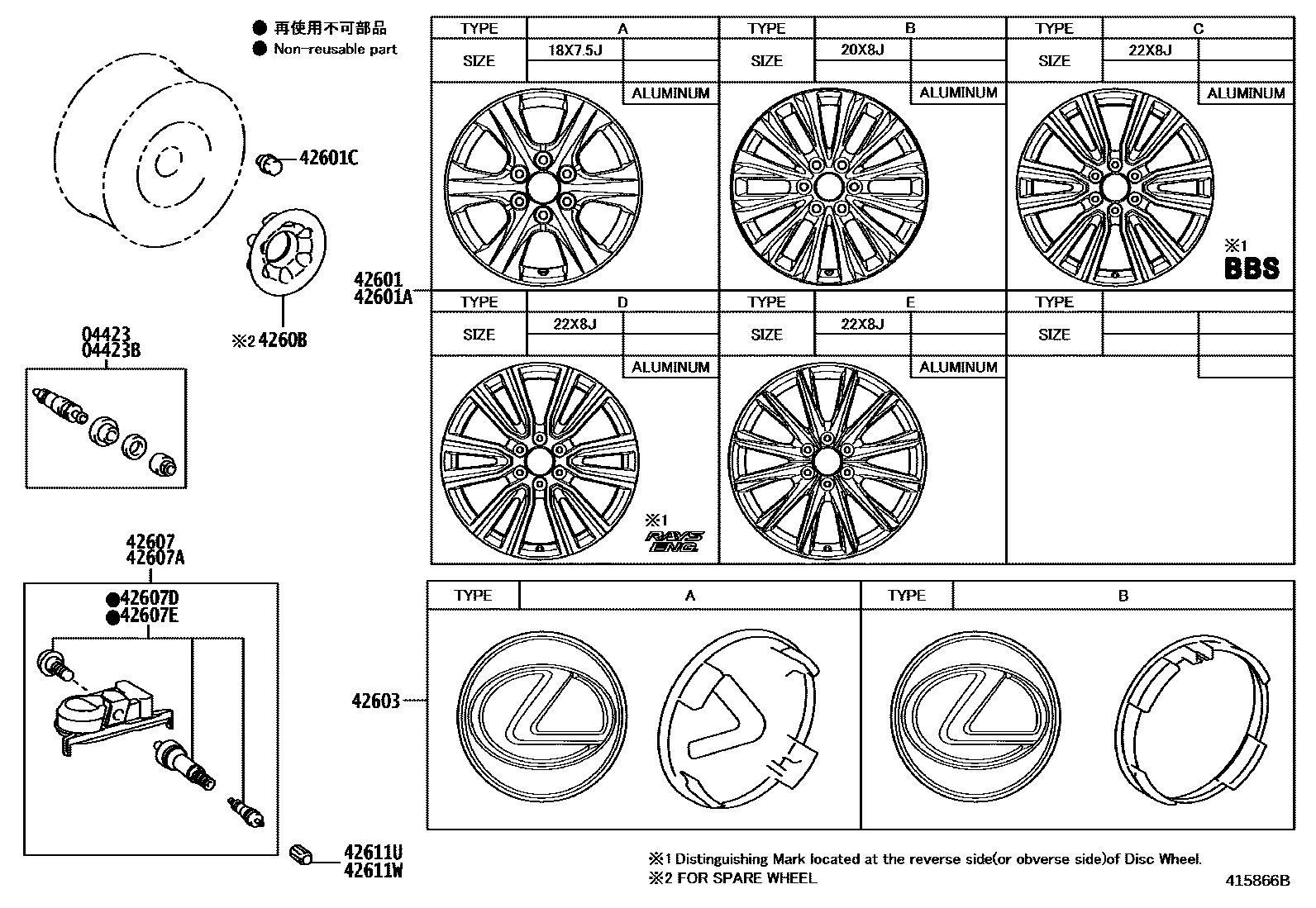

13 parts on this diagram · 1 diagram in section
